Page 2

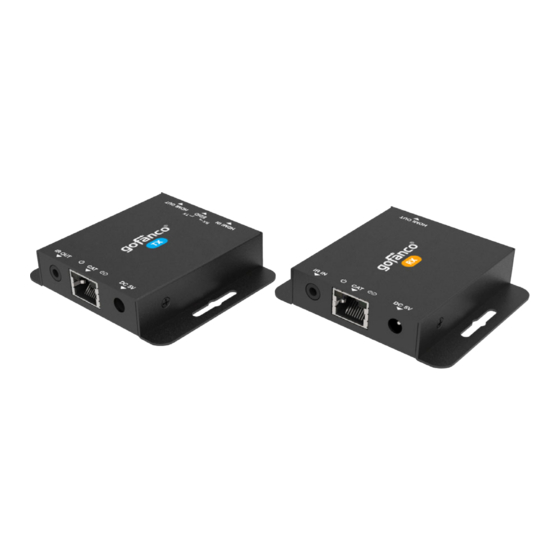

Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
Page 3
• Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •...
Page 4
Installation Requirements HDMI source HDMI display(s) HDMI cables UTP/STP CAT6/7 cable following IEEE-T568B wiring standard Features • Supports up to 4K @30Hz YUV 4:4:4. HDMI and HDCP 1.4 compliant • Transmission distance: CAT6: 230ft/70m @ 1080p, 130ft/40m @ 4K @30Hz CAT5E: 197ft/60m @ 1080p, 115ft/35m @ 4K@30Hz •...
Product Layout Transmitter (TX) Front and Rear Panel Figure 1: Transmitter Front and Rear Panel Layout HDMI In: Connect to your HDMI source EDID: EDID selector switch • RX: Slide the switch to the left to copy the EDID from the HDMI display connected to the Receiver's HDMI Out •...
Page 6
RJ45 Out: Connect to the Receiver's RJ45 In using a CAT cable Link LED: On when the HDMI source device signal is detected Power Jack: Connect to the included power adapter Receiver (RX) Front and Rear Panel 3 4 5 Figure 2: Receiver Front and Rear Panel Layout HDMI Out: Connect to an HDMI display IR In: Connect to the IR Receiver cable...
Page 7
CAT Cable Wiring We suggest both RJ45 connectors be wired identically using T568B wiring standard for the best performance and compatibility. Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included).
Page 8
Optional: Connect the IR Blaster cable to the Transmitter's IR port. Face the IR eye towards your source device's IR window. This connection is needed only if you need to control your HDMI source from the remote display location. Plug a CAT6/7 cable between the Transmitter's RJ45 Out and Receiver's RJ45 Connect your HDMI display to the Receiver's HDMI Out connector with an...
Page 9
Connection Diagram The connection diagram shows the most typical input and output devices used with the HDMI CAT Extender. Figure 3: Connection Diagram with IR...
Page 10
IR Pin Definition Figure 4: IR Pin Definition...
Page 12
We reserve the right to make changes without prior notice to a product or system described herein to improve reliability, function, or design. Thank you for choosing gofanco www.gofanco.com...
