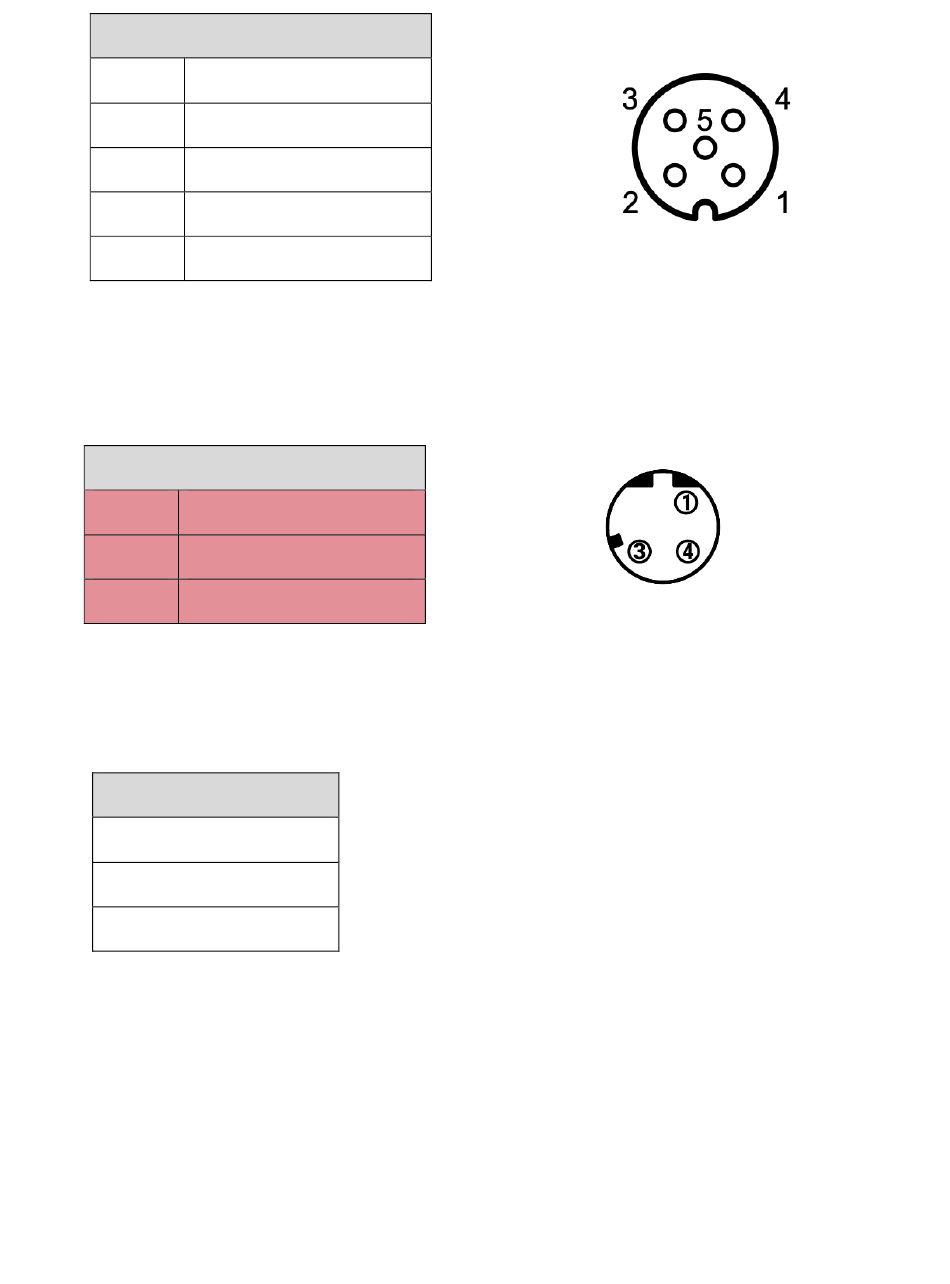

Ethernet (M12) Connector
1
Ethernet TX+
2
Ethernet RX+
3
Ethernet TX-
4
Ethernet RX-
5
Ethernet Ground
3Pin D code M12 Connector
1
N/A
3
N/A
4
N/A
Pigtail Options
USB
Radio Antenna (Optional)
Aux Input (Optional)
M-12, 5-pos, A-coded,
Plastic Knurl Connector
Only
D12D – S103SN
