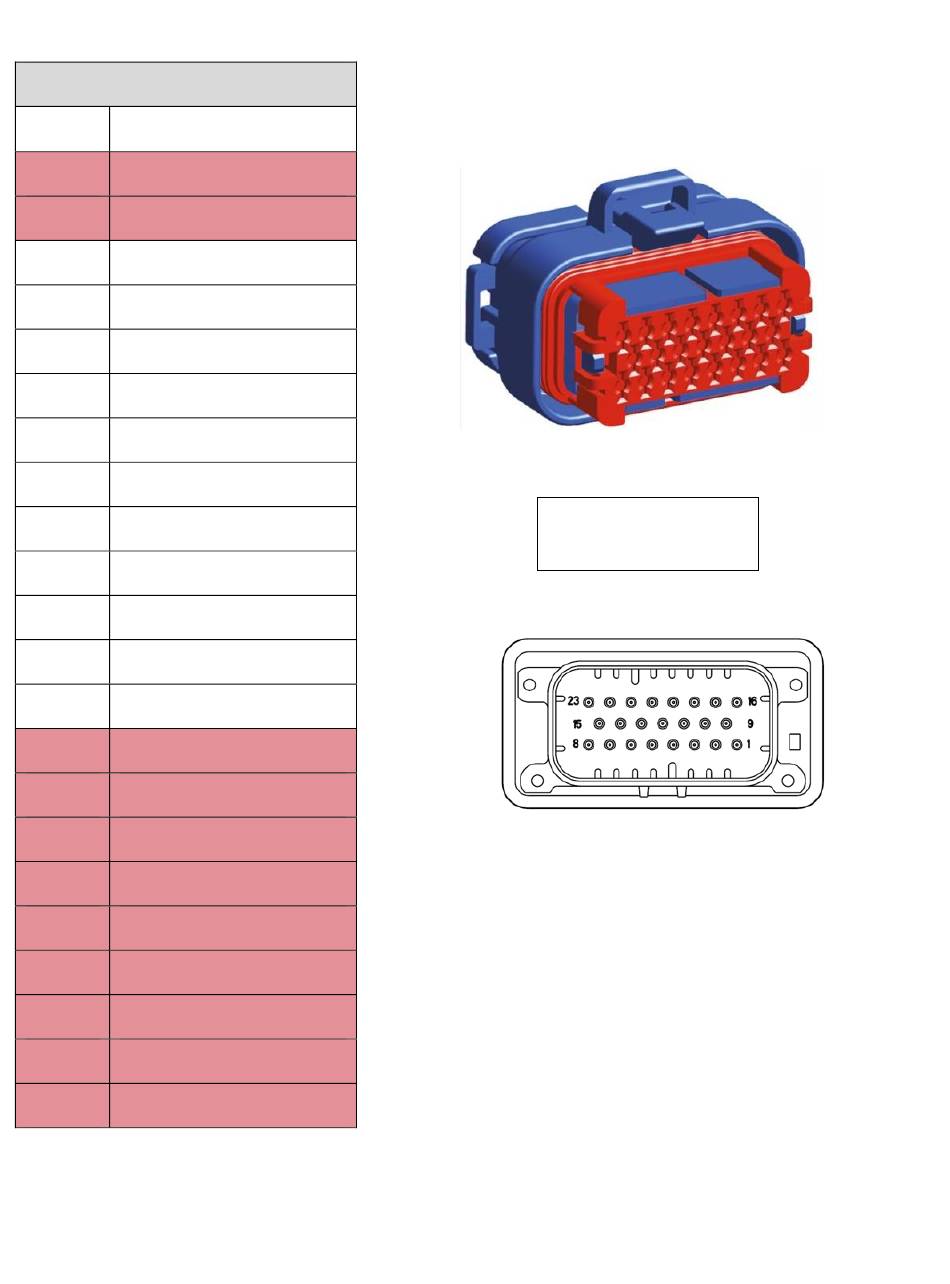

Blue Connector
1
Frequency In
2
N/A
3
N/A
4
Video 4 In P
5
Video 3 In P
6
Video 2 in P
7
Video 1 in P
8
N/A
9
Frequency In Return
10
12V Output
11
Video 4 In N
12
Video 3 in N
13
Video 2 In N
14
Video 1 In N
15
N/A
16
N/A
17
N/A
18
N/A
19
N/A
20
N/A
21
N/A
22
N/A
23
N/A
Mating Connector
AMP 770680-5
