Summary of Contents for Enovation Controls MURPHY PowerView PV380 R3

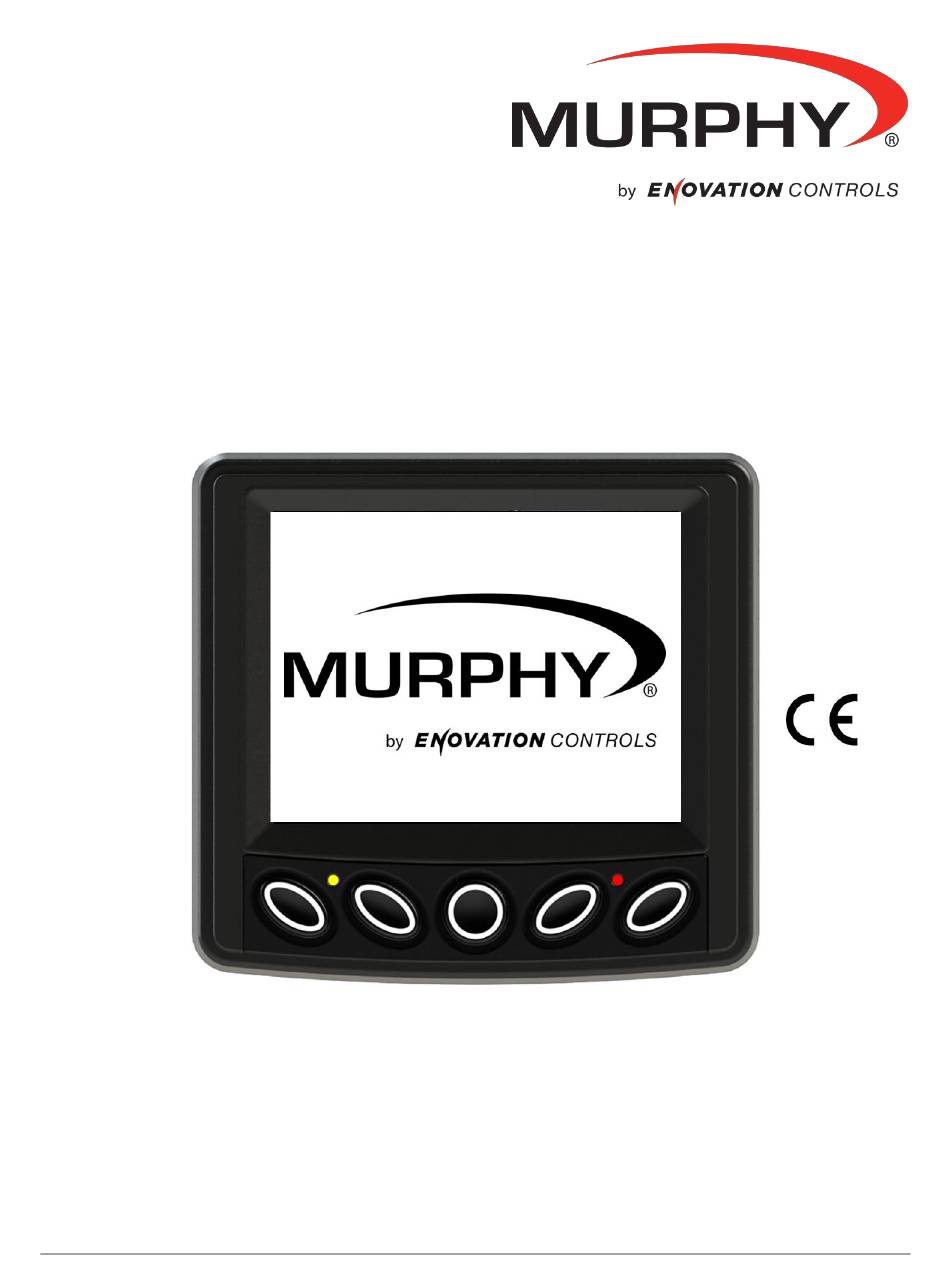

- Page 1 ® PowerView Model PV380 R3 Installation Manual Web View Only 00-02-1224 2023-01-26...
-
Page 2: Table Of Contents
*Products covered in this document comply with European Council electromagnetic compatibility directive 2004/108/EC and electrical safety directive 2006/95/EC. In order to consistently bring you the highest quality, full-featured products, we reserve the right to change our specifications and designs at any time. The latest version of this manual can be found at support.enovationcontrols.com, then search for PV380 R3. -
Page 3: Hardware Installation
Hardware Installation ® The following instructions will guide you through installing the PowerView PV380 R3 display. Inspecting Package Contents Before attempting to install the product, it is recommended that you ensure all parts are accounted for and inspect each item for damage (which sometimes occurs during shipping). -
Page 4: Dimensions
Dimensions 00-02-1224 2023-01-26... -
Page 5: Wiring Information
Wiring Information Pin Specifications for PV380 PV380 Mating Connector Part Numbers: • Deutsch DT06-12SA plug housing • Deutsch DT06-6S plug housing • W6S and W12S wedge locks • Deutsch 0462-201-16141 contact (socket) 00-02-1224 2023-01-26... -
Page 6: Wiring Diagram For Pv380
Wiring Diagram for PV380 00-02-1224 2023-01-26... -
Page 7: Pv380 Features And Operations

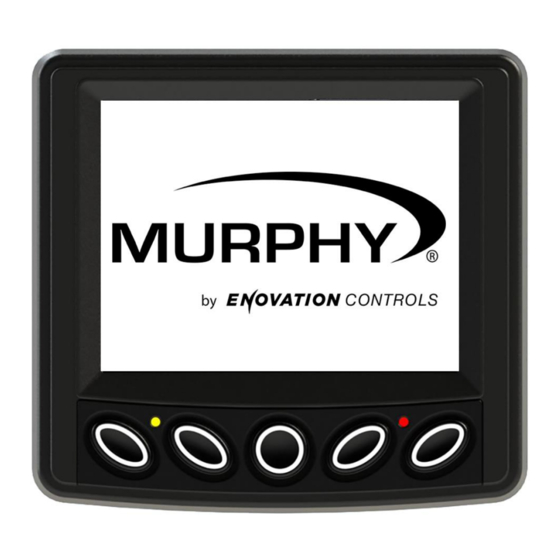

PV380 Features and Operations Flat Screen Display A 3.8” QVGA monochrome LCD screen displays gauges, soft key commands and fault messages as well as menu options for setup and configuration. Soft Keys and Commands The five tactile push buttons on the bottom of the display correspond to the options available for the screen being displayed. - Page 8 Specifications Electrical 3.8” monochrome LCD Display Resolution QVGA, 320 x 240 pixels Orientation Landscape Backlighting LED, white Flash Memory 256kb 6 - 36 VDC, protected against reverse polarity and load- Operating Voltage dump Power Consumption 10 W max CAN 2.0B Communications RS485 serial (Modbus) Protocols...
- Page 9 Mounting Hole Options 00-02-1224 2023-01-26...
