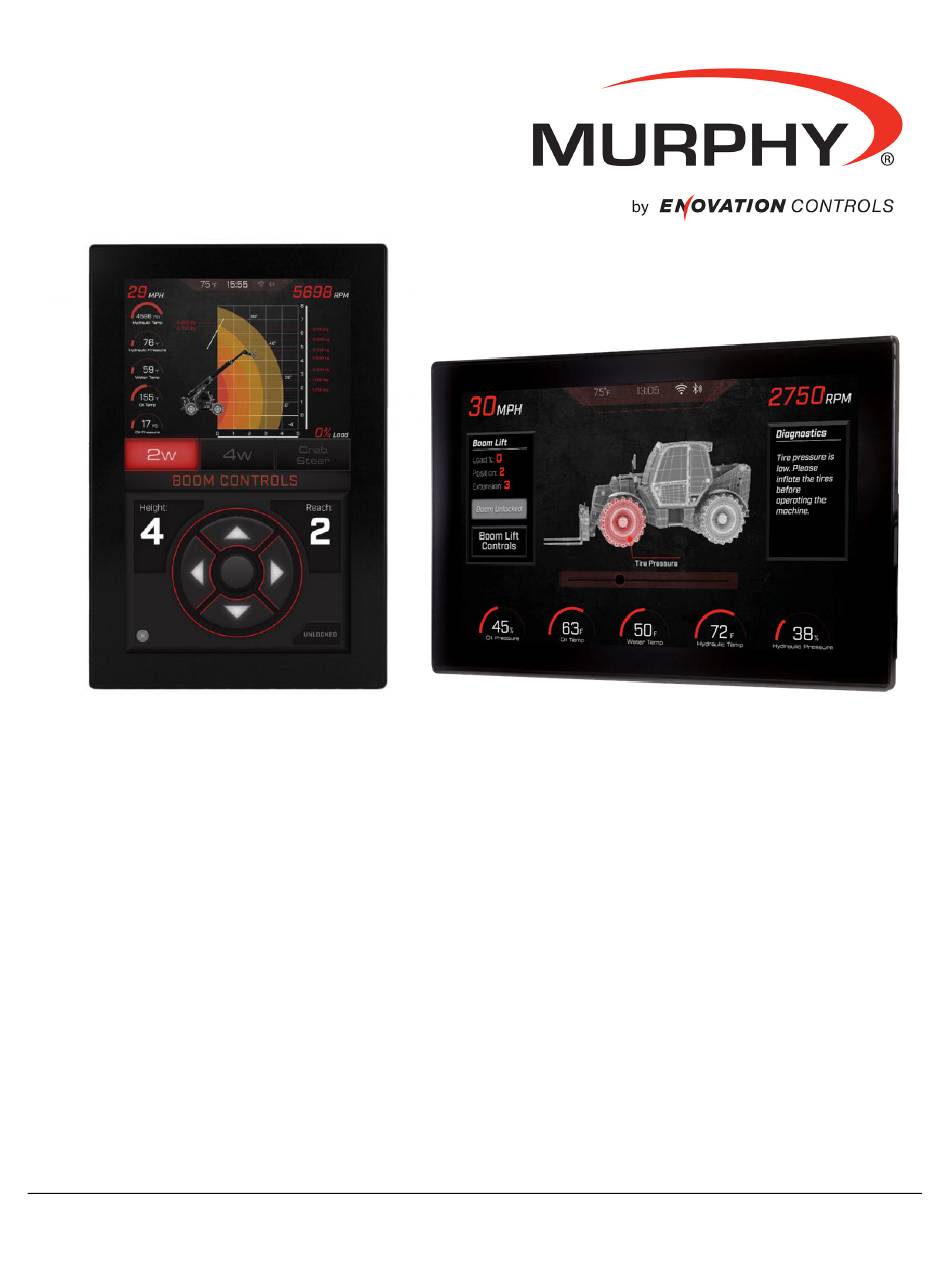

- Page 1 PowerView ® Model PV1100 Installation Manual 00-02-1020 2018-07-16 Section 78...
- Page 2 The latest version of this manual can be found at enovationcontrols.com. Please read the following information before installing. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: Read and follow all installation instructions. Please contact Enovation Controls immediately if you have any questions.
-
Page 3: Table Of Contents
Table of Contents Hardware Installation ......................... 1 Inspecting Package Contents ..................1 Dash-Mounted Installation....................1 Mounting Bracket ......................3 Wiring Information ........................5 Pin Out Specifications ....................5 Configuration Information ......................8 Wiring Schematics – Black Connector (Valid for all non-connected wiring) ....9 Wiring Schematics – Gray Connector (Valid for all non-connected wiring) ....10 Specifications ........................... - Page 4 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 5: Hardware Installation
Hardware Installation The following instructions will guide you through installing the PowerView display. Inspecting Package Contents Before attempting to install the product, it is recommended that you ensure all parts are accounted for and inspect each item for damage (which sometimes occurs during shipping). The items included in the box are: •... - Page 6 Tools needed. • Drill with 7/32 in. size bit • Jigsaw Preparing the Dash Determine the location of the PV1100 in the dash. Cut a hole in the dash to these dimensions: (For actual cutout template, see support.enovationcontrols.com, then search for PV1100) •...
-
Page 7: Mounting Bracket
Mounting the Unit 1. Place the back side of the display through the opening in the dash. 2. Use the four included screws from the mounting kit (78-00-1277) to attach the unit to the bracket and torque to 10 inch-pounds. Mounting Bracket Section 78 00-02-1020... - Page 8 How to Order The following PV1100 displays and accessories are available through Enovation Controls: Part Number Description Order Details 78700636 PV1100, Touch, Non-connected, Landscape Display 78700654 PV1100, Touch, Non-connected, Portrait Display 78090098 Programming Kit, PV780/PV1100 78001277 Kit, Mounting Bracket, PV1100...
-
Page 9: Wiring Information
Wiring Information Pin Out Specifications Black Connector Digital Input 1 Analog Input 3 Analog Input 2 Analog Input 1 CAN1 Low CAN1 High Battery Ground Analog Input 3 Ground Analog Input 2 Ground Analog Input 1 Ground Digital Input 3 Digital Input 2 Frequency Output 1 Ignition Input... - Page 10 Gray Connector Video Input 1 NTSC/PAL Video Input 2 NTSC/PAL Video Input 3 NTSC/PAL RS-485 High RS-485 Low LINE_OUT_1_R Negative Audio Out - Right LINE_OUT_1_R Positive Audio Out - Right LINE_OUT_1_L Negative Audio Out - Left Video Input 1 Ground Video Input 2 Ground Video Input 3 Ground No Connect...
- Page 11 35 Pin Black Connector 1, 2, 3, 4 No Connect LINE_IN_1_L Audio In LINE_IN_1_L Return Audio In LINE_IN_1_R Audio In LINE_IN_1_R Return Audio IN LINE_IN_2_L Audio In LINE_IN_2_L Return Audio In LINE_IN_2_R Audio In LINE_IN_2_R Return Audio In 13, 14, 15 No Connect LINE_OUT_1_L Negative Audio Out - Left LINE_OUT_1_L Positive Audio Out - Left...
-
Page 12: Configuration Information
Ethernet (M12) Connector Ethernet TX+ Ethernet RX+ Ethernet TX- Ethernet RX- M-12, 5-pos, A-coded Plastic Knurl Connector Only Ethernet Ground NOTE: Ethernet connectivity is optional. Available on connected and connected stereo options. Configuration Information Follow these steps to download a custom configuration to the PV1100 display: Step Action Turn off the display. -
Page 13: Wiring Schematics - Black Connector (Valid For All Non-Connected Wiring)
Wiring Schematics – Black Connector (Valid for all non-connected wiring) WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. Section 78 00-02-1020 2018-07-16... -
Page 14: Wiring Schematics - Gray Connector (Valid For All Non-Connected Wiring)
Wiring Schematics – Gray Connector (Valid for all non-connected wiring) WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. Section 78 00-02-1020 2018-07-16... -
Page 15: Specifications
Specifications Computing Main Processor: Renesas R-Car M2, 32-Bit Arm Cortex A15 Processor @ 1.5 GHz Operating Sys: Real-time Operating System ® Storage: 8GB Flash memory for Operating System, Application and Configuration Ram: 512 Mb DDR3-SDRAM Graphics: Renesas graphics processor (2D) Displays 10.6”... - Page 16 Electrical Operating Volts: 6-36 VDC, Reverse polarity protected (1) 500 mA Switched Low-side Outputs: (1) Frequency Output (2Hz – 3KHz) (3) Analog 0-5 VDC, 4-20mA, Resistive, 10-bit resolution Inputs: (5) Discrete digital, active high Environmental Operating Temp: -40°C to +70°C (-40°F to +158°F) Storage Temp -40°C to +85°C (-40°F to +185°F) Protection:...
-
Page 17: Dimensions
Dimensions Section 78 00-02-1020 2018-07-16 - 13 -... - Page 18 Measurements shown in inches [mm] Section 78 00-02-1020 2018-07-16 - 14 -...
