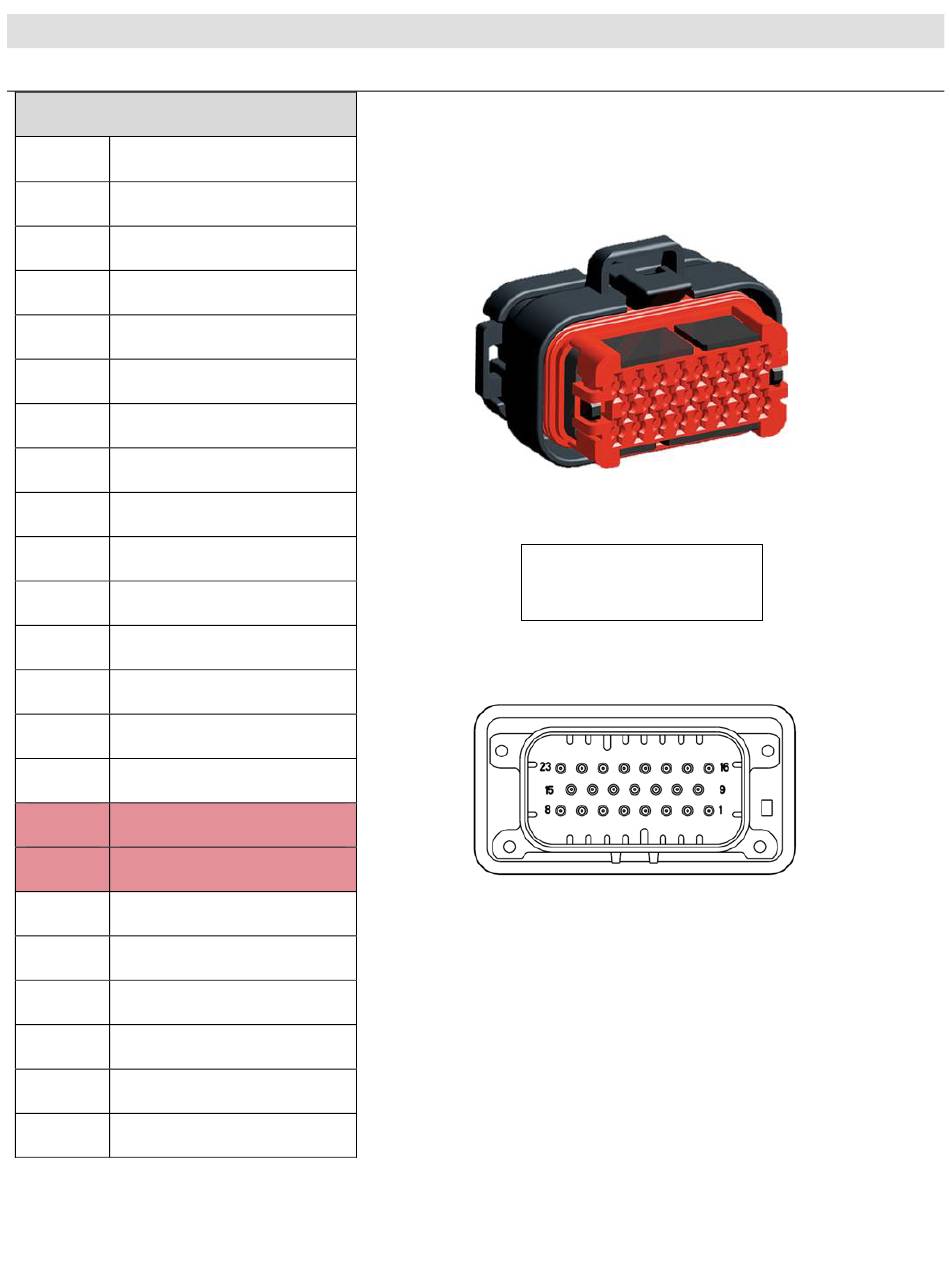

Pinout Specifications

Standard Version

Black Connector
1
Digital Input 1
2
Analog Input 3 +
3
Analog Input 2 +
4
Analog Input 1 +
5
CAN1 Low
6
CAN1 High
7
Battery
8
Ground
9
Analog Input 3 -
10
Analog Input 2 -
11
Analog Input 1 -
12
Digital Input 3
13
Digital Input 2
14
Frequency Output 1
15
Ignition On
16
N/A
17
N/A
18
CAN2 Low
19
CAN2 High
20
Digital Input 4
21
Digital Input 5
22
Digital Output
23
Frequency Output 2
Mating Connector
AMP 770680-1
