3.

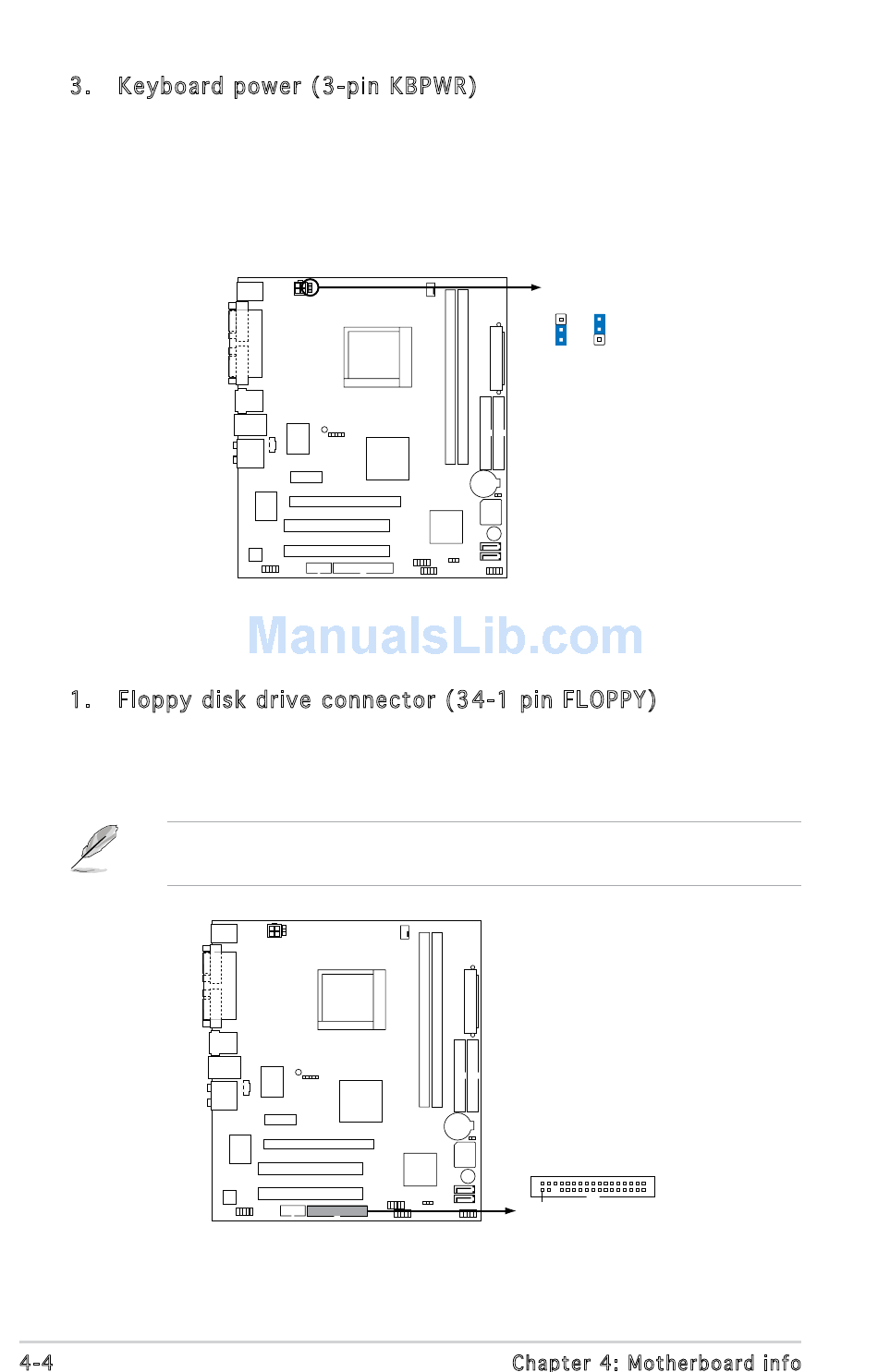

Keyboard power (3-pin KBPWR)
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) to wake up the computer
when you press a key on the keyboard (the default is the Space Bar).
This feature requires an ATX power supply that can supply at least
500 mA on the +5VSB lead, and a corresponding setting in the BIOS.
4.4
Connectors
1.
Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided floppy disk drive (FDD) signal cable.
Insert one end of the cable to this connector, then connect the other
end to the signal connector at the back of the floppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection
when using a FDD cable with a covered Pin 5.
4-4
Fan connectors
Floppy disk drive connector
KBPWR
3
2
2
1
+5V
+5VSB
(Default)
FLOPPY
NOTE:Orient the red markings on
the floppy ribbon cable to PIN1.
PIN1
Chapter 4: Motherboard info
