Removing the side cover and front
panel assembly
1.
Remove the cover screws on the rear panel.
2.
Pull the side cover toward the rear panel until its hooks disengage
from the chassis tab holes. Set the side cover aside.
3.
Locate the front panel assembly hooks, then lift them until they
disengage from the chassis.
4.
Swing the front panel assembly to the right, until the hinge-like tabs
on the right side of the assembly are exposed.
5.
Remove the front panel assembly, then set aside.

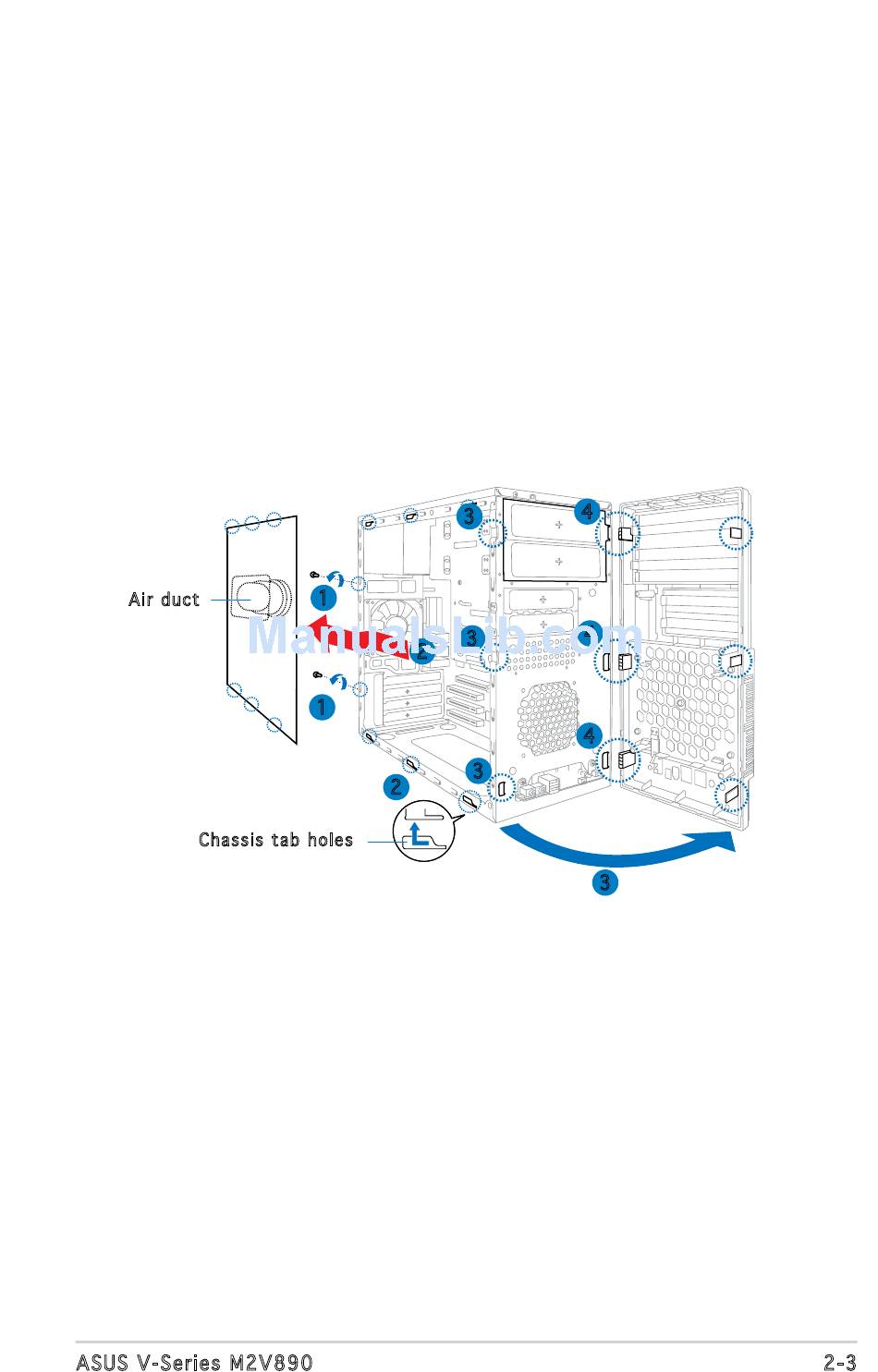

Air duct
Chassis tab holes
ASUS V-Series M2V890
3
1
3
2
1
3
2
4
4
4
3
2-3
