2.8
Installing a hard disk drive
The system may have one pre-installed 3.5-inch Serial ATA or IDE hard disk
drive. Refer to this section to install additional Serial ATA or IDE hard disk
drive(s).

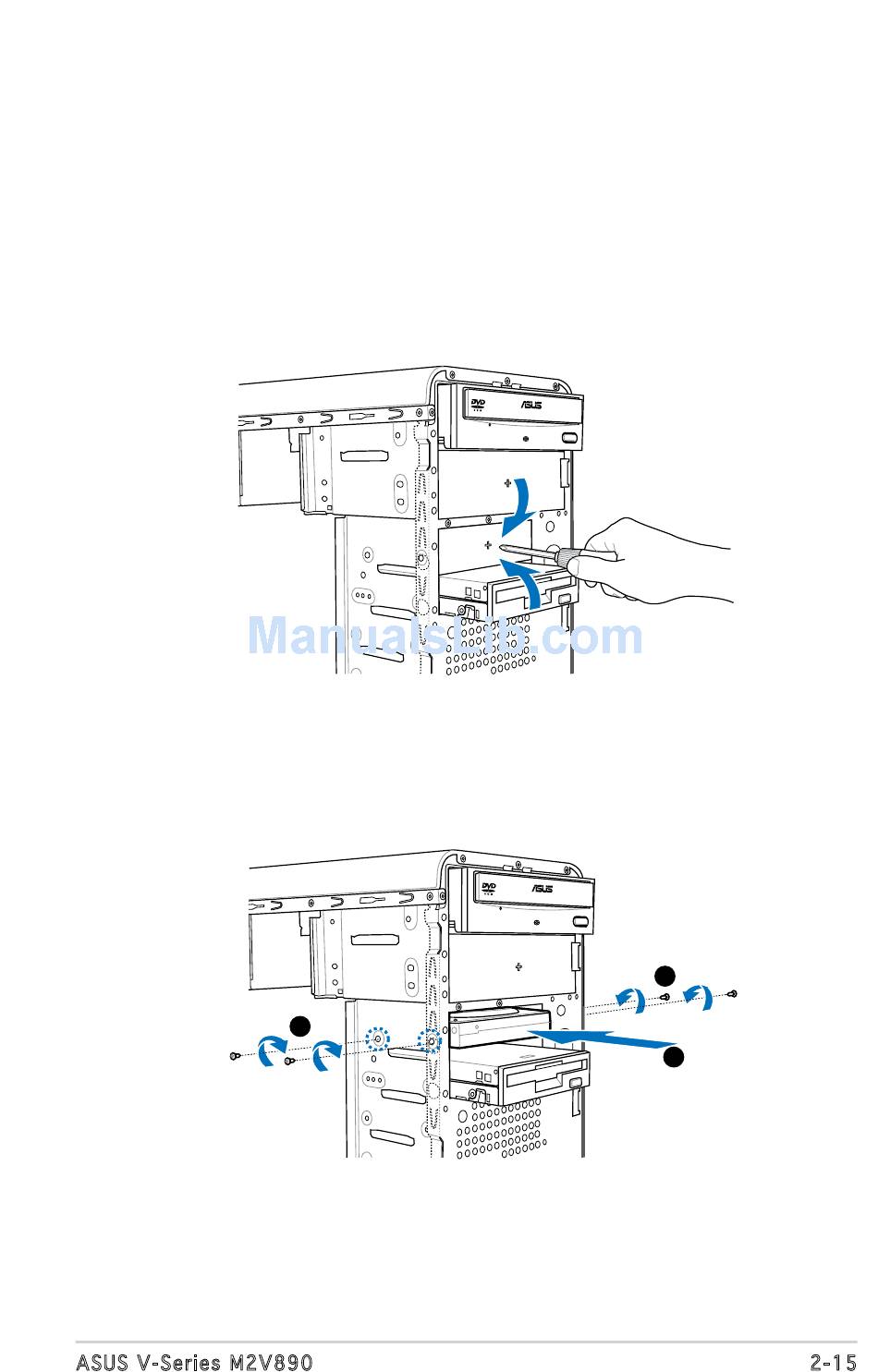

To install a Serial ATA hard disk drive:
1.
Place the chassis upright.
2.
Use a screw driver to remove the HDD drive slot metal plate cover.
3.
With the HDD label side up, carefully insert the drive into the 3.5-inch
bay and push the drive into the bay until its screw holes align with the
holes on the drive bay.
4.
Secure the drive with two screws on both sides.
ASUS V-Series M2V890
4
4
3
2-15
