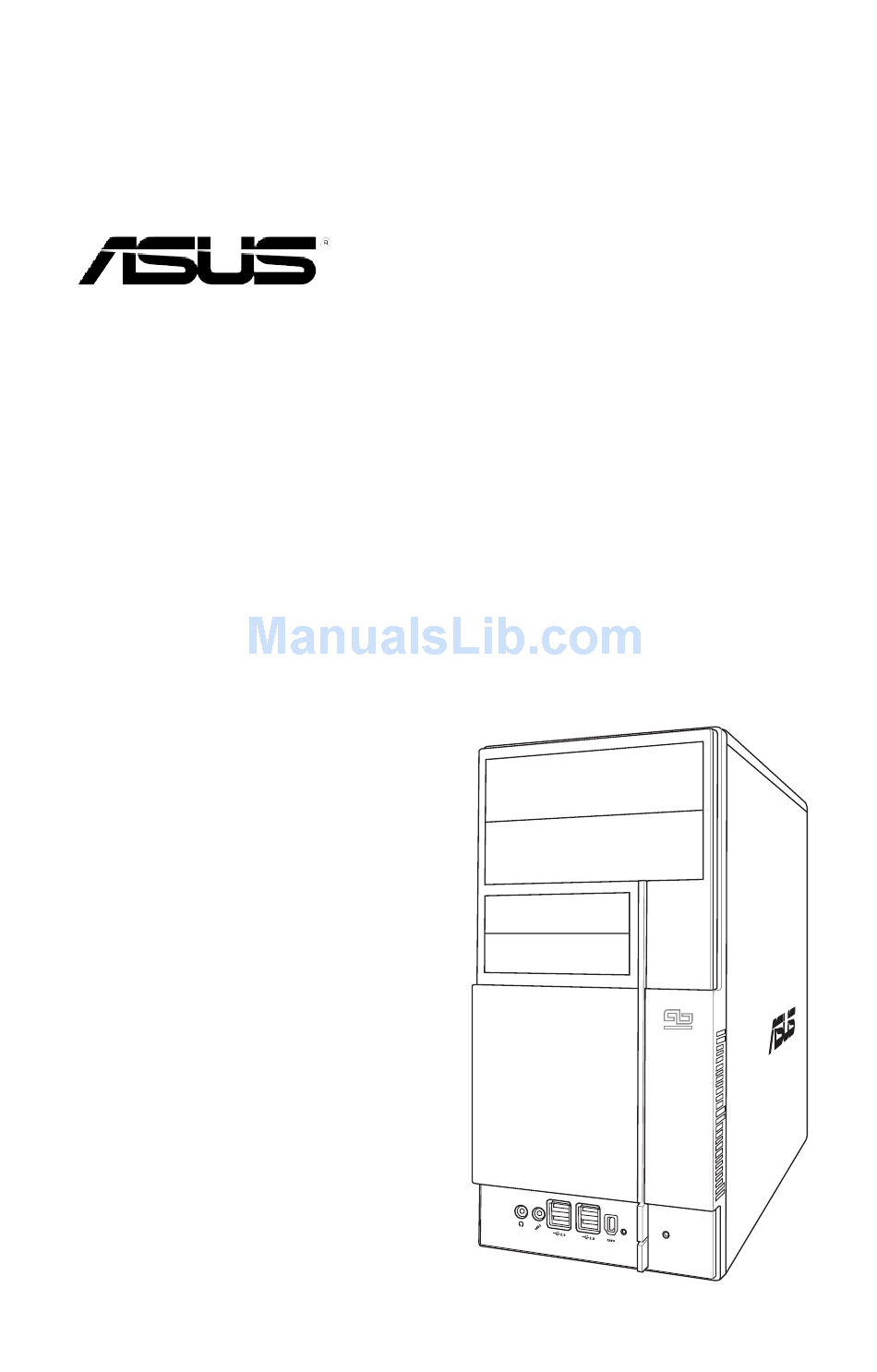

- Page 1 E2796 V-Series P5G965 ASUS PC (Desktop Barebone) Installation manual...
-
Page 2: Front Panel Features
Front panel features 3.5-inch drive bay cover USB 2.0 ports Microphone port Headphone port Rear panel features Power connector Voltage selector PS/2 mouse port PS/2 keyboard port E-SATA port Parallel port VGA port USB 2.0 ports 8-channel audio ports Expansion slot metal brackets Installation manual 5.25-inch drive... -
Page 3: Internal Components
SATA4 CR2032 3V Lithium Cell SATA1 SATA2 CMOS Power TSB43AB22A PANEL CLRTC CHASSIS USB56 USB78 USB910 IE1394_2 PRI_IDE DIMM sockets ASUS motherboard PCI Express x16 slot 10. PCI slots 11. PCI Express x1 slot 12. Metal bracket lock Installation manual... -
Page 4: Removing The Side Cover And Front Panel Assembly
Chassis tab holes Installing a CPU To install a CPU: Locate the CPU socket on the motherboard. Press the load lever with your thumb (A), then move it to the left (B) until it is released from the retention tab. -
Page 5: Installing The Cpu Fan And Heatsink Assembly
To install the CPU heatsink and fan: Place the heatsink on top of the installed CPU, making sure that the four fasteners match the holes on the motherboard. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place. -
Page 6: Installing A Dimm
• Unplug the power supply before adding or removing DIMMs. Failure to do so may cause damage to the motherboard and/or components. • A DDR DIMM is keyed with a notch so that it fits in only one direction. Do not force a DIMM into a socket to avoid damaging the DIMM. -
Page 7: Installing Storage Drives
Installing storage drives Optical drive Place the chassis upright, then remove the upper 5.25” drive bay metal plate cover. Insert the optical drive to the bay, then carefully push the drive until its screw holes align with the holes on the bay. -
Page 8: Removing The Bay Covers And Reinstalling The Front Panel Assembly And Side Cover
For SATA HDD: Connect the SATA signal and power plugs to the connectors at the back of the drive. For IDE HDD: Connect the IDE and power plugs to the connectors at the back of the drive. Removing the bay covers and reinstalling the front panel assembly and side cover If you installed an optical and/or floppy disk drive, remove the bay cover(s) on the front panel assembly before reinstalling it to the chassis.
