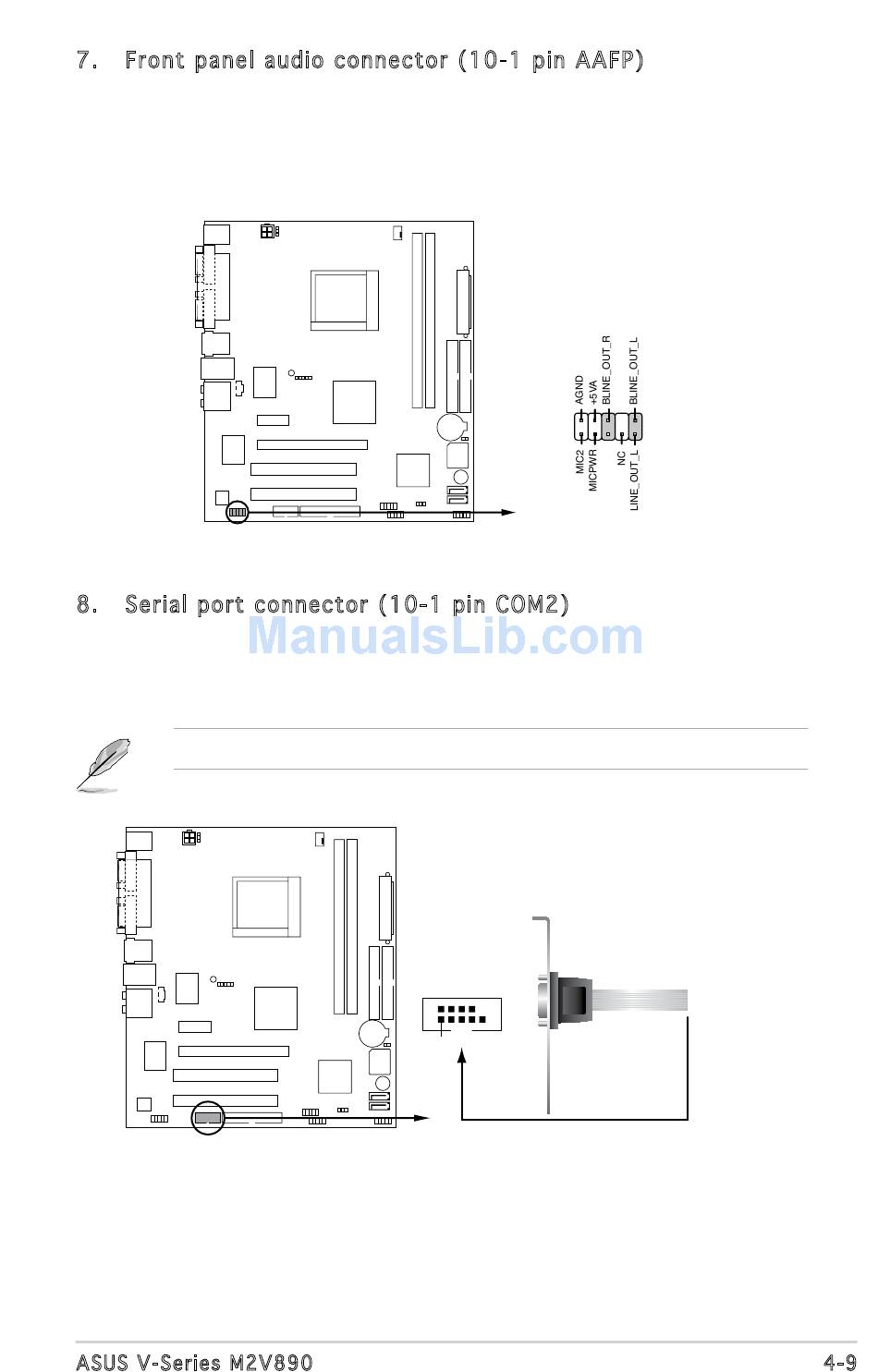

Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module
that supports the Azalia audio standard. Connect one end of the front
panel audio I/O module cable to this connector.
Analog front panel connector
8.
Serial port connector (10-1 pin COM2)
This connector is for serial (COM) port. Connect the serial port module
cable to this connector, then install the module to a slot opening at
the back of the system chassis.
The serial port bracket (COM) is purchased separately.
COM port connector
ASUS V-Series M2V890
AAFP
COM2
PIN1
4-9
