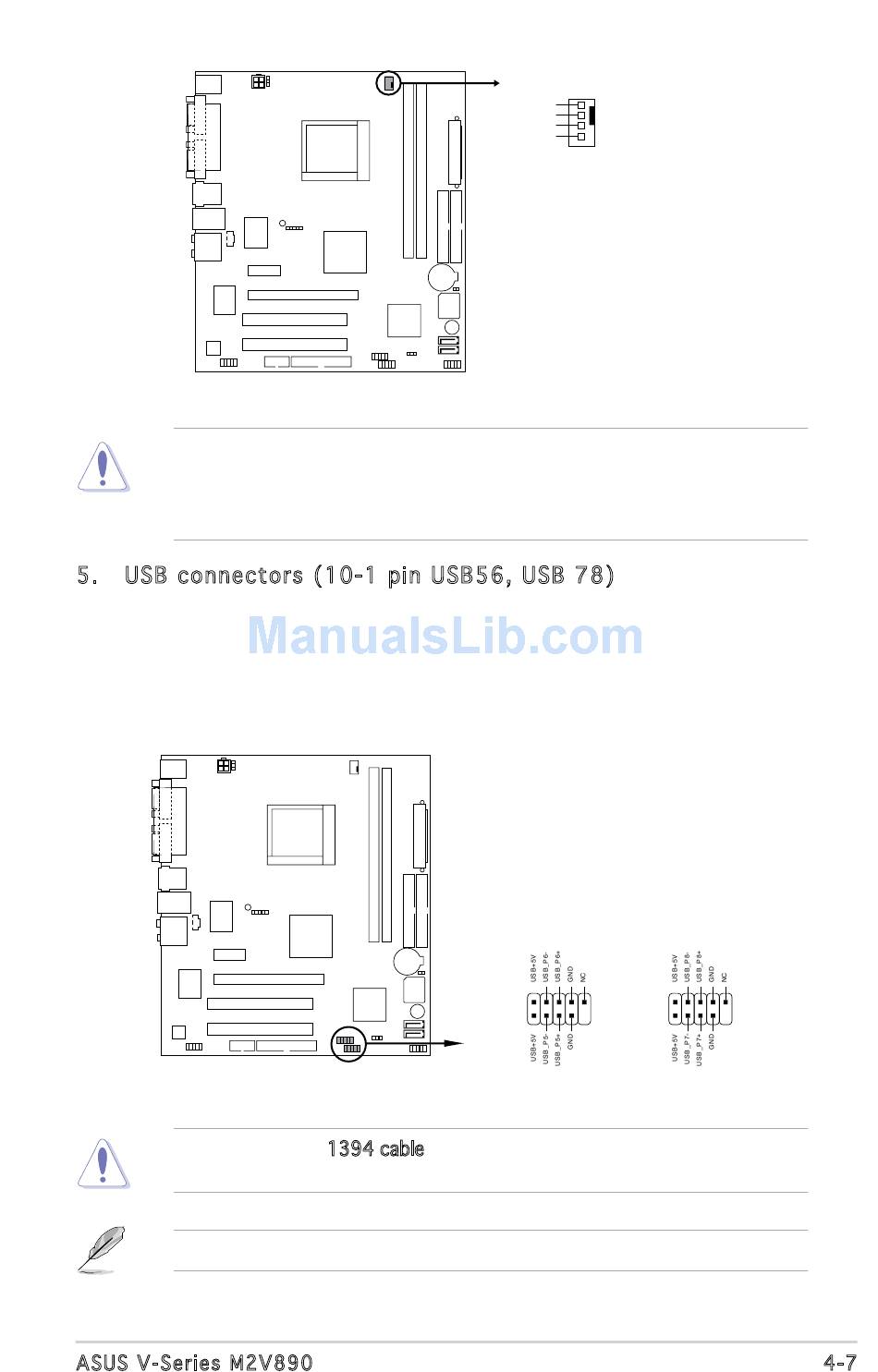

Fan connectors
Do not forget to connect the fan cables to the fan connectors.
Insufficient air flow inside the system may damage the motherboard
components. These are not jumpers! Do not place jumper caps on the
fan connectors!
5.
USB connectors (10-1 pin USB56, USB 78)
These connectors are for USB 2.0 ports. Connect the USB module
cable to any of these connectors, then install the module to a slot
opening at the back of the system chassis. These USB connectors
comply with USB 2.0 specification that supports up to 480 Mbps
connection speed.
USB connectors
Never connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!
The USB module is purchased separately.
ASUS V-Series M2V890
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
USB56
USB78
4-7
