Refer to the audio configuration table below for the function of the audio
ports in 2, 4, 6, or 8-channel configuration.
Audio 2, 4, 6, or 8-channel configuration
Port
Light Blue
Lime
Pink
Orange
Black
Gray

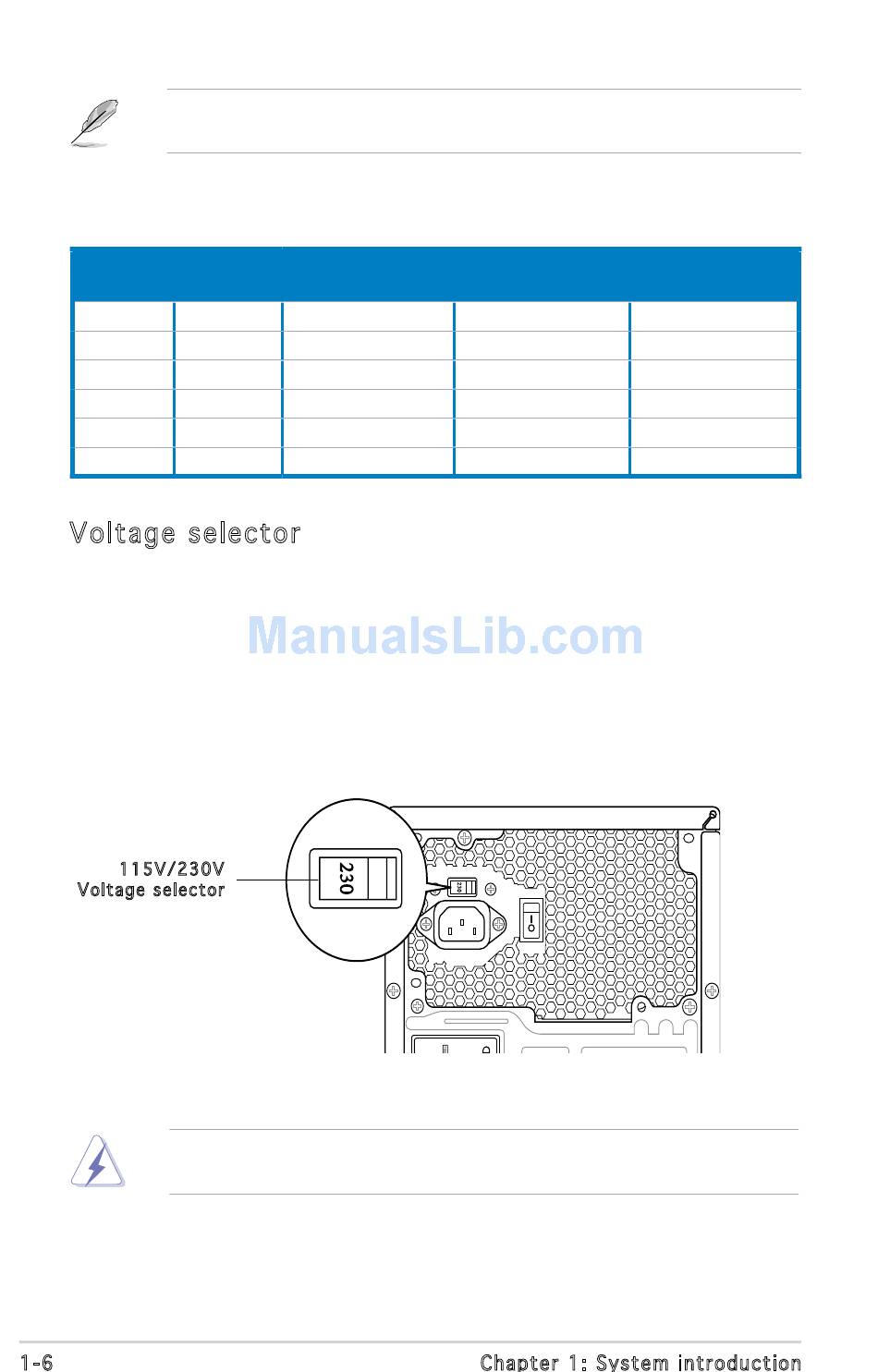

Voltage selector

The system's power supply unit has a 115 V/230 V voltage selector
switch located beside the power connector. Use this switch to select the
appropriate system input voltage according to the voltage supply in your
area.
If the voltage supply in your area is 100-127 V, set this switch to 115 V.
If the voltage supply in your area is 200-240 V, set this switch to 230 V.
115V/230V
Voltage selector
Setting the switch to 115V in a 230V environment or 230V in a 115V
environment will seriously damage the system!
1-6
Headset 4-channel
2-channel
Line In Line In
Line Out Front Speaker Out
Mic In Mic In
–
– Rear Speaker Out
–
6-channel
Line In
Front Speaker Out
Mic In
– Center/Subwoofer
Rear Speaker Out
–
Chapter 1: System introduction
8-channel
Line In
Front Speaker Out
Mic In
Center/Subwoofer
Rear Speaker Out
– Side Speaker Out
