2.6 Install a hard disk drive

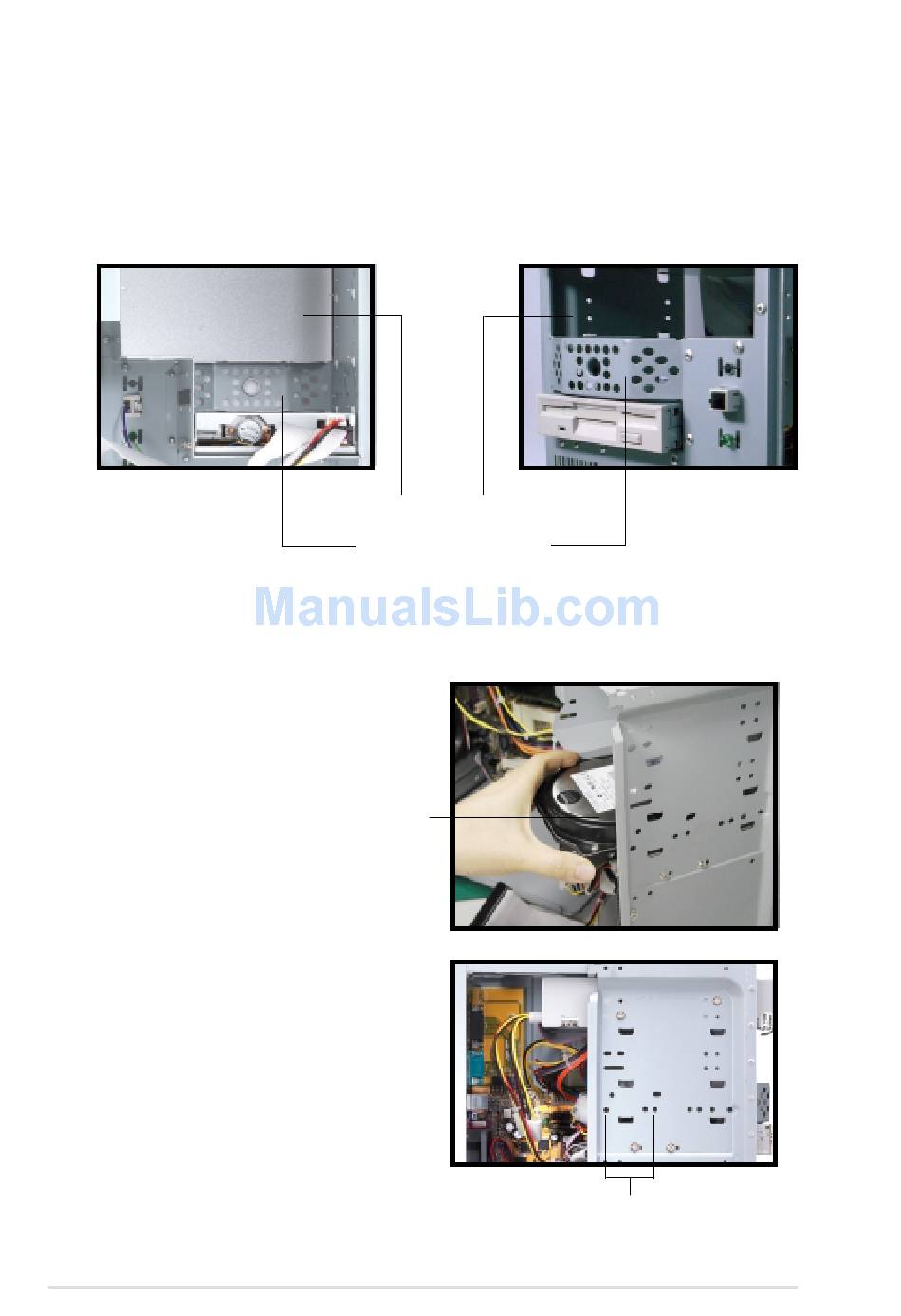

The chassis has one 3.5-inch hard disk drive (HDD) bay right under the
5.25-inch bay. The following figures show the internal and external views
of the HDD bay location.
Internal View
Follow these steps to install an IDE
HDD.
1.
Place the chassis upright.
2.
With the HDD label side up,
carefully insert the drive into
the 3.5-inch bay.
3.
Push the drive into the bay
until its screw holes align with
the holes on the bay marked
HDD.
4.
Secure the drive with two
screws on each side of the
bay.
24
5.25-inch Drive Bay
3.5-inch HDD Drive Bay
HDD label side
External View
HDD screws
Chapter 2: Basic Installation
