6. USB 2.0 headers (10-1 pin USB_34, USB_56)
The USB_34 header is connected to the USB2P connector in the
UAEX extension module on the front panel for two additional USB 2.0
ports.
The USB_56 header (pins 6 to 10) is connected to the J1 connector
on the card reader module on the front panel to support a Compact
Flash card.

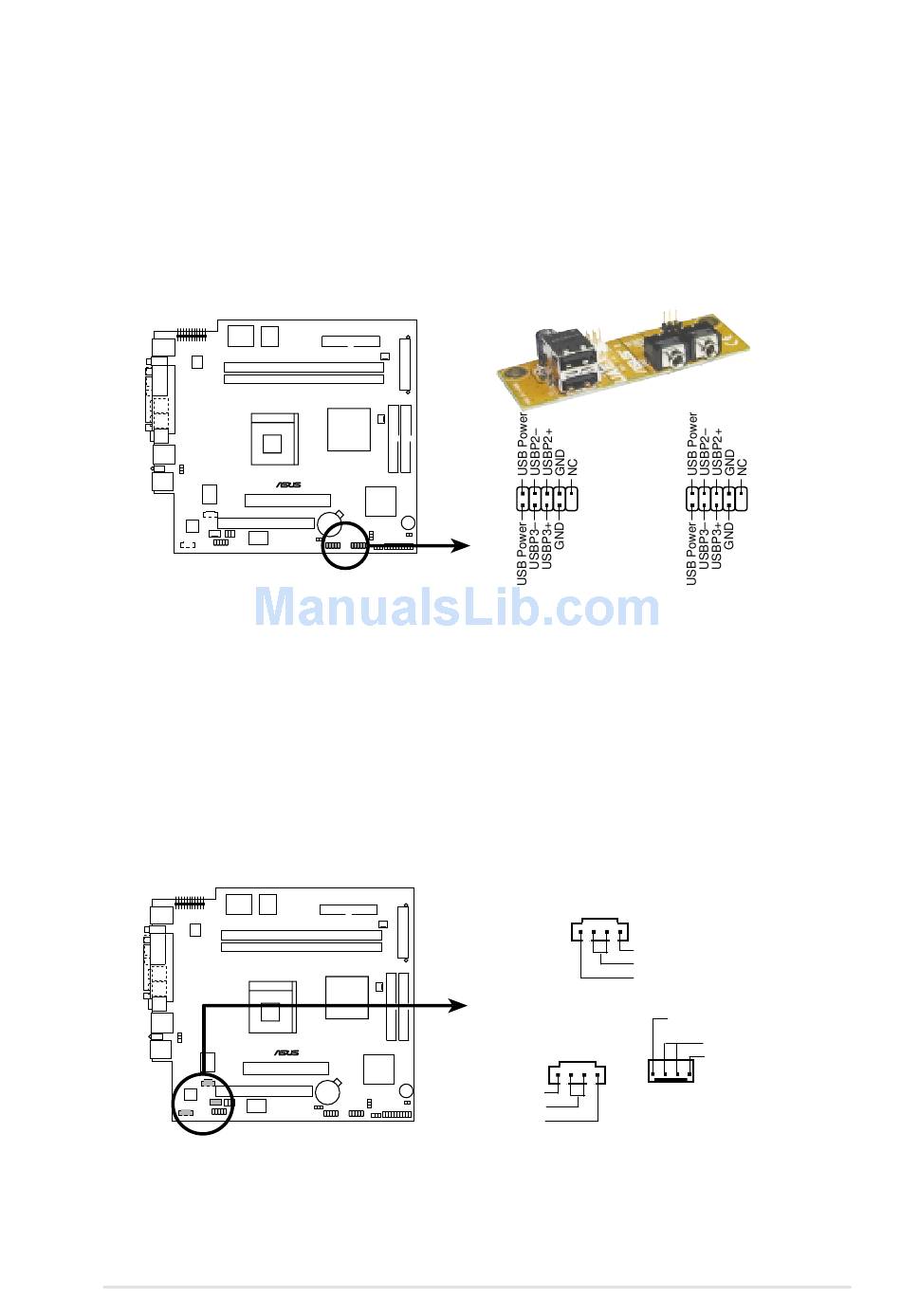

P4SC-EA USB Ports
7. Internal audio connectors (4-pin AUX1, CD1, MODEM1)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card. The MODEM
connector allows the onboard audio to interface with a voice modem
card with a similar connector. It also allows the sharing of mono_in
(such as a phone) and a mono_out (such as a speaker) between the
audio and a voice modem card.
P4SC-EA Internal Audio Connectors
ASUS Terminator P4 533A Barebone System
P4SC-EA
®
USB_34
P4SC-EA
®
Right Audio Channel
Left Audio Channel
1 5
USB_56
6 10
AUX1 (White)
Left Audio Channel
Ground
Right Audio Channel
Modem-In
(to Modem)
CD1 (Black)
MODEM1
Ground
1 5
6 10
Ground
Modem-Out
(from Modem)
