5.
Connect a power cable from
the power supply to the power
connector at the back of the
CD-ROM. Use the cable with
the white connector labeled
P1.
6.
Connect one end of the IDE
ribbon cable to the IDE
interface at the back of the
CD-ROM, matching the red
stripe on the cable with Pin 1
on the IDE interface.
7.
Connect one end of the
CD-ROM audio cable to the
4-pin connector at the back of
the CD-ROM.
8.
Connect the other end of the
IDE ribbon cable to the
secondary IDE connector
(black connector labeled
SEC_IDE1) on the
motherboard.
9.
Connect the other end of the
audio cable to the black 4-pin
connector labeled CD on the
motherboard.

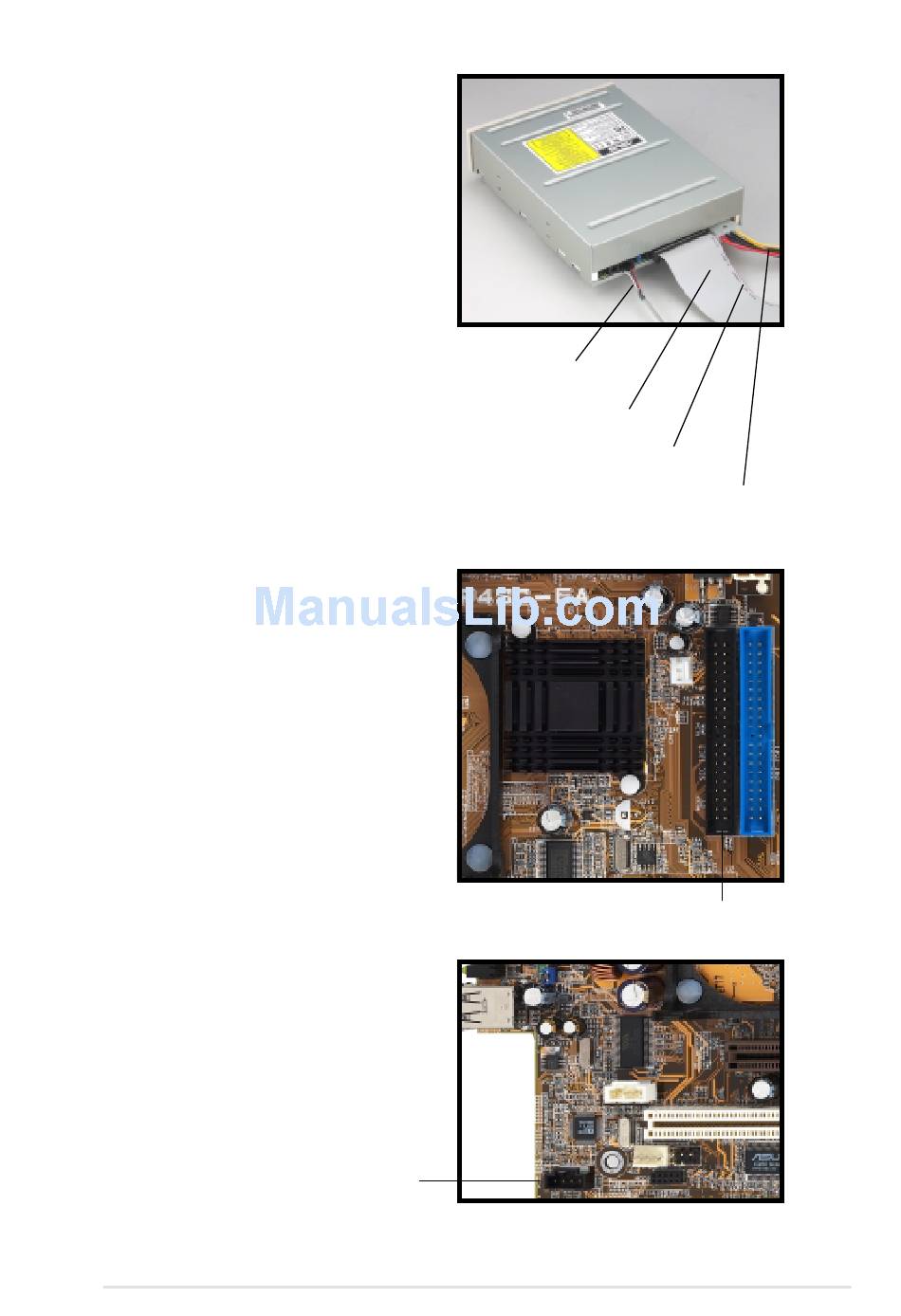

CD-ROM Connector
(CD1)
ASUS Terminator P4 533A Barebone System
CD-ROM Audio Cable
IDE Ribbon Cable
Red Stripe to Pin 1
Secondary IDE connector
(SEC_IDE1)
Power Cable (P1)
27
