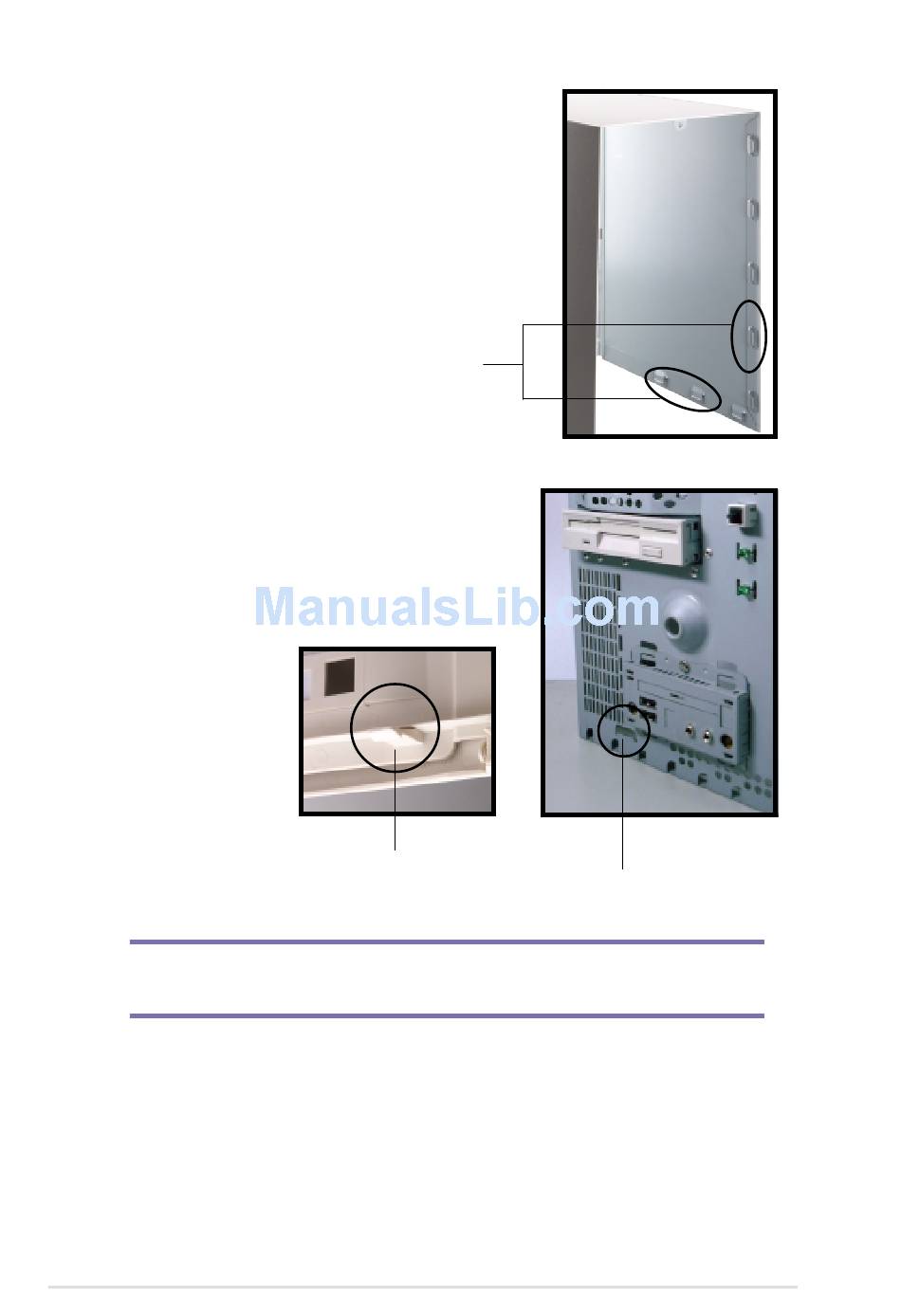

Fit the rail tabs on the sides
and bottom of the cover to the
edges of the chassis.
6.
Push the cover towards the
rear until it fits. The locking tab
snaps into the hole on the
chassis indicating that the
cover is in place.
IMPORTANT
Firmly push the cover to ensure that it is fully engaged to the chassis.
7.
Lock the cover with the captive
thumbscrew on the rear panel.
32
Rail Tabs
Locking Tab
Chapter 2: Basic Installation
Locking Tab Hole
