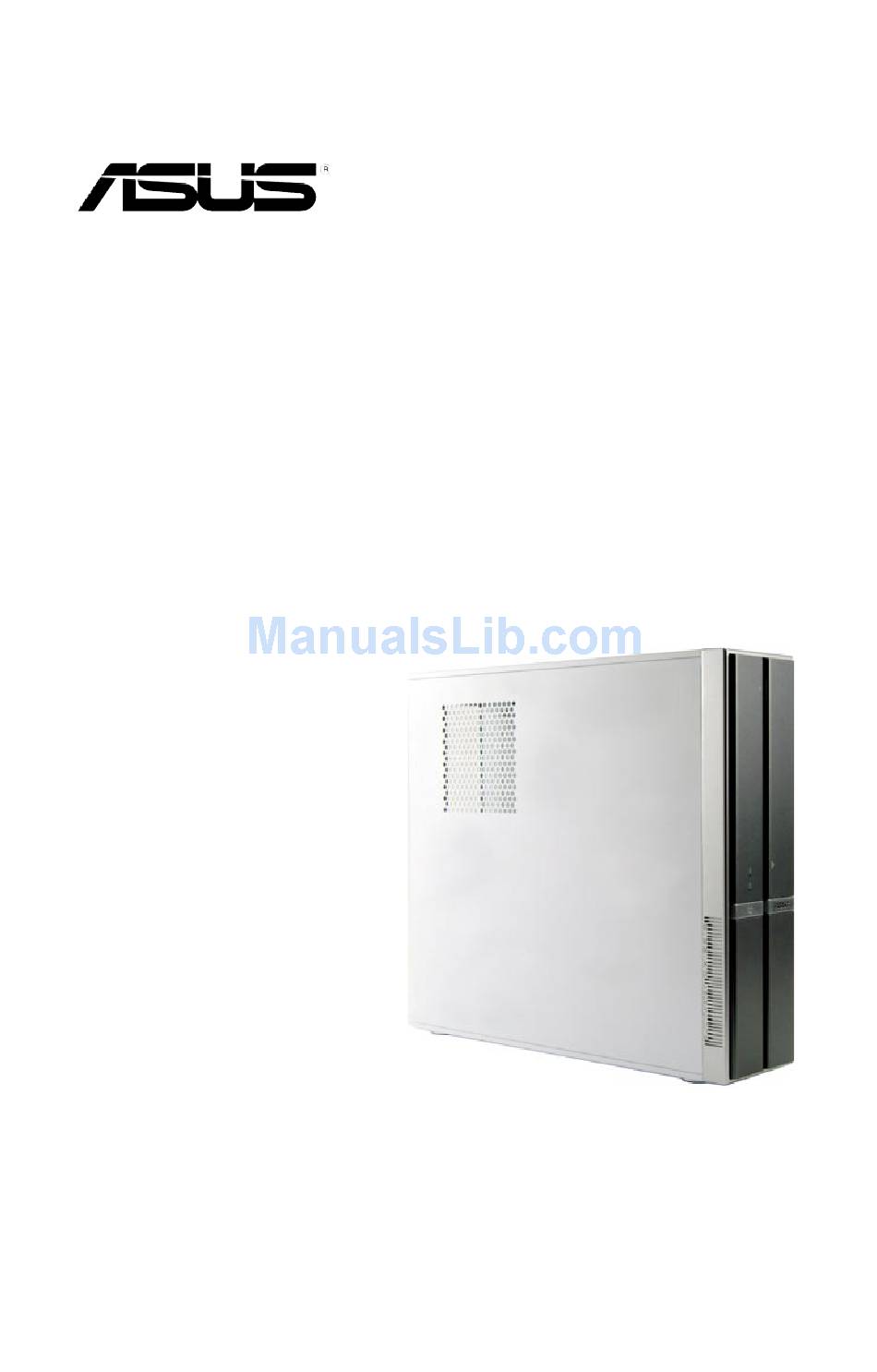

Pundit P3-PH5
ASUS PC (Desktop Barebone)
Download the latest manual from the ASUS website: www.asus.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pundit P3-PH5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asus Pundit P3-PH5

Summary of Contents for Asus Pundit P3-PH5

  • Page 1 Pundit P3-PH5 ASUS PC (Desktop Barebone) Download the latest manual from the ASUS website: www.asus.com...

  • Page 2: October 2006

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Notices ... vi Safety information ... vii About this guide ... viii System package contents ... x Chapter 1: System Introduction Welcome! ... 1-2 Front panel ... 1-2 Rear panel ... 1-4 Internal components ... 1-6 Chapter 2: Basic Installation Preparation ...
  • Page 4 Internal connectors ... 4-5 Chapter 5: Managing and updating your BIOS ... 5-2 5.1.1 Creating a bootable floppy disk ... 5-2 5.1.2 ASUS EZ Flash 2 utility ... 5-3 5.1.3 AFUDOS utility ... 5-4 5.1.4 ASUS CrashFree BIOS 3 utility ... 5-6 5.1.5 ASUS Update utility ...
  • Page 5 Contents 5.2.8 Scroll bar ... 5-13 5.2.9 General help ... 5-13 Main menu ... 5-14 5.3.1 System Time ... 5-14 5.3.2 System Date ... 5-14 5.3.3 Legacy Diskette A ... 5-14 5.3.4 Primary, Secondary, Third, Fourth IDE Master/Slave ... 5-15 5.3.5 IDE Configuration ...

  • Page 6: Canadian Department Of Communications Statement

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Page 7: Class 1 Laser Product

    Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. •...

  • Page 8: How This Guide Is Organized

    About this guide Audience This guide provides general information and installation instructions about the ASUS Pundit P3-PH5 barebone system. This guide is intended for experienced users and integrators with hardware knowledge of personal computers. How this guide is organized This guide contains the following parts: Chapter 1: System introduction This chapter gives a general description of the barebone system.

  • Page 9: Conventions Used In This Guide

    ASUS Websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to the ASUS contact information. Optional Documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not...

  • Page 10: System Package Contents

    System package contents Check your Pundit P3-PH5 system package for the following items. If any of the items is damaged or missing, contact your retailer immediately. Item description 1. ASUS Pundit P3-PH5 barebone system with • ASUS motherboard • 275 W PFC power supply unit •...
  • Page 11 Chapter 1 This chapter gives a general description of the barebone system. The chapter lists the system features including introduction on the front and rear panel, and internal components. ASUS Pundit P3-PH5...

  • Page 12: Chapter 1: System Introduction

    P3-PH5 is designed for the sophisticated. The system’s ergonomic design allows vertical or horizontal placement so you can maximize your desktop space. With these and many more, the Pundit P3-PH5 definitely delivers the cutting edge technology for your computing and multimedia needs.
  • Page 13 USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and others. *Use and format a storage card according to the documentation that comes with ASUS Pundit P3-PH5 . This slot is for a CompactFlash . This slot is for a SmartMedia .

  • Page 14: Rear Panel

    Rear panel The system rear panel includes the power connector and several I/O ports that allow convenient connection of devices. Cover screw. Secures the system cover. PS/2 mouse port Parallel port devices. Air vent. Provides ventilation for the system. 6-pin IEEE 1394a port 1394a-compliant audio/video devices, storage peripherals, and other consumer electronic devices.
  • Page 15 20. Expansion slots. You can insert expansion boards into these slots to add memory and graphics capabilities to the system. 21. Power fan vent. The fan vent allows air to be circulated by the power supply fan. ASUS Pundit P3-PH5 . These Universal Serial Bus 2.0 (USB 2.0) ports are 4-channel 6-channel...

  • Page 16: Internal Components

    5.25-inch empty optical drive bay Front panel cover Optical drive lock Hard disk drive bays Hard disk drive lock Power supply unit 10. ASUS motherboard 11. Metal bracket lock 12. LGA775 socket 13. DIMM sockets PCI Express x4 slot PCI slots...
  • Page 17 Chapter 2 This chapter provides step-by- step instructions on how to install components in the system. ASUS Pundit P3-PH5...

  • Page 18: Chapter 2: Basic Installation

    Preparation Before you proceed, make sure that you have all the components you plan to install in the system. Basic components to install Central processing unit (CPU) DDR2 Dual Inline Memory Module (DIMM) Expansion card(s) Hard disk drive Optical drive Before you proceed Take note of the following precautions before you install components into the system.

  • Page 19: Removing The Covers

    Lift the expansion card lock to a 90º-100º angle. ASUS Pundit P3-PH5 Remove the cover screws. Keep the screws for later use. Lift the system cover, then set aside.

  • Page 20: Removing The Front Panel Assembly

    2.3.2 Removing the front panel assembly To remove the front panel assembly: Place the system vertically. Locate the front panel assembly hooks. Pull the hooks outward to release the front panel assembly. Swing the left edge of the front panel assembly outward. Unhook the hinge-like tabs from the holes on the right side of the chassis to detach.

  • Page 21: Installing A Cpu

    Installing a CPU The ASUS motherboard comes with a surface mount LGA775 socket designed for the Intel Pentium 4 processor in the 775-land package. ® ® 2.4.1 CPU installation • Your boxed Intel with installation instructions for the CPU, heatsink, and the retention mechanism.
  • Page 22 Press the load lever with your thumb (A) and move it to the left (B) until it is released from the retention tab. Retention tab Load lever To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.
  • Page 23 Intel Enhanced Memory 64 Technology (EM64T), Enhanced Intel SpeedStep ® Technology (EIST), and Hyper-Threading Technology. Refer to the Appendix for more information on these CPU features. ASUS Pundit P3-PH5 Alignment key Gold triangle mark Pentium 4 LGA775 processors with the ®...

  • Page 24: Installing The Cpu Fan And Heatsink Assembly

    2.4.2 Installing the CPU fan and heatsink assembly The system package includes a pre-installed proprietary CPU fan and heatsink assembly to ensure optimum thermal condition and performance. DO NOT replace the proprietary CPU fan and heatsink with other models. To install the CPU fan and heatsink assembly: Place the heatsink on top of the installed CPU.

  • Page 25: Installing A Dimm

    Due to chipset resource allocation, the system may detect less than 4 GB system memory when you installed four 1 GB DDR2 memory. • This motherboard does not support memory modules made up of 128 MB chips or double-sided x16 memory modules. ASUS Pundit P3-PH5 Sockets...

  • Page 26: Ddr2 Qualified Vendors List

    DDR2 Qualified Vendors List The following tables list the memory modules that have been tested and qualified for use with this motherboard. Visit the ASUS website (www.asus.com) for the latest DDR2 DIMM modules for this motherboard. DDR2 533 Qualified Vendors List...

  • Page 27: Installing A Dimm

    Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force. Remove the DIMM from the socket. ASUS Pundit P3-PH5 DDR2 DIMM notch Unlocked retaining clip DDR2 DIMM notch 2-11...

  • Page 28: Installing An Expansion Card

    Installing an expansion card In the future, you may need to install expansion cards. The motherboard has two PCI, one PCI Express™ x4, and one PCI Express™ x16 slot. The following sub- sections describe the slots and the expansion cards that they support. The system supports low profile PCI, PCI Express x16, and PCI Express x4 cards.
  • Page 29 If you have already installed a hard disk drive, replace the chassis support bracket; otherwise, install other components before replacing the chassis support bracket. Replace the expansion card lock to secure the card to the chassis. ASUS Pundit P3-PH5 2-1...

  • Page 30: Standard Interrupt Assignments

    Standard interrupt assignments * These IRQs are usually available for ISA or PCI devices. IRQ assignments for the system motherboard PCI Slot 1 PCI Slot 2 PCI Express x16 slot shared PCI Express x1 slot USB controller 1 USB controller 2 USB controller 3 USB controller 4 USB 2.0 controller...

  • Page 31: Installing An Optical Drive

    The IDE and audio plugs are pre-connected to the primary IDE and internal audio connectors on the motherboard. If you disconnected these plugs, refer to page 4-6 and 4-8 for their respective locations. ASUS Pundit P3-PH5 Audio cable IDE cable...

  • Page 32: Uninstalling The Optical Drive

    Carefully push the optical drive all the way into the bay until the optical drive lock clicks. Connect a 4-pin power plug from the power supply unit to the power connector at the back of the drive. Uninstalling the optical drive In the future, you may have to upgrade or replace a defective optical drive.

  • Page 33: Removing The Card Reader

    (B) until the USB cable and plug is exposed. Disconnect the USB cable and plug from the card reader assembly, then set the card reader assembly aside. ASUS Pundit P3-PH5 2-1...

  • Page 34: Installing Hard Disk Drives (Hdds)

    Installing hard disk drives (HDDs) The system comes with two 3.5-inch drive bays (labeled 1 and 2) for installation of two Serial ATA hard disk drives or one IDE HDD (if you have installed an optical drive). 2.9.1 Hard disk drive bays The drive bays incorporate a screw-less design that allows you to install and remove a hard disk drive without driving...
  • Page 35 When the HDD screws align with the screw rails, push the drive carefully until it is completely flushed on the bay. The HDD screw lock clicks to indicate that the drive is properly in place. ASUS Pundit P3-PH5 HDD screw lock 2-1...

  • Page 36: Ide Hard Disk Drive Installation

    2.9.3 IDE hard disk drive installation Set the IDE HDD as master device before connecting the IDE cable and power plug. Refer to the HDD documentation for details. To install an IDE hard disk drive: Follow steps 1 to 2 of the previous section. Connect the IDE cable (gray connector) to the IDE interface at the back of the drive.

  • Page 37: 2.10 Replacing The Covers

    Swing the left edge of the front panel inward, then attach the front panel assembly hooks to the chassis until they snap in place. Do not use too much force when replacing the front panel assembly. ASUS Pundit P3-PH5 Hinge-like tabs 2-21...

  • Page 38: Replacing The System Cover

    2.10.2 Replacing the system cover To replace the metal chassis support: Reinstall the metal chassis support and the expansion card lock. Match and insert the hooks of the cover to the elongated holes on the side of the chassis. All eight hooks (four hooks on both sides) of the cover must properly fit the designated holes.

  • Page 39: 2.11 Installing The Foot Stands

    Drive in a screw to secure the footstand to the chassis. Follow the same procedures when installing the second foot stand. The photo on the right shows the system in a vertical desktop placement. ASUS Pundit P3-PH5 2-2...

  • Page 40: 2.12 Selecting The Voltage

    2.12 Selecting the voltage The system’s power supply unit has a 115 V/230 V voltage selector switch located beside the power connector. Use this switch to select the appropriate system input voltage according to the voltage supply in your area. If the voltage supply in your area is 100-127 V, set the switch to 115 V.
  • Page 41 Chapter 3 This chapter helps you power up the system and install drivers and utilities from the support CD. ASUS Pundit P3-PH5...

  • Page 42: Chapter 3: Getting Started

    The support CD that came with the system package contains the drivers, software applications, and utilities that you can install to avail all system features. The contents of the support CD are subject to change at any time without notice. Visit the ASUS website(www.asus.com) for updates. 3.2.1 Running the support CD Place the support CD to the optical drive.

  • Page 43: Drivers Menu

    The drivers menu shows the available device drivers if the system detects installed devices. Install the necessary drivers to activate the devices. ASUS InstAll -Installation Wizard for Drivers Launches the ASUS InstallAll driver installation wizard. Intel Chipset Inf Update Program Installs the Intel chipset inf update program.

  • Page 44: Utilities Menu

    ASUS InstAll - Installation Wizard for Utilities Launches the ASUS InstallAll utilities installation wizard. ASUS Update The ASUS Update utility allows you to update the motherboard BIOS in a Windows environment. This utility requires an Internet connection either through a ®...

  • Page 45: Make Disk Menu

    /AHCI driver disk. JMicron JMB36X 32bit RAID/AHCI Driver Allows you to create an JMicron JMicron JMB36X 64bit RAID/AHCI Driver Allows you to create an JMicron ASUS Pundit P3-PH5 ® JMB36X 32bit RAID/AHCI driver disk. ® JMB36X 64bit RAID/AHCI driver disk.

  • Page 46: Manual

    Reader from the Utilities menu before opening a user manual file. Acrobat ® 3.2.6 ASUS contact information Click the Contact tab to display the ASUS contact information. You can also find this information on the inside front cover of this user guide. ® Chapter 3: Getting started...

  • Page 47: Other Information

    The icons on the top right corner of the screen give additional information on the motherboard and the contents of the support CD. Click an icon to display the specified information. Motherboard Info Displays the general specifications of the motherboard. Browse this CD Displays the support CD contents in graphical format. ASUS Pundit P3-PH5...

  • Page 48: Technical Support Form

    Technical support form Displays the ASUS Technical Support Request Form that you have to fill out when requesting technical support. Filelist Displays the contents of the support CD and a brief description of each in text format. Chapter 3: Getting started...
  • Page 49 Chapter 4 This chapter gives information about the motherboard that comes with the system. This chapter includes the motherboard layout, jumper settings, and connector locations. ASUS Pundit P3-PH5...

  • Page 50: Motherboard Overview

    Motherboard overview Motherboard layout PS/2KBMS T : Mouse B: Keyboard ESATA 1394_USB12 ATX12V LAN_USB34 RTL8111B AUDIO JMicron JMB363 TSB43AB22A PCIEX4_1 AD1988 IE1394_2 AAFP 24.5cm (9.6in) CPU_FAN LGA775 Intel G965MCH PCIEX16 PCI1 SB_PWR PCI2 CR2032 3V BUZZ Lithium Cell CMOS Power PRI_EIDE Super I/O Intel ICH8...

  • Page 51: Jumper

    Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data. Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure! P5B-VM Clear RTC RAM ASUS Pundit P3-PH5 CLRTC Normal Clear CMOS (Default)
  • Page 52 Keyboard power (3-pin KBPWR) This jumper allows you to enable or disable the keyboard wake-up feature. Set this jumper to pins 2-3 (+5VSB) to wake up the computer when you press a key on the keyboard (the default is the Space Bar). This feature requires an ATX power supply that can supply at least 1A on the +5VSB lead, and a corresponding setting in the BIOS.

  • Page 53: Connectors

    Pin 5 on the connector is removed to prevent incorrect cable connection when using an FDD cable with a covered Pin 5. Floppy Disk Drive Connector P5B-VM ASUS Pundit P3-PH5 FLOPPY PIN 1 NOTE: Orient the red markings on the floppy ribbon cable to PIN 1.
  • Page 54 Primary IDE connector (40-1 pin PRI_EIDE) This connector is for an Ultra DMA 100/66 signal cable. The Ultra DMA 100/66 signal cable has three connectors: a blue connector for the primary IDE connector on the motherboard, a black connector for an Ultra DMA 100/66 IDE slave device (optical drive/hard disk drive), and a gray connector for an Ultra DMA 100/66 IDE master device (hard disk drive).
  • Page 55 Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! P5B-VM CPU Fan Connector ASUS Pundit P3-PH5 SATA1 SATA2 2000 Service Pack 4 or the Windows ®...
  • Page 56 USB connectors (10-1 pin USB56, USB78) These connectors are for USB 2.0 ports. Connect the USB/GAME module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed.
  • Page 57 Do not forget to connect the 4-pin ATX +12 V power plug; otherwise, the system will not boot up. • The system comes with a proprietary ATX 12 V Specification 2.0 power supply unit (PSU) with a minimum 275 W power rating. ASUS Pundit P3-PH5 EATX12V +12V DC +12V DC EATXPWR...
  • Page 58 Chassis intrusion connector (4-1 pin CHASSIS) This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced.
  • Page 59 This connector supports the 4-pin IEEE 1394 port on the system front panel. P5B-VM IEEE 1394a Connector Never connect a USB cable to the IEEE 1394 connector. Doing so will damage the motherboard! ASUS Pundit P3-PH5 Azalia-compliant Legacy AC’97-compliant pin definition...
  • Page 60 11. System panel connector (10-1 pin F_PANEL) This connector supports several chassis-mounted functions. System Panel Connector P5B-VM The sytem panel connector is color-coded for easy connection. Refer to the connector description below for details. • System power LED (Green 2-pin PWRLED) This 2-pin connector is for the system power LED.
  • Page 61 Chapter 5 This chapter tells how to change system settings through the BIOS Setup menus and describes the BIOS parameters. ASUS Pundit P3-PH5...

  • Page 62: Chapter 5: Bios Setup

    The following utilities allow you to manage and update the motherboard Basic Input/Output System (BIOS) setup. ASUS EZ Flash 2 (Updates the BIOS using a floppy disk, USB Flash, or the motherboard support CD during POST.) ASUS AFUDOS (Updates the BIOS in DOS mode using a bootable floppy disk.)

  • Page 63: Asus Ez Flash 2 Utility

    5.1.2 ASUS EZ Flash 2 utility The ASUS EZ Flash 2 feature allows you to update the BIOS without having to go through the long process of booting from a floppy disk and using a DOS-based utility. The EZ Flash 2 utility is built-in the BIOS chip so it is accessible by pressing <Alt>...

  • Page 64: Afudos Utility

    Main filename Press <Enter>. The utility copies the current BIOS file to the floppy disk. A:\>afudos /oOLDBIOS1.rom AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB)) Copyright (C) 2002 American Megatrends, Inc. All rights reserved. Reading flash ... done Write to file... ok A:\>...

  • Page 65: Updating The Bios File

    Updating the BIOS file To update the BIOS file using the AFUDOS utility: Visit the ASUS website (www.asus.com) and download the latest BIOS file for the motherboard. Save the BIOS file to a bootable floppy disk. Write the BIOS filename on a piece of paper. You need to type the exact BIOS filename at the DOS prompt.

  • Page 66: Asus Crashfree Bios 3 Utility

    5.1.4 ASUS CrashFree BIOS 3 utility The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can update a corrupted BIOS file using the motherboard support CD, the USB flash disk, or the floppy disk that contains the updated BIOS file.
  • Page 67 BIOS file and starts flashing the corrupted BIOS file. Restart the system after the utility completes the updating process. The recovered BIOS may not be the latest BIOS version for this motherboard. Visit the ASUS website (www.asus.com) to download the latest BIOS file. ASUS Pundit P3-PH5...

  • Page 68: Asus Update Utility

    DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure! 5.1.5 ASUS Update utility The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows • Save the current BIOS file •...
  • Page 69 Updating the BIOS through the Internet To update the BIOS through the Internet: Launch the ASUS Update utility from the Windows > Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update main window appears. Select Update BIOS from the Internet option from the drop-down menu, then click Next.
  • Page 70 Updating the BIOS through a BIOS file To update the BIOS through a BIOS file: Launch the ASUS Update utility from the Windows > Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update main window appears. Select Update BIOS from a file option from the drop-down menu, then click Next.

  • Page 71: Bios Setup Program

    The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. • Visit the ASUS website (www.asus.com) to download the latest BIOS file for this motherboard. ASUS Pundit P3-PH5...

  • Page 72: Bios Menu Screen

    5.2.1 BIOS menu screen Menu items Menu bar Main Advanced System Time System Date Legacy Diskette A SATA 1 SATA 2 IDE Configuration System Information v02.58 (C)Copyright 1985-2006, American Megatrends, Inc. Sub-menu items 5.2.2 Menu bar The menu bar on top of the screen has the following main items: Main For changing the basic system configuration Advanced...

  • Page 73: Menu Items

    <Page Down> keys to display the other items on the screen. 5.2.9 General help At the top right corner of the menu screen is a brief description of the selected item. ASUS Pundit P3-PH5 System Time [06:22:54] System Date [Fri 05/04/2006] Legacy Diskette A [1.44M, 3.5 in]...

  • Page 74: Main Menu

    Main menu When you enter the BIOS Setup program, the Main menu screen appears, giving you an overview of the basic system information. Refer to section “5.2.1 BIOS menu screen” for information on the menu screen items and how to navigate through them. Main Advanced System Time...

  • Page 75: Lba/Large Mode [Auto]

    When set to [Disabled], the data transfer from and to the device occurs one sector at a time. Configuration options: [Disabled] [Auto] ASUS Pundit P3-PH5 Select the type of device connected to the system.

  • Page 76: Ide Configuration

    PIO Mode [Auto] Selects the PIO mode. Configuration options: [Auto] [0] [1] [2] [3] [4] DMA Mode [Auto] Selects the DMA mode. Configuration options: [Auto] [SWDMA0] [SWDMA1] [SWDMA2] [MWDMA0] [MWDMA1] [MWDMA2] [UDMA0] [UDMA1] [UDMA2] [UDMA3] [UDMA4] [UDMA5] SMART Monitoring [Auto] Sets the Smart Monitoring, Analysis, and Reporting Technology.

  • Page 77: System Information

    Processor Type : Genuine Intel(R) CPU 2.80GHz Speed : 2800MHz Count System Memory Usable Size: 240MB AMI BIOS Displays the auto-detected BIOS information Processor Displays the auto-detected CPU specification System Memory Displays the auto-detected system memory ASUS Pundit P3-PH5 5-17...

  • Page 78: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Take caution when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. Jumperfree Configuration USB Configuration CPU Configuration Chipset...

  • Page 79: Dram Frequency [Auto]

    CPU installed. Setting to Auto allows the BIOS to detect the VCore voltage of the CPU installed. Refer to the CPU documentation before setting the CPU VCore voltage. A very high Vcore voltage can severely damage the CPU! ASUS Pundit P3-PH5 CPU External Frequency 266 MHz 200 MHz...

  • Page 80: Usb Configuration

    5.4.2 USB Configuration The items in this menu allows you to change the USB-related features. Select an item then press <Enter> to display the configuration options. USB Configuration Module Version - 2.24.0-11.4 USB Devices Enabled: 4 Drives Legacy USB Support Port 64/60 Emulation USB 2.0 Controller Mode BIOS EHCI Hand-Off...

  • Page 81: Cpu Configuration

    Execute Disable Bit [Enabled] Allows you to enable or disable the No-Execution Page Protection Technology. Setting this item to [Disabled] forces the XD feature flag to always return to zero (0). Configuration options: [Disabled] [Enabled] ASUS Pundit P3-PH5 BIOS SETUP UTILITY Disabled Enhanced...
  • Page 82 The following item appears only when you installed an Intel that supports the Hyperthreading Technology and Enhanced Intel SpeedStep Technology (EIST). Hyper-Threading Technology [Enabled] Allows you to enable or disable the processor Hyper-Threading Technology. Refer to the Appendix for more information on the Hyper-Threading Technology. Configuration options: [Disabled] [Enabled] Intel(R) SpeedStep Technology [Automatic] Allows you to use the Enhanced Intel SpeedStep...

  • Page 83: Chipset

    Configuration options: [IGD] [PCI/IGD] [PCI/PEG] [PEG/IGD] [PEG/PCI] Internal Graphic Mode Select [Enabled, 8MB] Allows you to select the amount of system memory used by the Internal graphics device. Configuration options: [Disabled] [Enabled,1MB] [Enabled, 8MB] ASUS Pundit P3-PH5 Configure North Bridge feature. malfunction. ENABLED: Allow...
  • Page 84 Fixed Graphic Memory Size [128MB] Allows you to select the Fixed graphic memory size. Configuration options: [0MB] [32MB] [64MB] [128MB] DVMT Graphic Memory Size [128MB] Allows you to select the DVMT graphic memory size. Configuration options: [0MB] [32MB] [64MB] [128MB] [224MB] PEG Force x1 [Disabled] Configuration options: [Enabled] [Disabled] 5-24...

  • Page 85: Onboard Devices Configuration

    Configuration options: [Disabled] [Enabled] JMicron SATA/PATA Controller [Enabled] Allows you to enable or disable the JMicron SATA/PATA controller. Configuration options: [Disabled] [Enabled] JMicron Controller Mode [Basic] Configuration options: [BASIC] [AHCI] ASUS Pundit P3-PH5 Enable or Diable High Definition Audio Controller [Enabled] [HD Audio]...

  • Page 86: Serial Port1 Address [3F8/Irq4]

    Serial Port1 Address [3F8/IRQ4] Allows you to select the Serial Port1 base address. Configuration options: [Disabled] [3F8/IRQ4][2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3] Parallel Port Address [378] Allows you to select the Parallel Port base addresses. Configuration options: [Disabled] [378] [278] [3BC] Parallel Port Mode [ECP] Allows you to select the Parallel Port mode.

  • Page 87: Pci Pnp

    When set to [Enabled], the pallete snooping feature informs the PCI devices that an ISA graphics device is installed in the system so that the latter can function correctly. Configuration options: [Disabled] [Enabled] ASUS Pundit P3-PH5 NO: Lets the BIOS configure all the devices in the system.

  • Page 88: Power Menu

    IRQ-xx assigned to [PCI Device] When set to [PCI Device], the specific IRQ is free for use of PCI/PnP devices. When set to [Reserved], the IRQ is reserved for legacy ISA devices. Configuration options: [PCI Device] [Reserved] Power menu The Power menu items allow you to change the settings for the Advanced Power Management (APM).

  • Page 89: Apm Configuration

    Configuration options: [Disabled] [Enabled] Power On By PCIE Devices [Disabled] Allows you to enable or disable the PCIE devices to generate a wake event. Configuration options: [Disabled] [Enabled] ASUS Pundit P3-PH5 <Enter> to select whether or not to restart the system [Power Off] after AC power loss.

  • Page 90: Hardware Monitor

    CPU Fan Speed (RPM) VCORE Voltage 3.3V Voltage 5V Voltage 12V Voltage ASUS Advanced Q-Fan Control Fan Profile CPU Temperature [xxxºC/xxxºF] MB Temperature [xxxºC/xxxºF] The onboard hardware monitor automatically detects and displays the motherboard and CPU temperatures. Select Ignored if you do not wish to display the detected temperatures.

  • Page 91: Boot Menu

    Fan Profile [Enabled] Allows you to select the ASUS Advanced Q-Fan control. Configuration options: [Disabled] [Enabled] Boot menu The Boot menu items allow you to change the system boot options. Select an item then press <Enter> to display the sub-menu.

  • Page 92: Boot Settings Configuration

    This allows you to enable or disable the full screen logo display feature. Configuration options: [Disabled] [Enabled] Set this item to [Enabled] to use the ASUS MyLogo2™ feature. Add On ROM Display Mode [Force BIOS] Sets the display mode for option ROM.

  • Page 93: Interrupt 19 Capture [Disabled]

    If you forget your BIOS password, you can clear clear it by erasing the CMOS Real Time Clock (RTC) RAM. See section “4.2 Jumpers” for information on how to erase the RTC RAM. ASUS Pundit P3-PH5 BIOS SETUP UTILITY Boot <Enter>...

  • Page 94: Change User Password

    After you have set a supervisor password, the other items appear to allow you to change other security settings. 4.6.1 Boot Device Priority Security Settings Supervisor Password User Password Change Supervisor Password User Access Level Change User Password Clear User Password Password Check User Access Level [Full Access] This item allows you to select the access restriction to the Setup items.

  • Page 95: Password Check [Setup]

    5.7.1 ASUS EZ Flash 2 Allows you to run ASUS EZ Flash 2. When you press <Enter>, a confirmation message appears. Use the left/right arrow key to select between [Yes] or [No], then press <Enter> to confirm your choice. Please see section 5.1.2 for details.

  • Page 96: Exit Menu

    Exit menu The Exit menu items allow you to load the optimal or failsafe default values for the BIOS items, and save or discard your changes to the BIOS items. Main Advanced Exit Options Exit & Save Changes Exit & Discard Changes Discard Changes Load Setup Defaults Pressing <Esc>...

  • Page 97: Appendix: Cpu Features

    Appendix The Appendix describes the CPU features and technologies that the system supports. ASUS Pundit P3-PH5...

  • Page 98: A.2.1 System Requirements

    32-bit operating systems. • The motherboard comes with a BIOS file that supports EM64T. You can download the latest BIOS file from the ASUS website (www.asus.com/ support/download/) if you need to update the BIOS file. See Chapter 5 for details.

  • Page 99: Using The Eist

    Click Apply, then click OK. 10. Close the Display Properties window. After you adjust the power scheme, the CPU internal frequency slightly decreases when the CPU loading is low. The screen displays and procedures may vary depending on the operating system. ASUS Pundit P3-PH5...

  • Page 100: Intel ® Hyper-Threading Technology

    Intel ® • The motherboard supports Intel Hyper-Threading Technology. • Hyper-Threading Technology is supported under Windows and Linux 2.4.x (kernel) and later versions only. Under Linux, use the Hyper-Threading compiler to compile the code. If you are using any other operating systems, disable the Hyper-Threading Techonology item in the BIOS to ensure system stability and performance.
