UAEX and card reader modules
The system front I/O panel has two modules, the UAEX and a card reader,
that contain the front panel I/O ports and the connectors to the
motherboard.

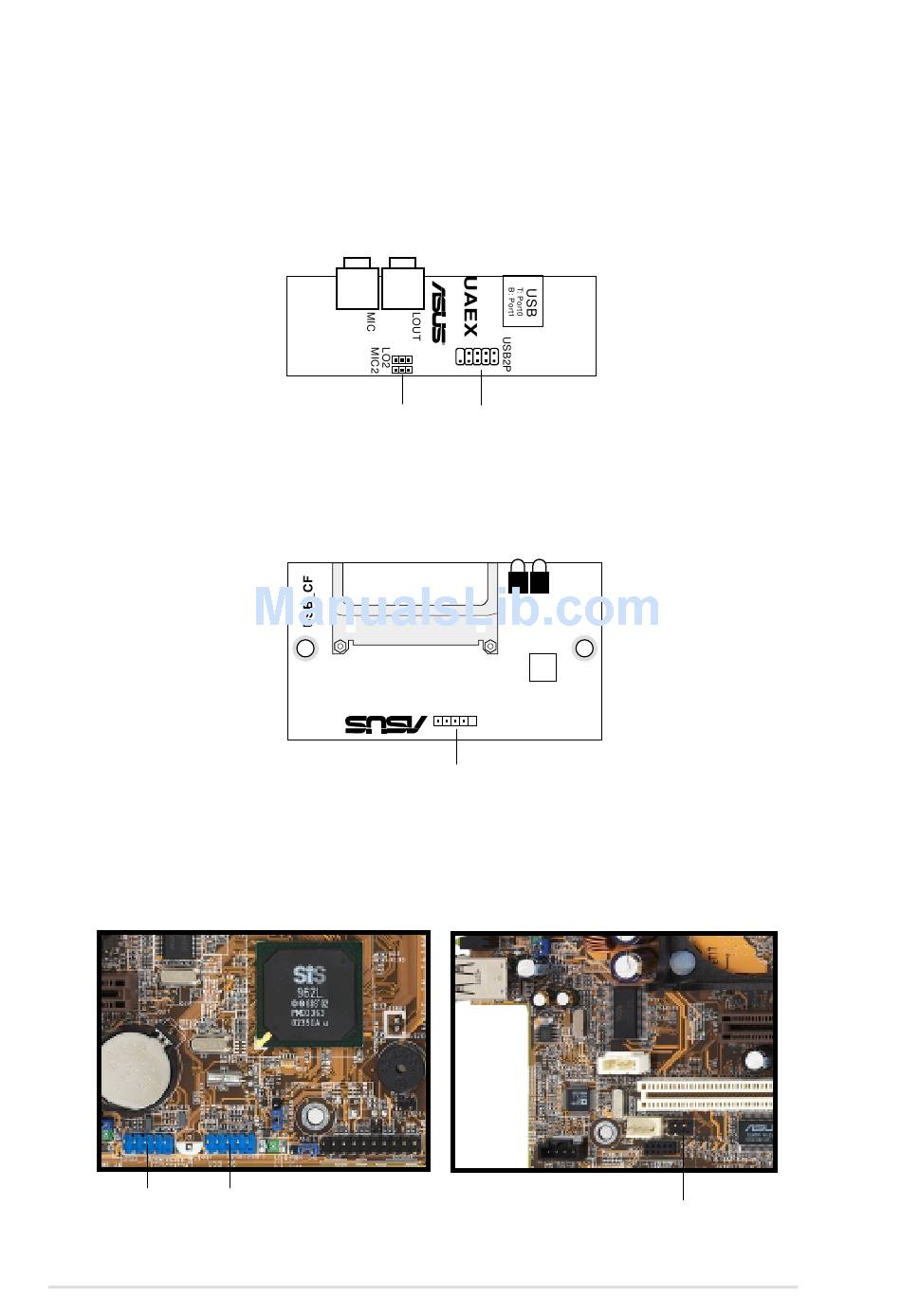

UAEX module
Connect to MIC_LOUT1 connector
on the motherboard
CF Card Reader module
Connector locations on the motherboard
USB_34 USB_56
30
Connect to USB_34 connector
on the motherboard
LED3 LED2
CON1
J1
®
Connect to USB_56 connector
on the motherboard
MIC_LOUT1 connector
(for Microphone/Line Out Cable)
