2.3 Install a CPU
The P4SC-EA motherboard comes with a surface mount 478-pin Zero
Insertion Force (ZIF) socket. This socket is specifically designed for the
Intel
Pentium
4 478/Northwood Processor.
®
®
Follow these steps to install a CPU.
1.

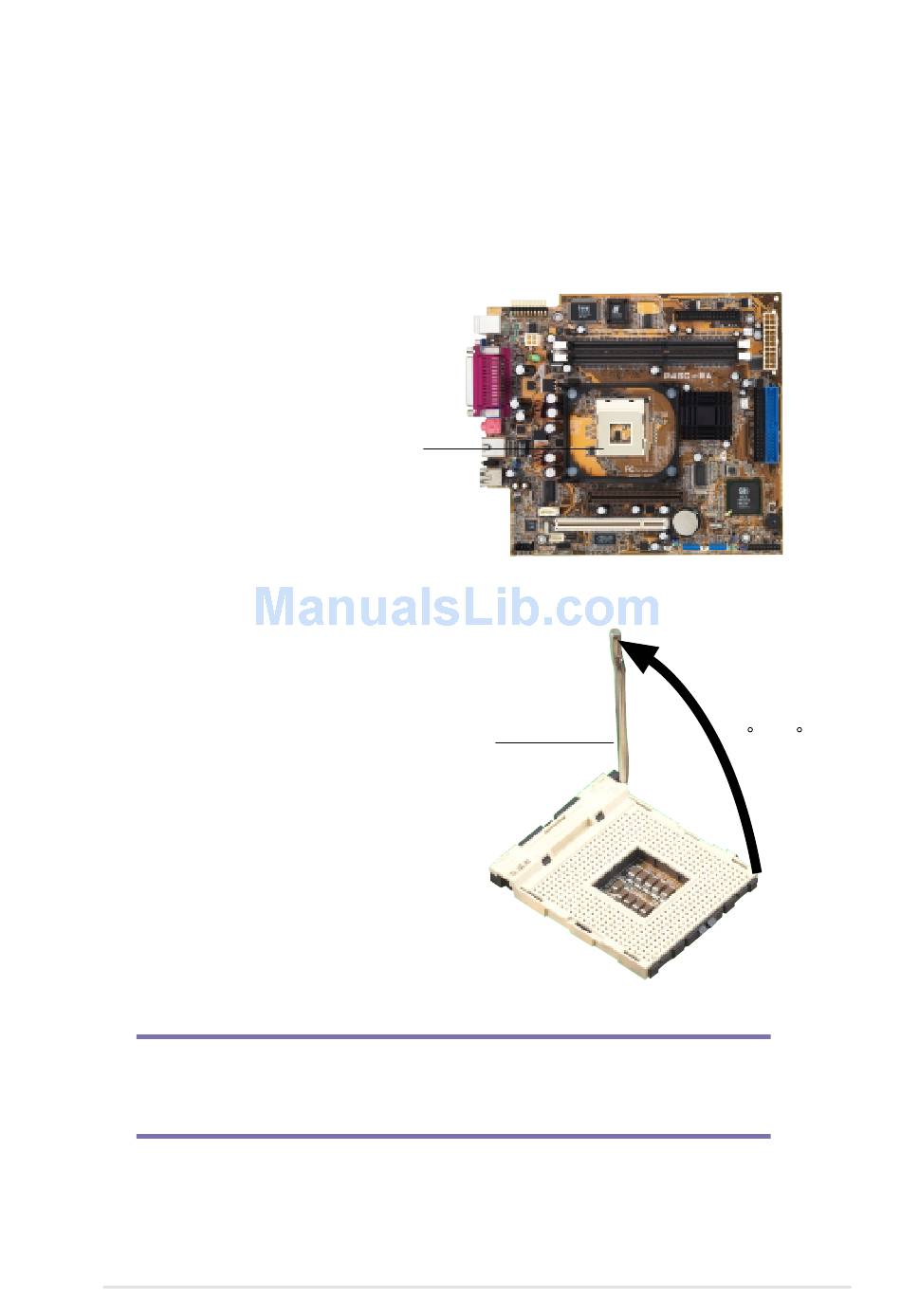

Locate the 478-pin CPU
socket on the motherboard.
478-pin CPU socket
2.
Unlock the socket by pressing
the lever sideways then lifting
it up to a 90°-100° angle.
IMPORTANT
Make sure that the socket lever is lifted up to 90°-100° angle, otherwise
the CPU does not fit in completely.
ASUS Terminator P4 533A Barebone System
Socket lever
90 - 100
