2.10 Replace the cover

After you have installed all the internal components and you have
connected all the necessary cables, you are now ready to put the system
back together.
Follow these steps to re-assemble
the system.

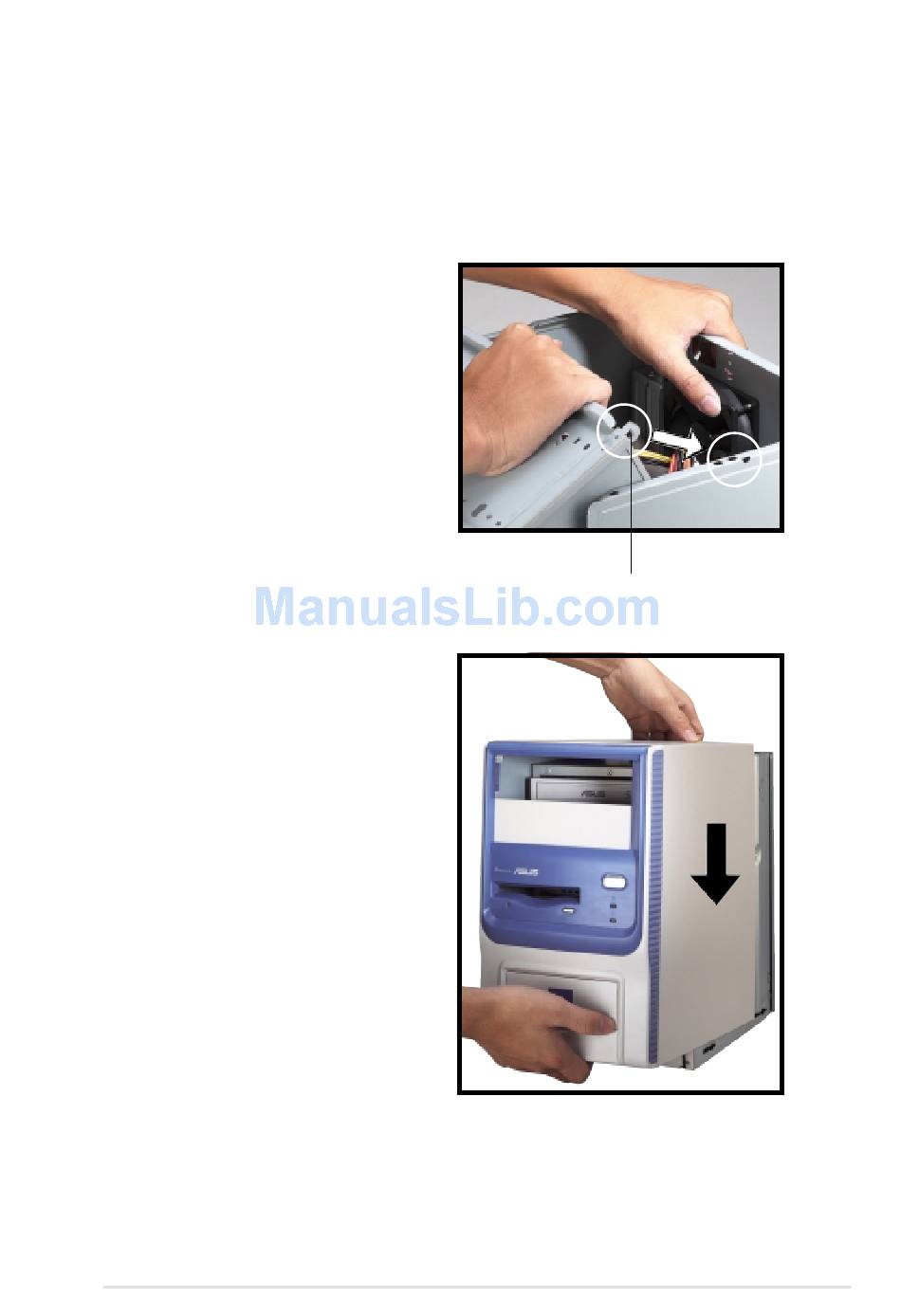

1. With the chassis lying on its
side, hook the swivel edge of
the drive frame to the main
chassis.
2. Sway the drive frame inward
until it fits completely. The
protruding tabs on both ends
of the drive frame should snap
perfectly to the chassis edge.
3. Turn the chassis upright.
4. Place the cover over the
chassis leaving about two
inches from the rear panel.
ASUS Terminator P4 533A Barebone System
Protruding Tab
31
