2.5 Install a Hard Disk Drive
The chassis has one 3.5-inch hard disk drive (HDD) bay right under
the 5.25-inch bay. The following figures show the internal and external

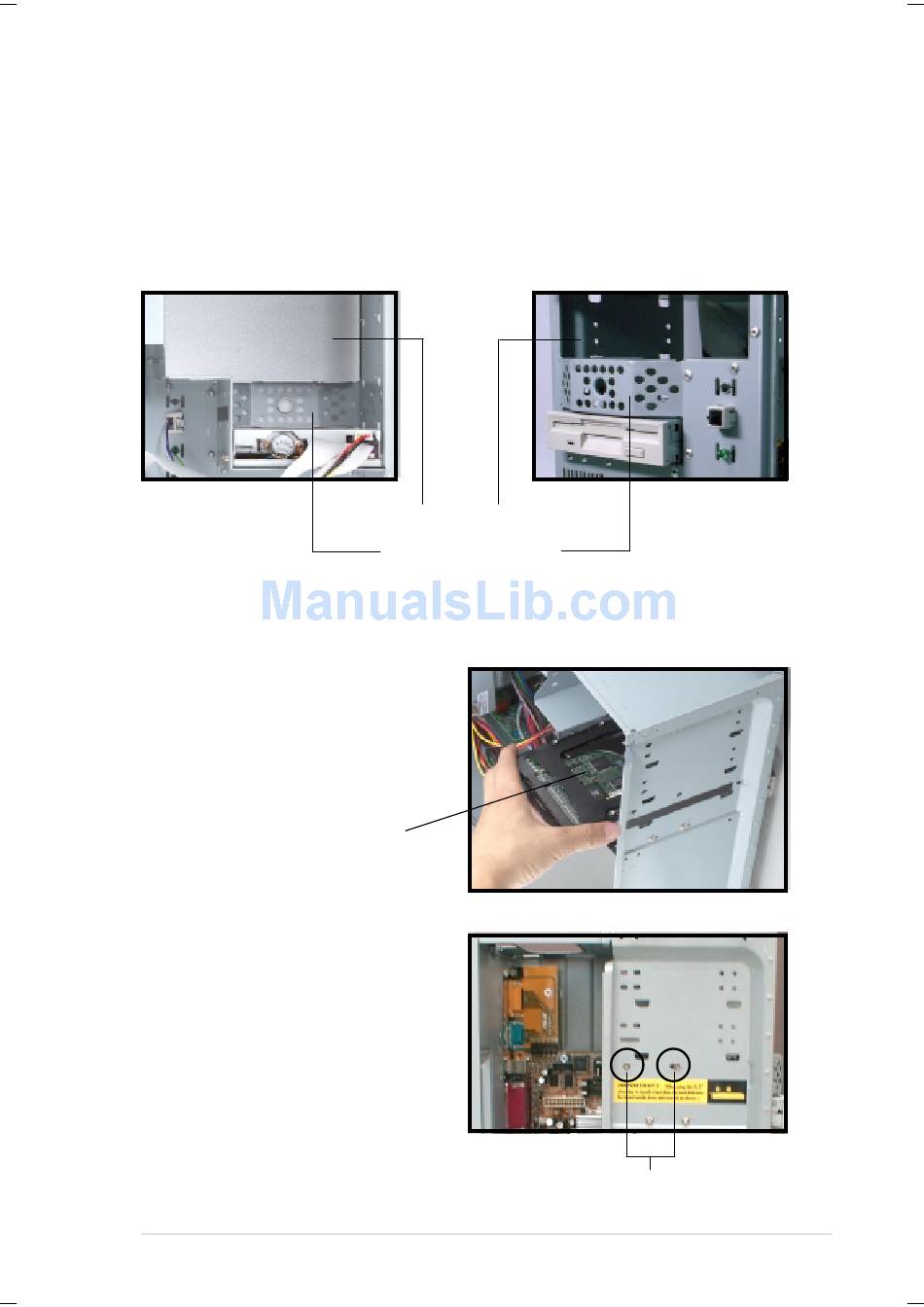

views of the HDD bay location.
Internal View
Follow these steps to install an
IDE HDD.
1. Place the chassis upright.
2. With its component side up,
carefully insert the HDD into
the 3.5-inch bay.
HDD Component Side
3. Carefully push the HDD into
the bay until its screw holes
align with the holes on the bay.
4. Secure the HDD with two
screws on each side of the
bay.
ASUS Terminator Barebone System
5.25-inch Drive Bay
3.5-inch HDD Drive Bay
External View
HDD Screws
19
