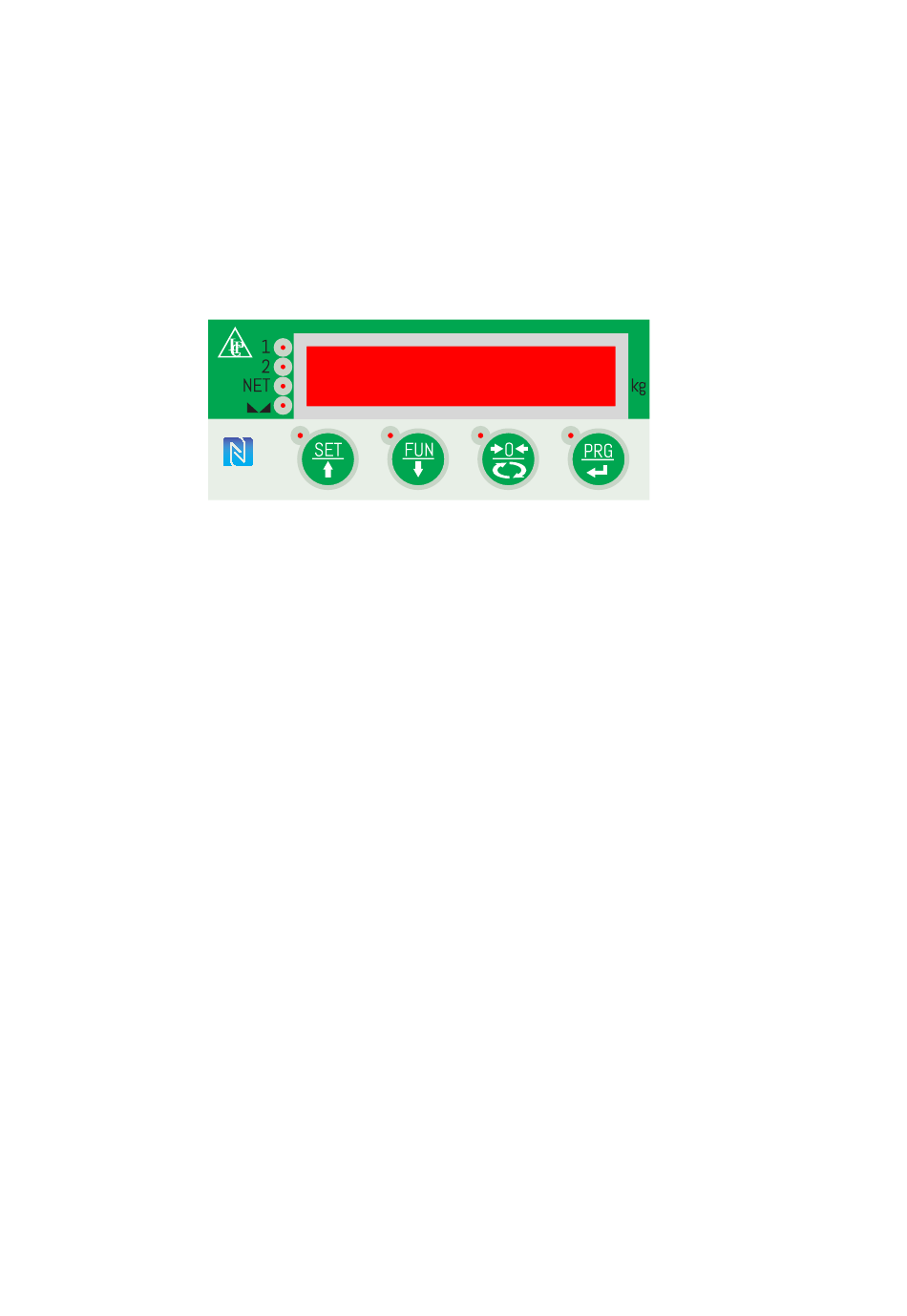

FRONT PANEL OF THE INSTRUMENT

The DAT 1400 has a 6-digit lit display, 4 status LEDs and four keys with corresponding LEDs for con-
firming pressing of the key.
In operating mode, the display shows the weight and the LEDs indicate the status of weight and theset-
points.
The set-up parameters are easily accessed and modified using the three buttons on the front to select,
edit, confirm and save the new settings.
DAT 1400
DISPLAY
The 6-digit display normally shows the weight on the scale. According to the various programming
procedures, the display is used for programming the parameters to be stored in the memory, i.e. the
messages that indicate the type of operation in progress and, therefore, help the Operator to manage
and program the instrument.
STAND-BY FUNCTION
The display can take on the stand-by mode, during which time the display brightness is reduced and
the keypad is locked. All other functions of the instrument are up and running.
See the paragraph on the activation / deactivation of the stand-by mode.
LED INDICATORS
To the left of the display there are 4 LED indicators:
1 State of the logic output 1 (ON = closed contact OFF = open contact)
2 State of the logic output 2 (ON = closed contact OFF = open contact)
NET The displayed value is the net weight
> < indicates the condition of stable weight.
Next to each button is also a LED that indicates when the button is pressed.
