GENERAL DATA
The DAT 1400 comprises a motherboard, to which various options can be added; the motherboard is
housed in a plastic 35mm DIN rail mount enclosure.
The DAT 1400 should not be immersed in water, subjected to jets of water, and cleaned
orwashed with solvents.
Do not expose to heat or direct sunlight.
Do not install the instrument near power equipment (motors, inverters, contactors, etc.) or
anyhow equipment that does not comply with CE standards for electromagnetic compatibility.
The connection cable for the load cells must have a maximum length of 140mt/mm2.
The RS232 serial line must have a maximum length of 15 meters (standard EIA RS-232-C).
The recommendations given for connecting the individual devices must be adhered to.

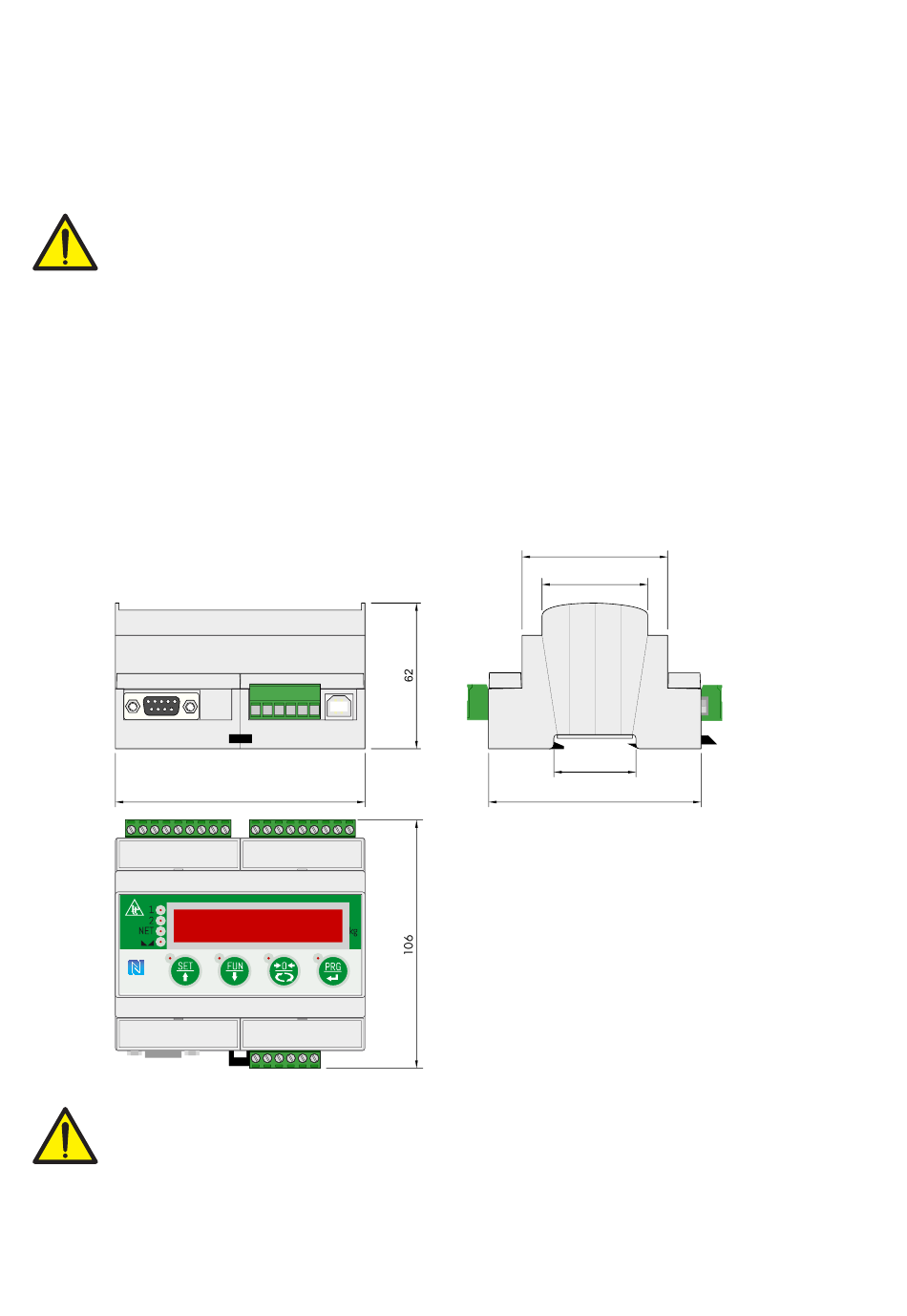

OVERALL DIMENSIONS
ELECTRICAL INSTALLATION
DAT 1400
The transmitter DAT 1400 uses removable screw terminal boards with a pitch of 5.08 mm,
for electrical connection. The load cell cable must be shielded and channelled away from
power cables to prevent electromagnetic interference.
Page 6
INSTALLATION
106,3
62
45
35
90,5
