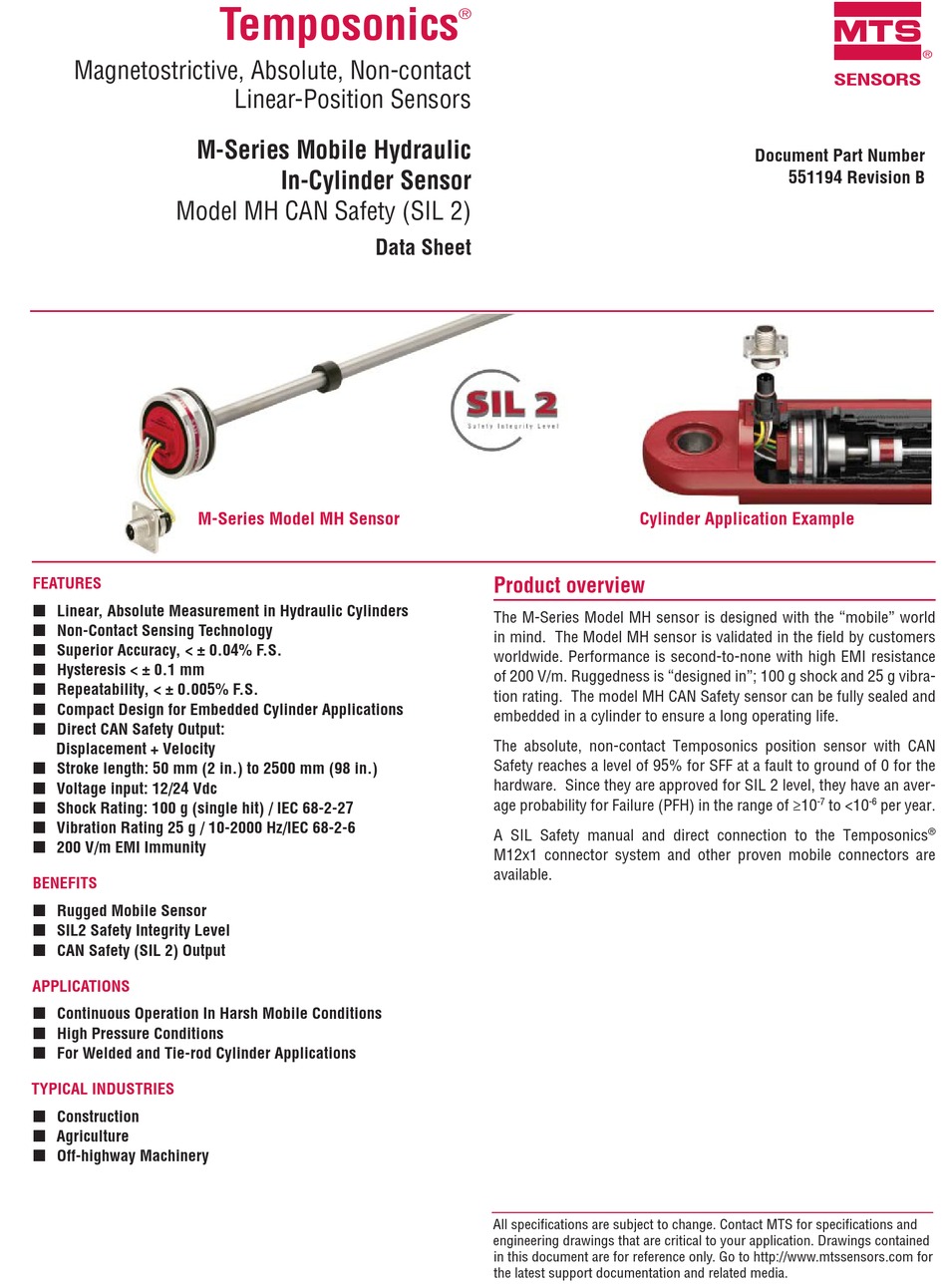

MTS Sensors Temposonics M Series Datasheet

Magnetostrictive, Absolute, Non-contact
M-Series Mobile Hydraulic
Model MH CAN Safety (SIL 2)
M-Series Model MH Sensor
FEATURES
 Linear, Absolute Measurement in Hydraulic Cylinders
 Non-Contact Sensing Technology
 Superior Accuracy, < ± 0.04% F.S.
 Hysteresis < ± 0.1 mm
 Repeatability, < ± 0.005% F.S.
 Compact Design for Embedded Cylinder Applications
 Direct CAN Safety Output:
Displacement + Velocity
 Stroke length: 50 mm (2 in.) to 2500 mm (98 in.)
 Voltage input: 12/24 Vdc
 Shock Rating: 100 g (single hit) / IEC 68-2-27
 Vibration Rating 25 g / 10-2000 Hz/IEC 68-2-6
 200 V/m EMI Immunity
BENEFITS
 Rugged Mobile Sensor
 SIL2 Safety Integrity Level
 CAN Safety (SIL 2) Output
APPLICATIONS
 Continuous Operation In Harsh Mobile Conditions
 High Pressure Conditions
 For Welded and Tie-rod Cylinder Applications
TYPICAL INDUSTRIES
 Construction
 Agriculture
 Off-highway Machinery
Temposonics
Linear-Position Sensors
In-Cylinder Sensor
Data Sheet
®
Cylinder Application Example
Product overview
The M-Series Model MH sensor is designed with the "mobile" world
in mind. The Model MH sensor is validated in the field by customers
worldwide. Performance is second-to-none with high EMI resistance
of 200 V/m. Ruggedness is "designed in"; 100 g shock and 25 g vibra-
tion rating. The model MH CAN Safety sensor can be fully sealed and
embedded in a cylinder to ensure a long operating life.
The absolute, non-contact Temposonics position sensor with CAN
Safety reaches a level of 95% for SFF at a fault to ground of 0 for the
hardware. Since they are approved for SIL 2 level, they have an aver-
age probability for Failure (PFH) in the range of ≥10
A SIL Safety manual and direct connection to the Temposonics
M12x1 connector system and other proven mobile connectors are
available.
All specifications are subject to change. Contact MTS for specifications and
engineering drawings that are critical to your application. Drawings contained
in this document are for reference only. Go to http://www.mtssensors.com for
the latest support documentation and related media.
®
SENS RS
O
Document Part Number
551194 Revision B
-7 to <10 -6 per year.
®
