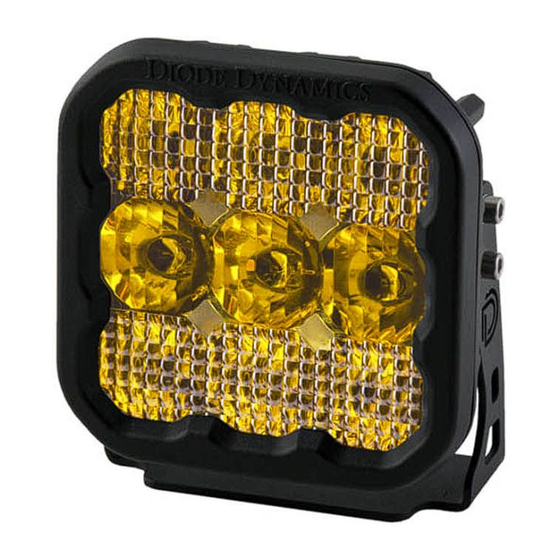

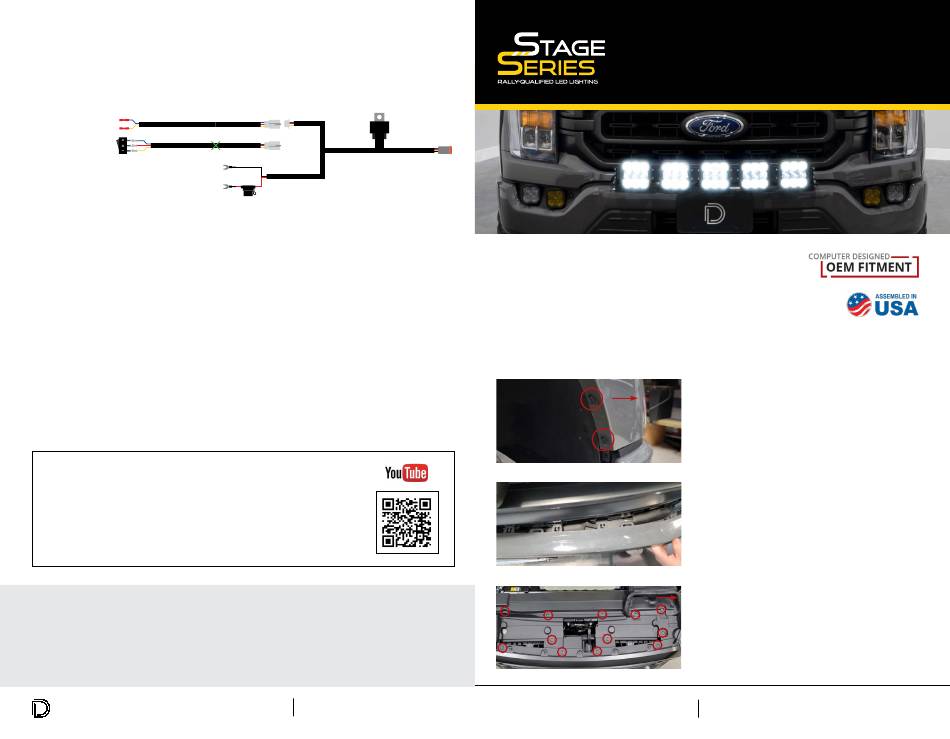

Diode Dynamics SS5 Quick Start Manual

Wiring Instructions

The following instructions are for Ford F-150s with an Auxiliary Switch Bank. If you do not have
the Auxiliary Switch Bank, use the included toggle switch adapter wire to route a switch. All
power sources must be fused.
Backlight Wire
Main Beam Wire
3-Way Offroad Light Switch
NOT USED
Factory Grounding Point
Power Input Wire
15. Locate the auxiliary switch wiring near the battery. Access the owner's manual in the
head unit and determine what wire color you will connect to based on the amperage rating.
Connect the yellow wire for the main beam to an auxiliary switch wire. Using wire strippers,
remove enough insulation to make a good connection. Insert the wire into the butt
connector and crimp it to secure the connection.
16. Repeat this process for the blue backlight wire. The wire for the backlight can be
connected to any of the other auxiliary switch wiring locations, like the back of the hood,
or if you have a Stage Series backlit light already installed, you may choose to tap it into
the same switch.
17. Connect positive and negative battery wires to the battery, or to main power terminals
near the fuse box.
18. Secure the wires, test thoroughly, and tighten all hardware to complete your installation.
Please contact Diode Dynamics should you have any questions about the installation
or wiring process, at 314-205-3033 (10a-5p CST) or contact@diodedynamics.com.
NEED MORE HELP?
Scan the QR code to link to our YouTube Channel!
We continuously bring in vehicles to our testing garage in order to
create step-by-step videos to walk you through the installation process
on your specific vehicle. Scan the QR code to see all our installation
videos. Be sure to subscribe to our channel to stay up-to-date on the
newest products and videos from Diode Dynamics!
This installation guide is for the following SKUs:
Ford F150 2021 SS5 CrossLink Grille Lightbar Kit, White Combo (DD7317 Sport, DD7321 Pro)
Ford F150 2021 SS5 CrossLink Grille Lightbar Kit, Yellow Combo (DD7318 Sport, DD7322 Pro)
Ford F150 2021 SS5 CrossLink Grille Lightbar Kit, White Driving (DD7319 Sport, DD7323 Pro)
Ford F150 2021 SS5 CrossLink Grille Lightbar Kit, Yellow Driving (DD7320 Sport, DD7324 Pro)
Ford F150 2021 SS5 Bumper LED Pod Kit, White Combo (DD7326 Sport, DD7330 Pro)
Ford F150 2021 SS5 Bumper LED Pod Kit, Yellow Combo (DD7327 Sport, DD7331 Pro)
Ford F150 2021 SS5 Bumper LED Pod Kit, White Driving (DD7328 Sport, DD7332 Pro)
Ford F150 2021 SS5 Bumper LED Pod Kit, Yellow Driving (DD7329 Sport, DD7333 Pro)
PAGE 4 (314) 205-3033
PP0197
RELAY RELAY
RELAY
RELAY
WWW.DIODEDYNAMICS.COM
SS
Thank you for your purchase of our new SS5 CrossLink
Bumper/Grille Kit. CAD-designed to use existing mounting
points, this kit is compatible with the 2021+ Ford F-150.
Installation instructions are included inside.
Please contact us if you have any questions.
Tools Needed: Trim removal tool, ratchet, 7mm socket, 8mm socket, 10mm socket,
13mm socket, 5mm Allen wrench
(314) 205-3033
Ford F - 150
5 CrossLink Bumper/Grille Kit
1. Using a 7mm socket, remove the the screws
securing the fender liner to the upper bumper
valance and pull the sides of the valance loose
from the fender well and the fender.
2. Repeat step one on the opposite side of the
vehicle and pull the valance off entirely, starting
from the outside and pulling the tabs loose
working your the way to the middle.
3. Remove the trim panel on the radiator core
support by pulling out the 13 tree clips
securing it.
See inside for further instructions.
WWW.DIODEDYNAMICS.COM PAGE 1
