Diode Dynamics STAGE Series Quick Start Manual

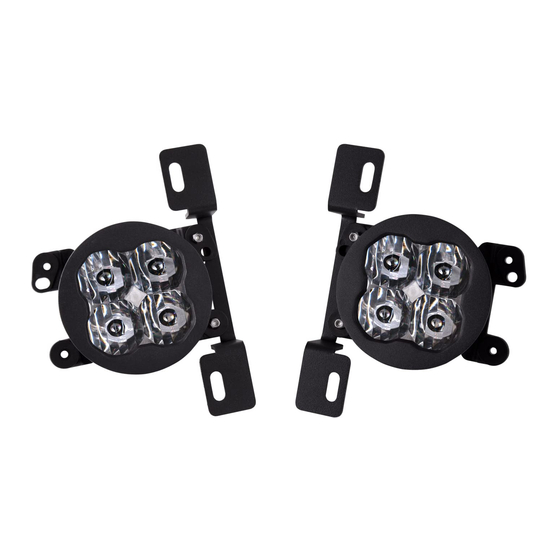

Thank you for your purchase of our new SS3 Type MR Foglight Kit. CAD-designed to use
existing mounting points, this kit allows you to mount Diode Dynamics SS3 LED Pods in the
factory foglamp location on JK and JL Jeep Wrangers with factory-installed steel bumpers.
PLEASE NOTE: The Type MR steel brackets in this kit must be attached to Type M plastic
brackets, and together form the Type MR Kit. Depending on your purchase, you may also
have the base Type M brackets in your package. Please contact your retailer with
any questions.
Instructions are shown below for installation of both the base Type M bracket, and the
additional Type MR steel brackets.
Passenger/Right Side (opposite for driver/left side)
1. Using the larger hardware included, attach the
main plastic bracket to the pod. Make sure the
bracket is in the correct orientation.
PAGE 1
SS
3" LED Pod
3
Type MR Foglight Kit
TOP
BOTTOM
See back for further instructions.
