13. When desired aiming is reached, gently remove the assembly to fully tighten the 5/32"
allen bolts down. Do not overtighten or use power tools to torque them down.
14. Reinstall the assembly on the vehicle. There will be a slight gap between the bracket's
bezel and bumper opening. Ensure the lamp is centered in the fog pocket with even gaps
around the bezel.
15. Reinstall the splash guard using the OEM push rivets to complete installation.
Measure lamp height to center
This installation guide is for the following SKUs:
DD6635 Worklight SS3 Sport Type OB Kit White SAE Driving
DD6636 Worklight SS3 Sport Type OB Kit White SAE Fog
DD6637 Worklight SS3 Sport Type OB Kit Yellow SAE Fog
DD6638 Worklight SS3 Pro Type OB Kit White SAE Driving
8
100% SATISFACTION
GUARANTEE
year
w arranty
PP0081
PP0145D
Level
Four (4) inches
Top of
Beam
25 feet
DD6639 Worklight SS3 Pro Type OB Kit White SAE Fog
DD6640 Worklight SS3 Pro Type OB Kit Yellow SAE Fog
DD6708 Worklight SS3 Max Type OB Kit White SAE Fog
DD6709 Worklight SS3 Max Type OB Kit Yellow SAE Fog
Thank you for your purchase of our new SS3 Type OB Foglight
Kit. CAD-designed to use existing mounting points, this kit is
compatible with the 2005-2009 and 2013-2019 Subaru Outback.
Basic installation instructions are included below.
Please contact us if you have any questions.
M6 Carriage Bolts
Left and Right Sides
1. Install the two included M6 carriage bolts on the bracket as shown above. We recommend
using a small amount of adhesive to prevent them from falling out during installation.
2. Install the supplied nuts into the pod housing with the nylon facing inward. Attach the
bracket to the pod using the supplied screws and washers. Make sure the bracket is in the
correct orientation. See diagrams above. Ensure that the screws are tightened such that
the pod retains its position, but can pivot with force for aiming.
SS

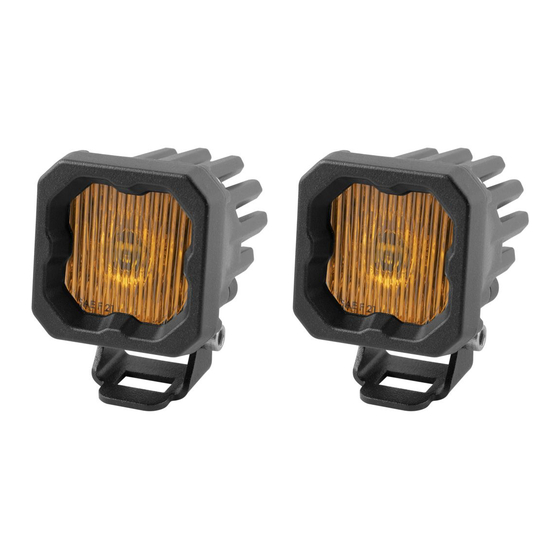

3" LED Pod
3
Type OB Foglight Kit
TOP
BOTTOM
See inside for further instructions.
Advertisement
Related Manuals for Diode Dynamics STAGE Series
Summary of Contents for Diode Dynamics STAGE Series
- Page 1 PP0081 PP0145D 3” LED Pod Type OB Foglight Kit 13. When desired aiming is reached, gently remove the assembly to fully tighten the 5/32” allen bolts down. Do not overtighten or use power tools to torque them down. 14. Reinstall the assembly on the vehicle. There will be a slight gap between the bracket’s bezel and bumper opening.
- Page 2 Aiming Instructions 3. Use a plastic trim removal tool to remove the four push rivets on the outer splash guard. Gently pry the splash guard down to gain access 8. Park your vehicle 25 feet away from a wall to the fog lights. The splash guard will still be or garage door on a level surface.
