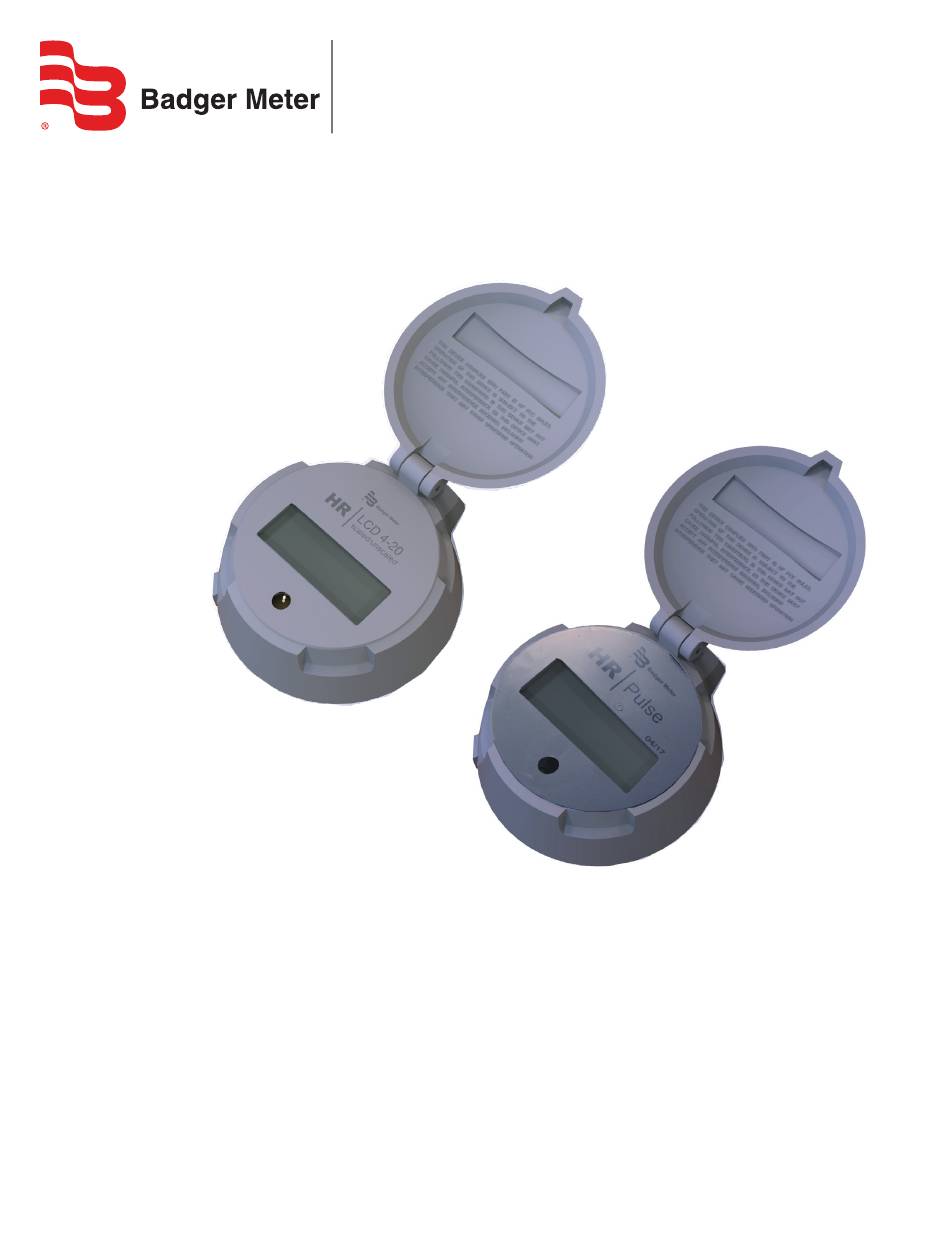

- Page 1 High Resolution LCD Registers HR-LCD 4-20 scaled/unscaled, HR-LCD Pulse User Manual REG-UM-02466-EN-02 (April 2020)
- Page 2 High Resolution LCD Registers, HR-LCD 4-20 scaled/unscaled, HR-LCD Pulse Page ii REG-UM-02466-EN-02 April 2020...
-
Page 3: Table Of Contents
Specifications HR-LCD 4-20 scaled/unscaled . . . . . . . . . . . . . . . . . . - Page 4 High Resolution LCD Registers, HR-LCD 4-20 scaled/unscaled, HR-LCD Pulse Page iv REG-UM-02466-EN-02 April 2020...
-
Page 5: Introduction
This is the user manual for the High Resolution (HR) LCD registers . Audience and Purpose This manual is intended to be used by customers for installing and using the HR-LCD 4-20 scaled/unscaled and pulse registers . Product Unpacking and Inspection Upon opening the shipping container, visually inspect the product and applicable accessories for any physical damage such as scratches, loose or broken parts, or any other sign of damage that may have occurred during shipment . -
Page 6: Product Overview
Product Overview PRODUCT OVERVIEW LCD Display HR-LCD registers have a nine-digit Liquid Crystal Display (LCD) to show consumption, flow and alarm information . There is no need to activate the display . The display automatically toggles between consumption (segmented leak detector in this mode), rate of flow and meter model . -
Page 7: Rate Of Flow
Installing the Register Rate of Flow The rate of flow is factory programmed to gallons per minute . The device displays both the unit of measure and rate of flow . The rate of flow display is shown without leading zeros . A reverse flow is indicated by a minus sign before the flow rate . The displayed rate will be based on the average flow rate for the prior minute (since the last time the flow rate was displayed) . -
Page 8: Lcd 4-20 Scaled/Unscaled

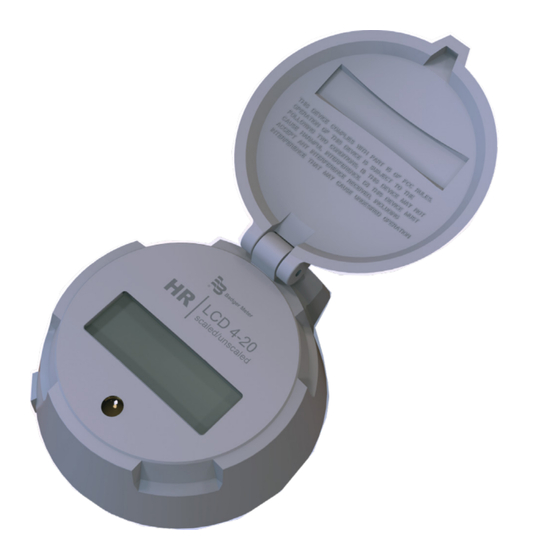

HR-LCD 4-20 scaled/unscaled HR-LCD 4-20 SCALED/UNSCALED The HR-LCD 4-20 scaled/unscaled is a permanently sealed, electronic LCD register that produces a scaled/unscaled output as well as an analog 4-20 mA DC output signal with a dual output wire design . Refer to... -
Page 9: Specifications Hr-Lcd 4-20 Scaled/Unscaled
HR-LCD 4-20 scaled/unscaled Specifications HR-LCD 4-20 scaled/unscaled Register Type Permanently sealed, electronic LCD register with scaled/unscaled and analog output, as well as a field-programmable option Register Display Status indicators, unit of measure, billing units, automatic toggle between 9-digit consumption, rate of flow, meter model Unit of Measure U .S . -
Page 10: Lcd Pulse
HR-LCD Pulse HR-LCD PULSE The HR-LCD pulse is a permanently sealed, electronic LCD register that produces a scaled output . The HR-LCD scaled pulse register is available with a single output wire connection . Refer to Figure Wire Connections Scaled output cable (Flying lead for field splice connection) wire (positive) and the black wire (negative) . -
Page 11: Specifications Hr Lcd Pulse
HR-LCD Pulse Specifications HR LCD Pulse Register Type Permanently sealed, electronic LCD register with scaled output, as well as a field-programmable option Register Display Status indicators, unit of measure, billing units, automatic toggle between 9-digit consumption, rate of flow, meter model Unit of Measure U .S . -
Page 12: Status Indicators
Trademarks appearing in this document are the property of their respective entities . Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specifications without notice, except to the extent an outstanding contractual obligation exists . © 2020 Badger Meter, Inc . All rights reserved .
