DS100 Interference and Direction Analyzer User Manual

1 Instrument overview

The DS100 Interference and Directional Analyzer is a handheld instrument designed for radio
monitoring with spectrum analysis, signal demodulation, interference troubleshooting, and
directional mode. With features such as rich functions, excellent performance and convenient
operation, it is an ideal instrument for field signal detection and analysis.
The instrument has built-in and integrated receiver, direction finder, cluster signal analyzer,road
measurement analyzer and other optional accessories. Users can also quickly deploy our
directional antennas to the roof and use the controller for concealed monitoring in the car.

2 About Instrument

2.1 Interface

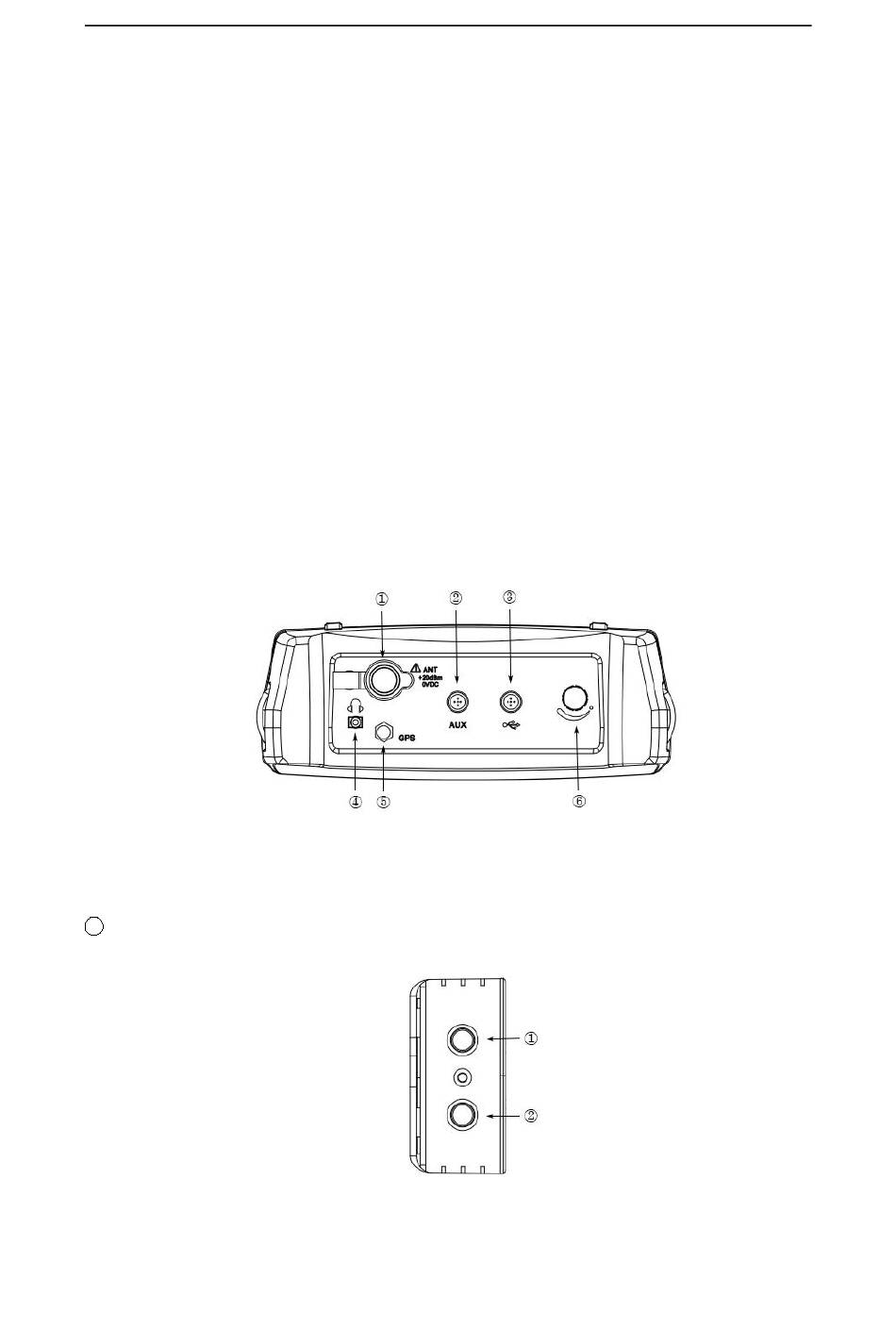

Upper panel
① N-type antenna interface ② Serial/antenna data and control interface ③ USB2.0 tablet
interface ④Headphone interface ⑤GPS antenna interface ⑥Volume knob
Fig.2-1 Upper panel
Left panel
IF Output ②REF Input
1
Fig.2-2 Left panel
2
