Set the marks: press the panel key <DISP>, click the virtual key <Mark> to Enter the Mark menu.
Click the key <M> or the key <D>, change the frequency value using the up and down keys or
spinning wheel, and press Enter to confirm.

4.2 FSCAN

FSCAN: The instrument can continuously scan radio signals in a certain frequency range
according to the preset scan step. The instrument presets a channel table, which can edit
frequency dwell time, no signal time, scan time, etc. Suppression frequency list can be edited,
one key to record the current frequency point set to the suppression frequency list.

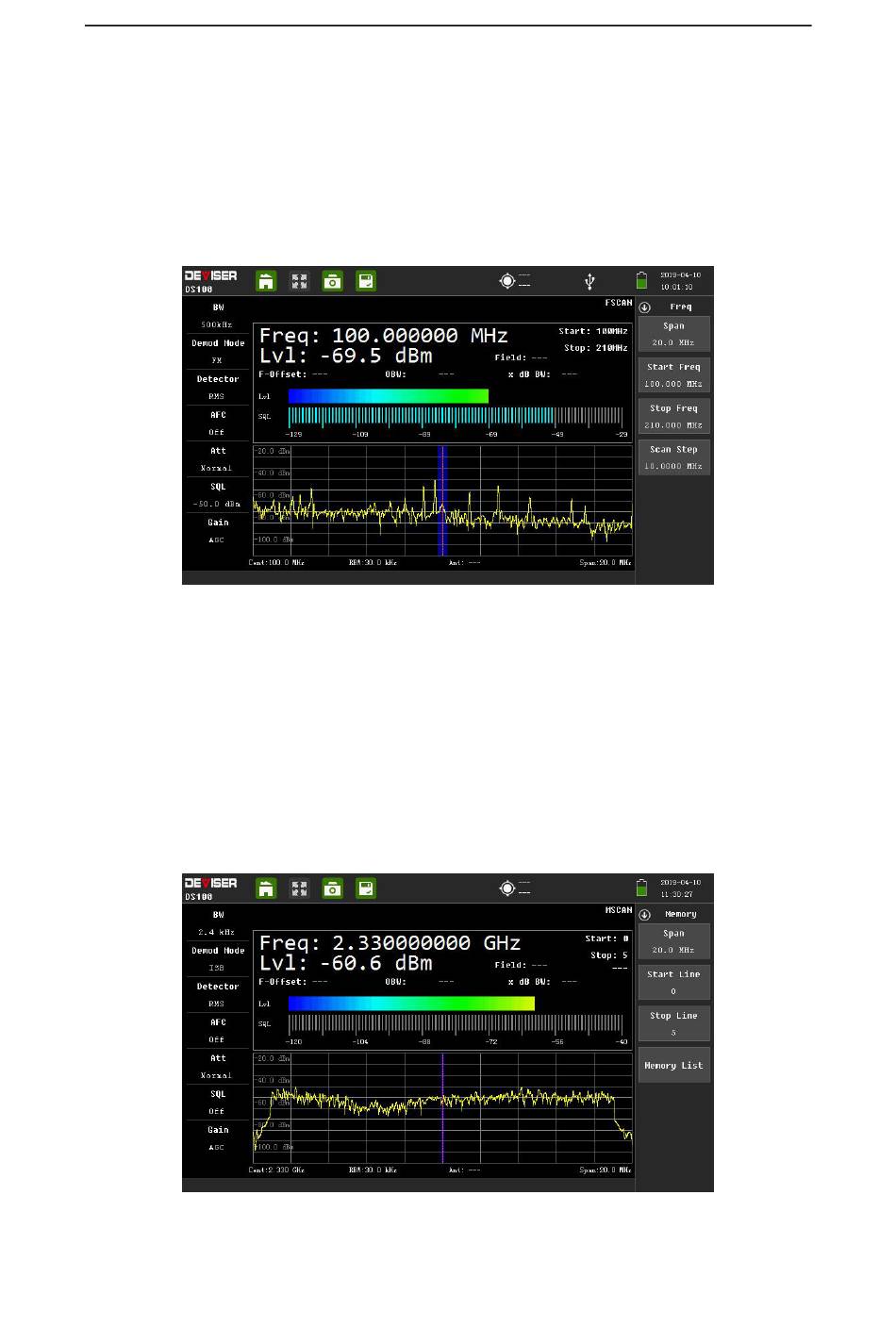

Fig.4-6 FSCAN
Measuring Steps:
According to the frequency step set by the user, the instrument performs spectrum analysis in a
certain range. Press the panel key <SCAN>, click the virtual key <Param> to enter the start
frequency, stop frequency and step, and click the virtual key <RUN+> or <RUN-> to start scan,
click <STOP> to end scanning.

4.3 MSCAN

In this mode, demodulation mode, demodulation bandwidth and other parameters of different
frequency can be set independently. The storage list in the channel table has a capacity of 1024
items, which is convenient for users to continuously scan multiple frequency points.
Fig.4-7 MSCAN
