Connector Interface for Arduino

The Connector placement of the Evaluation PCB is compliant with the Arduino form-factor. The pinouts are
listed below.

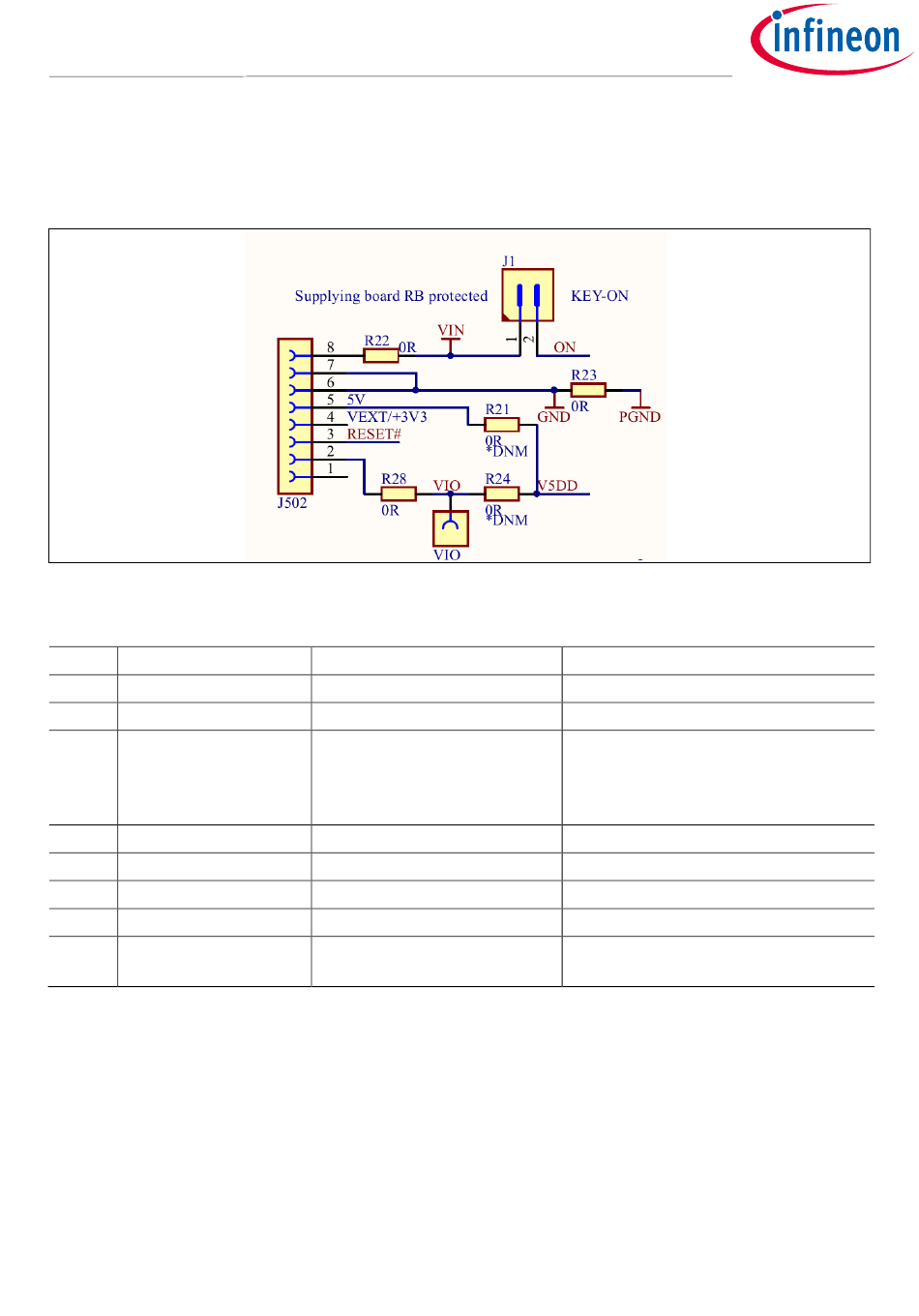

Figure 5 Power Connector J502
Table 3 Power supply Connector J502
Pin no. Arudino Signal Name
1 -
2 IOREF
3 RESET
4 3.3V
5 5V
6 GND
7 GND
8 VIN
User Manual
Evaluation PCB Signal Name
-
VIO
RESET#
+3.3V
+5V
GND
GND
VBAT
5
Description
-
Communication supply level (SPI)
External reset signal (low active)
connected to NRIO. Reset of TLE8082ES
and TLE8080EM (if R27 jumper
assembled).
3V3 volt supply – not used
5V volt supply – not used
Ground
Ground
Voltage Level (usually 12V) applied to
VS and KEY (if J1 is closed)
V1.0
2021-04-28
