Small Engine Management Evaluation Board
User Manual for TLE8082ES+TLE8080EM Evaluation Board
1.1.1

Output connectors

The Evaluation board provides two power connectors to drive inductive and/or resistive loads with TLE8080EM
and TLE8082ES

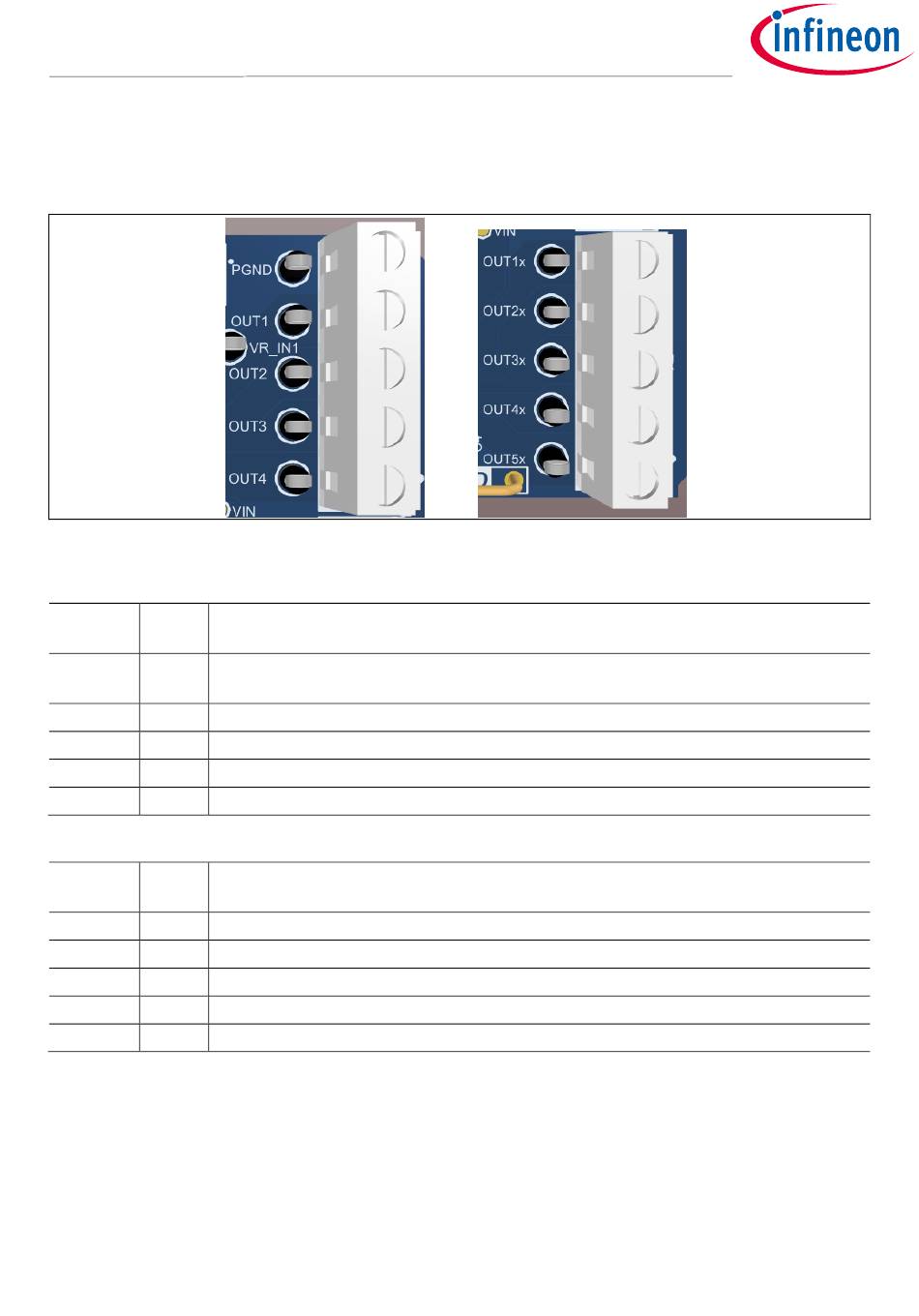

Figure 4 TLE8082ES - Output Connector X1 (left), TLE8080EM Output connector X2 (right)
Table 1 TLE8082ES - Output connector X1
Output of Pin no. Description
TLE8082ES
PGND X1-5 Power ground signal – optional use if GND ≠ PGND (open R23) or use as additional GND
connection
OUT1 X1-4 Status of output stage 1 of TLE8082ES
OUT2 X1-3 Status of output stage 2 of TLE8082ES
OUT3 X1-2 Status of output stage 3 of TLE8082ES
OUT4 X1-1 Status of output stage 4 of TLE8082ES
Table 2 TLE8080EM - Output connector X2
Output of Pin no. Description
TLE8082ES
OUT1x X2-5 Status of output stage 1 of TLE8082EM
OUT2x X2-4 Status of output stage 2 of TLE8082EM
OUT3x X2-3 Status of output stage 3 of TLE8082EM
OUT4x X2-2 Status of output stage 4 of TLE8082EM
OUT5x X2-1 Status of output stage 5 of TLE8082EM
