NXP Semiconductors LPC-Link2 Wiring Diagram

Page 2
Power supplies
Page 3
USB 2.0 interface, LPC4370 USB, reset, crystal, jtag/swd
Page 4
Boot mode, LPC4370 IOs, external spi flash
Page 5
External JTAG/Cortex debug interface
Page 6
Analog channel, digital channels, jtag/swd/trace interface
Design Overview
Power supplies
USB
powering
3.3V
USB mini-B
LPC4370 power supplies
LPC4370 JTAG/SWD connector
LPC4370 crystal, reset
LED
Schematic page 2-3
UL = UnLoaded = normally not mounted component.
Default jumper settings are indicated in the schematic.
However, always check jumper positions on actual boards
since there is no guarantee that all jumpers are in default place.

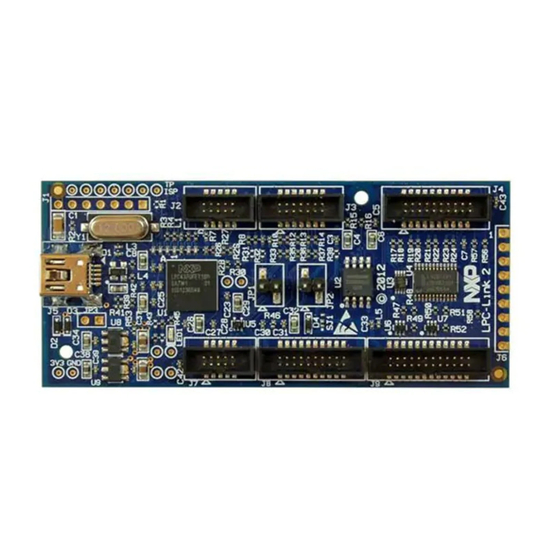

LPC-Link 2
External powering (+5V)
3.3V External powering (+3.3V)
External jtag/swd interface
External jtag/swd/trace connector
Analog channel
LPC4370 IOs
Digital channels
Serial Expansion Interface
External SPI flash
Schematic page 4 Schematic page 5-6
NXP Semiconductors
