QuickStart Guide
LPC1768 Industrial Reference Design Platform
System Development Kit Version 1.3
1.0 System Overview

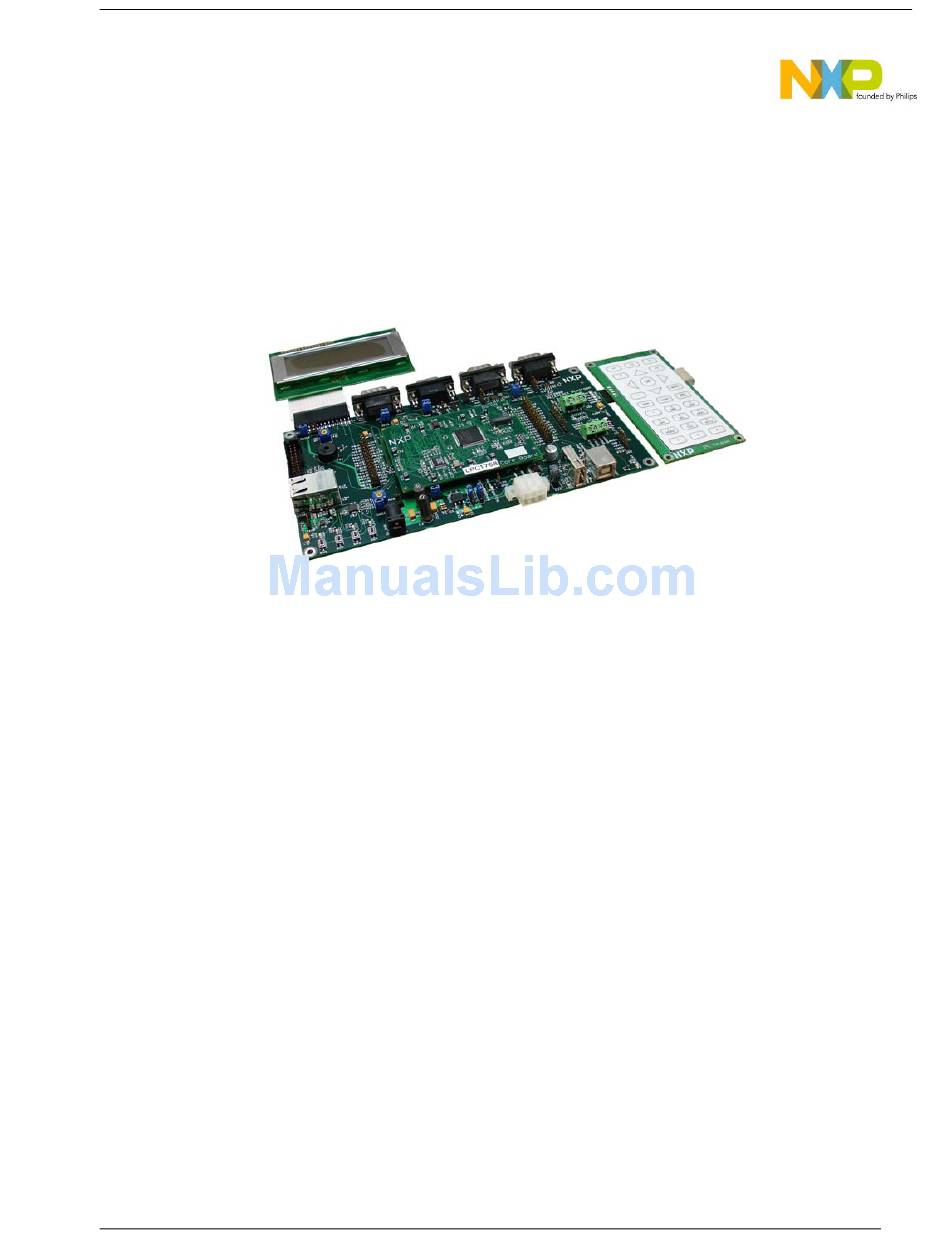

The LPC1768 Industrial Reference Design (IRD) is a platform targeted at RTOS based embedded
systems. Designed around a flexible "Core" and "Base" Printed Circuit Board (PCB) concept, it
features many of the system functions and wired communications protocols found in today's
embedded applications. The flexible design allows for changing of core and base boards, displays
and keypads as needed by the targeted application. The platform is powered from an external
5VDC power supply, and provides circuitry to measure current consumption of 3.3VDC while
operating the platform in different modes. Software development and debug are accomplished with
the use of a JTAG connection and Keil IDE development environment. Hardware circuitry is
incorporated to facilitate In-System-Programming (ISP), allowing software updates to be easily
loaded and demonstrated on the platform.
The version 1.3 kit features:
- NXP-designed (green PCB) LPC1768 core board
- NXP-designed base (green PCB) board
- A phone-style keypad board
- A 20X4 character LCD module
The platform provides demonstration software to perform functional test of the microcontroller
features, such as Ethernet, USB Device, UART, I²C, ADC, and GPIO ports. In the future, the
platform will support Micrium μC/OS-II Real Time Operating System (RTOS), and provides software
support for 10/100Base Ethernet, USB Host/Device, CAN, RS-232, and I
protocols. Additionally, the platform provides flexible interfaces for:
-
Vacuum Fluorescent Displays (VFD) or Liquid Crystal Displays (LCD)
-
UART expansion
2
-
I
C expansion
-
Application specific hardware through connection headers on the baseboard
LPC2468 IRD Kit 1.2 Quick Start Guide, rev. 1.0
May 2009
2
C wired communication
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPC1768 and is the answer not in the manual?

Questions and answers

Summary of Contents for NXP Semiconductors LPC1768

  • Page 1 May 2009 1.0 System Overview The LPC1768 Industrial Reference Design (IRD) is a platform targeted at RTOS based embedded systems. Designed around a flexible “Core” and “Base” Printed Circuit Board (PCB) concept, it features many of the system functions and wired communications protocols found in today’s embedded applications.
  • Page 2: Assembling The Hardware

    The following instructions apply to the IRD platform only. The IRD demonstration code programmed into the LPC1768 MCU enables GPIO LED “Blinky” and provides a baseline for customers to start their LCP17xx development. 1. Connect the following boards as shown in Figure 1 (next page):...
  • Page 3 Figure 1 Keypad Connection VFD/LCD Connection Temp Sensor Connection 2. Ensure that the following jumpers are in place. Jumper Default Connection Description Jumper connected Used for I measurement on IRD platform when disconnected JP18 Pins 1&2 connected Enables 3.3VDC from onboard regulator JP19 Pins 1&2 connected...
  • Page 4 J VDISP VREF JP18 JP19 Before moving to Step 3, make sure that ALL the instructions described in Step 1 , Hardware connections and Step 2 Jumper configuration have been properly followed. Failure to follow these instructions may cause the platform not to function properly 3.
  • Page 5 4. Wait a few seconds for the system to power-up and examine the four LEDs on the bottom left side of the base board above the 4 push button switches. They should be blinking ON from left to right and then OFF from left to right.
  • Page 6: Troubleshooting

    4.2. Software – Keil The IRD LPC1768 kit software was developed using KEIL uVision3 version 3.5. Keil is providing a 60 day, 256kB trial version for customers using the IRD kit. To install the Keil IDE go to: https://www.keil.com/demo/eval/arm.htm...
  • Page 7 6.0 Connection Headers Reference Table The following list is a description of all the jumpers and connection headers on the IRD Baseboard (version 1.3). Additional information can be found in the IRD schematic and User Manual documents. JP4 & JP5 – CAN Analyzer Connectors Label Function CANH...
  • Page 8 NXP Semiconductors ©2008 NXP Semiconductors. All rights reserved. All trademarks are the property of their respective owners. The information supplied by NXP Semiconductors. is believed to be accurate and reliable, but in no event shall San Jose, CA NXP Semiconductors be liable for any damages whatsoever arising out of the use or inability to use the information or any errors that may appear in this publication.
