INSTALLATION

Before making power terminations during earth grounding, de-energize the
power source. Do not restore power until completing all other mounting and
wiring.
There is risk of electric shock and physical injury or death.
Installation

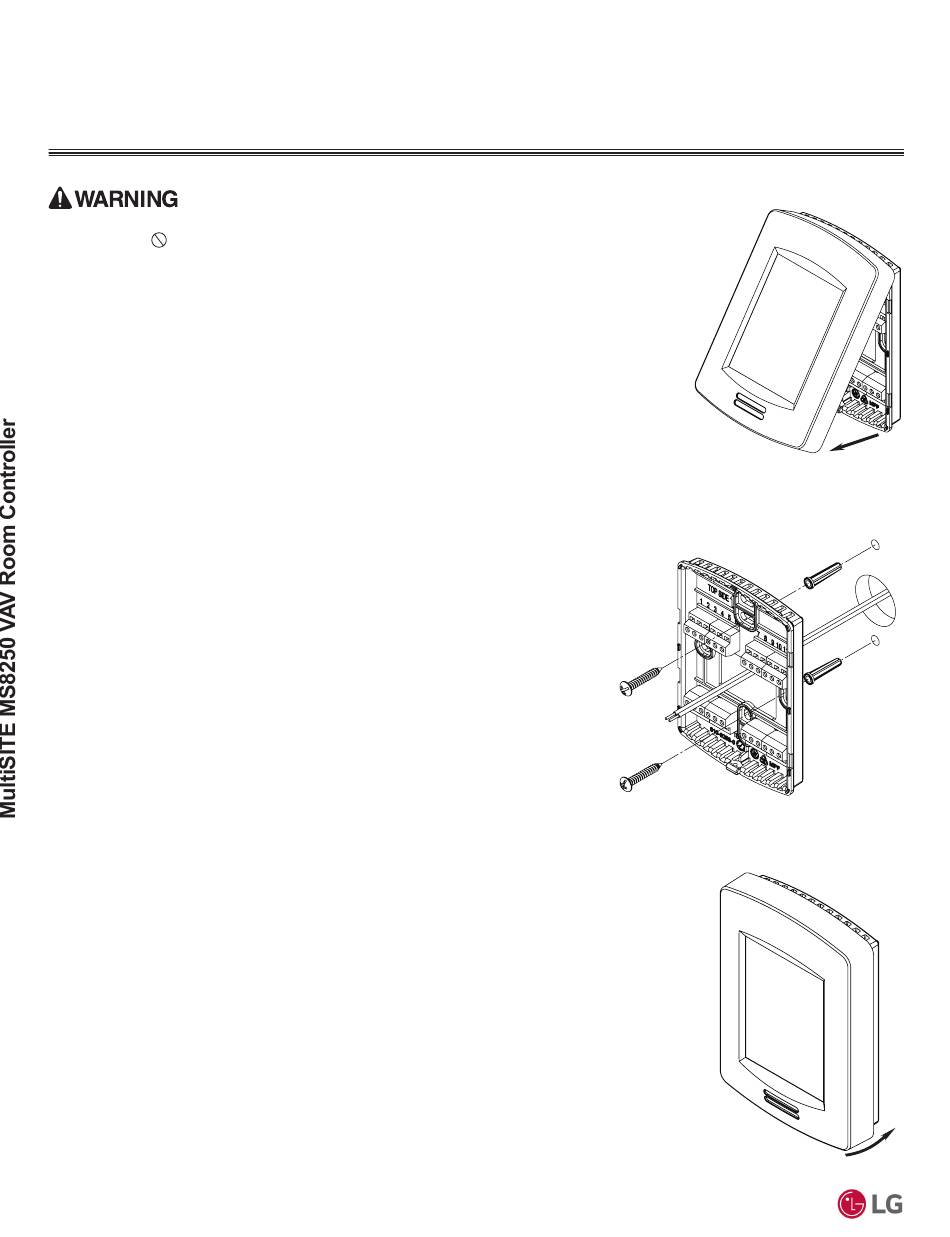

1. Remove security screw (if any) on bottom of Controller cover.
2. Open unit by pulling on bottom side of Controller (Figure 1).
3. Read FCC ID and IC label installed in cover before installing any wireless product.
4. Ensure correct side of base faces up.
5. Pull cables six (6) inches (15cm) out from wall.
6. Align base and mark location of two mounting holes on wall (Figure 2).
7. Install anchors in wall.
8. Insert cable in central hole of base.
9. Insert screws in mounting holes on each side of base.
10. Strip each wire 1/4 inches (0.6cm) from end.
11. Insert each wire and screw according to wiring chart (see following pages).
12. Gently push excess wiring back into hole.
13. Gently align cover to top of base and snap in place from bottom (Figure 3).
14. Install security screw.
12
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG Life's Good" is a registered trademark of LG Corp.
Figure 2: Open the Cover.
Figure 3: Install the Base.
Figure 4: Reinstall Cover
