System Installation

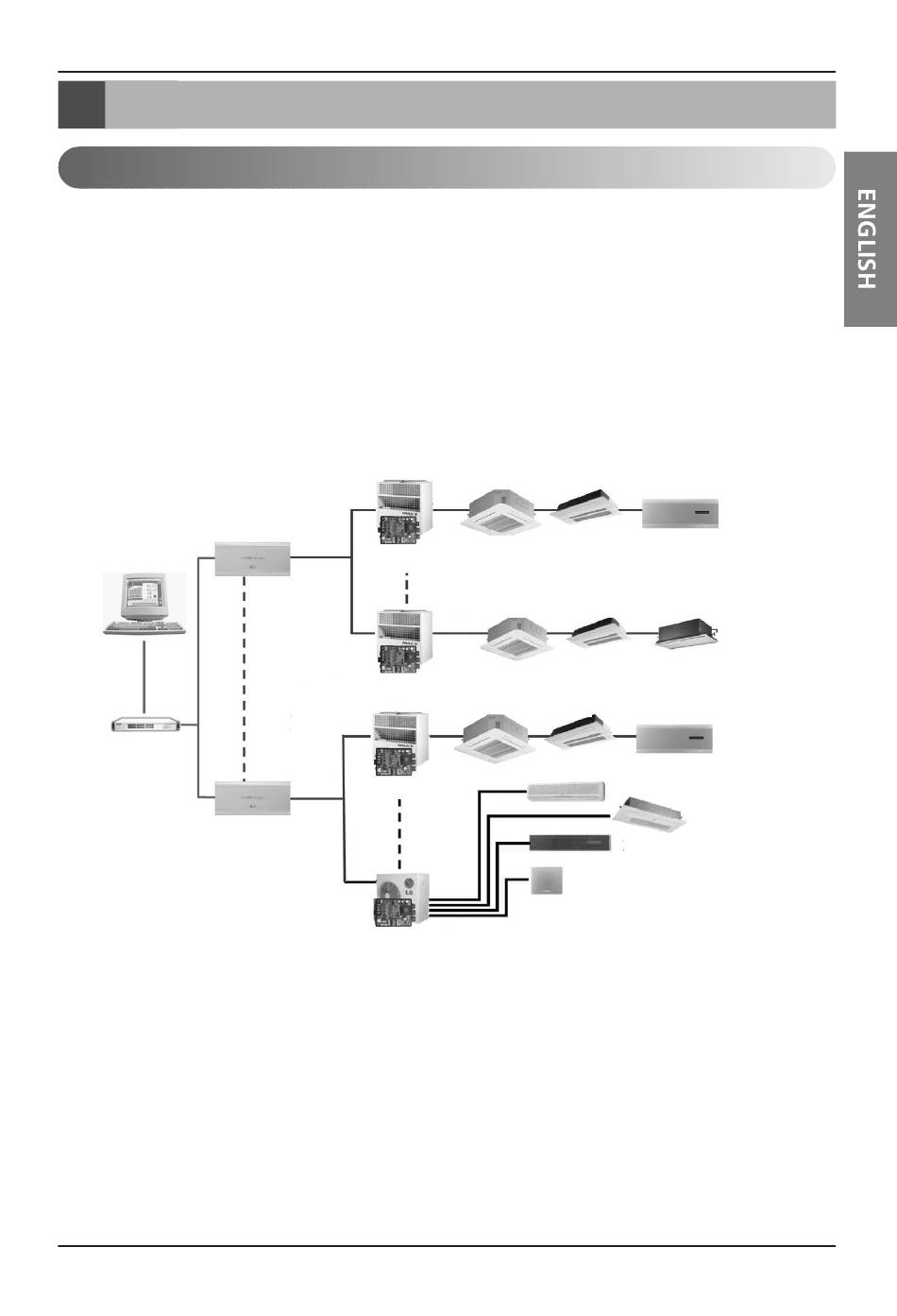

System configuration
System Configuration
- 16 CNU / 1 PC Central controller
- 8 PI485 / 1 CNU
- 1 Outdoor Unit / 1 PI485 ; 1 Ventilator / 1 PI485C
• NOTE : If your requirement does not match above mentioned spec then please contact air-
conditioner department for support.
PC
Central controller
LAN
HUB
CNU(Interface)
Multi V(LRUN)
00
PMNFP14A0 (PI 485)
Multi Vplus
70
PMNFP14A0 (PI 485)
Multi Vplus
00
1
PMNFP14A0 (PI 485)
PMNFP14A0 (PI 485)
System Installation
01
OF
71
7F
0F
01
Installation Manual 3
