Installation Method

Installation Method

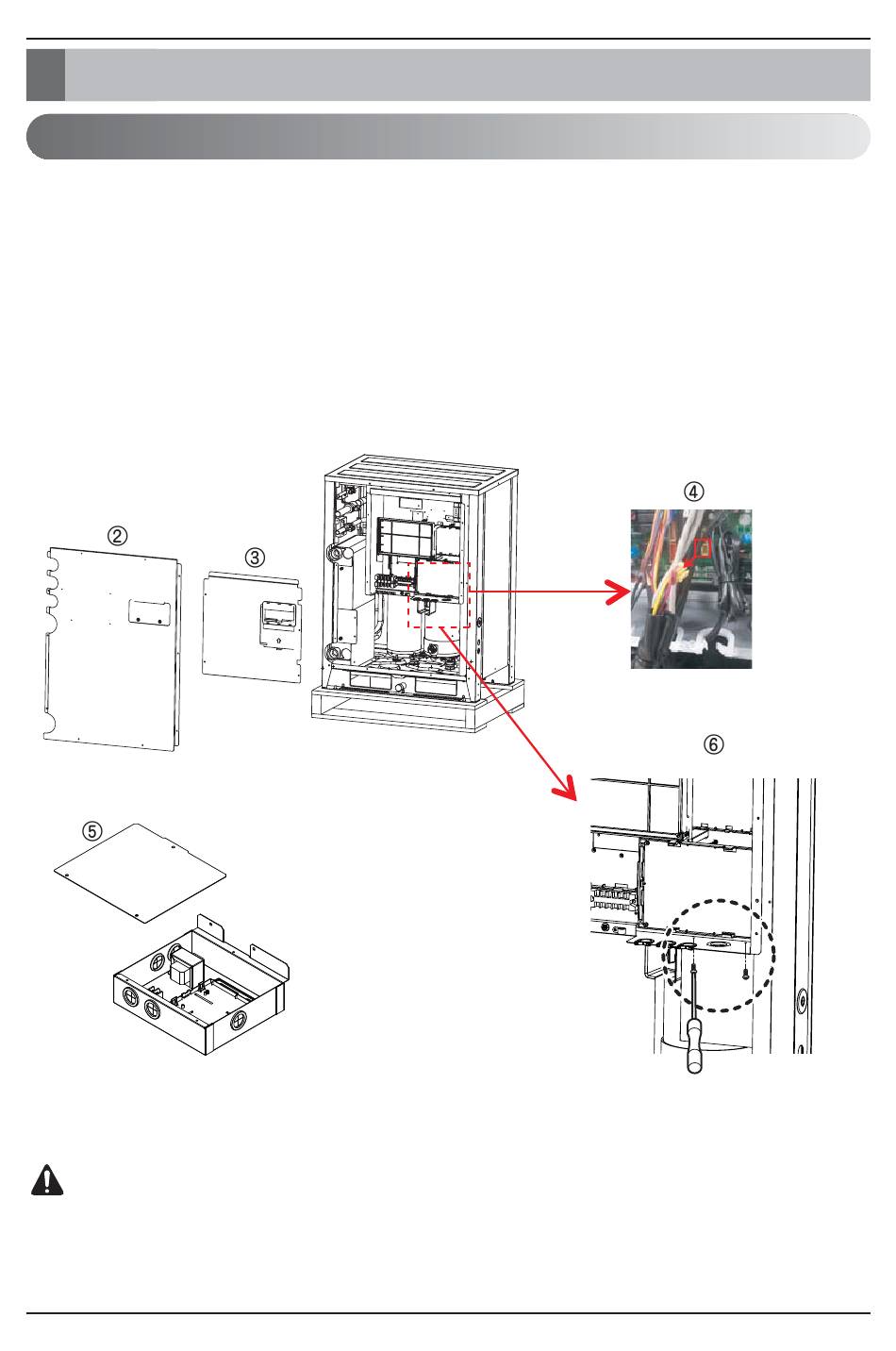

Variable Water Flow Control kit Installation Method

① Be sure to turn off outside unit power before installaion.
② Separate front panel from outside unit
③ Separate front cover of control box.
④ Separate Oil_Level Harness(3Pin Yellow) in External PCB(CN28).
⑤ Sepatate VWFC* Cover in VWFC Assy.
⑥ Install the VWFC Assy to the C/Box by using screws.
* VWFC : Variable Water Flow Control kit
CAUTION
Be sure to turn off outside unit power before installation.
8 Variable Water Flow Controller Kit
* Separate of Oil_Level harness
* Tighten the screw from bottom to
the top direction.
