TERMINAL IDENTIFICATION AND FUNCTION
Pressure Dependent (No Fan), Floating Control

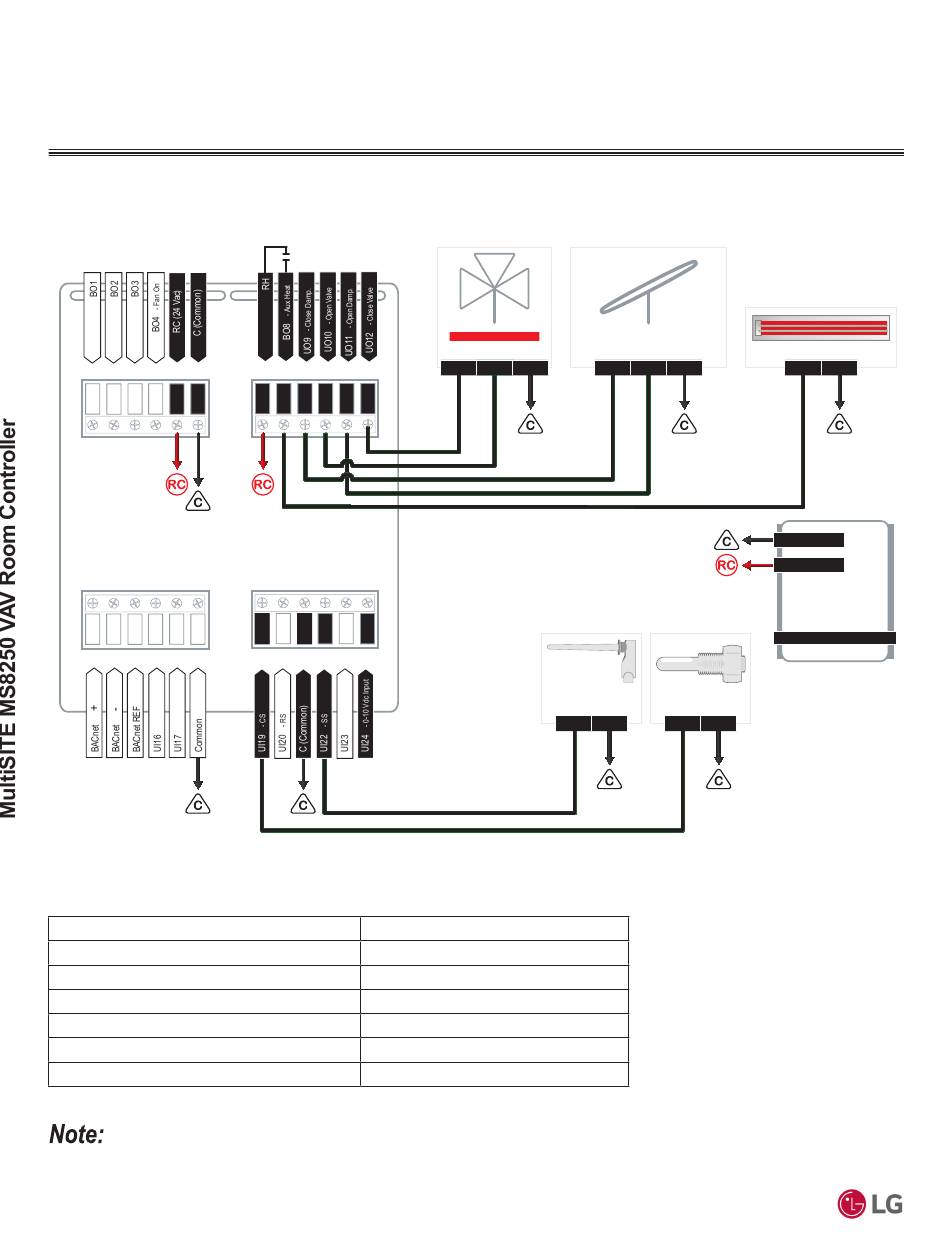

Figure 7: Pressure Dependent (No Fan), Floating Control Wiring Diagram.
1 2 3 4 5 6
13 14 15 16 17 18
Table 9: Pressure Dependent (No Fan), Floating Control Configuration Specifications.
Configuration Parameter Name
VAV Box Type
Actuator Type
Fan Type
Reheat Configuration
Duct Heater
Baseboard Configuration
See the MS8250 Application Guide for more information on the "Sequence of Operations and Wiring".
18
7 8 9 10 11 12
19 20 21 22 23 24
Configuration Settings
Valve NC (Normally Closed)
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG Life's Good" is a registered trademark of LG Corp.
FLOATING ACTUATOR
HEATING VALVE
Close
Open
Com.
Close
OPTIONAL
SUPPLY AIR
TEMP. SENSOR
Sens.
Com.
PD
Floating
None
Duct + Baseboard
Floating
DAMPER
BASEBOARD 24 Vac
Open
Com.
24 Vac Com.
COMMON
24 Vac
FAN HI
FAN MED
Low-voltage
TERMINAL BLOCK
FAN LO
CHANGEOVER
SENSOR
Sens.
Com.
