Control Section B - EWM LP-XQ Operating Instructions Manual

Item Symbol
6
7
8
9
10
11 End
4.1.2

Control section B

Item Symbol
1
2
3
099-5TLPXQ-EW501
29.01.2021
Machine control – Operating elements
Description 0
Correction of arc length with click wheel
• ----------- Setting the correction of arc length > see 5.2.5.2 chapter
• ----------- Setting the arc dynamics > see 5.2.5.3 chapter
• ----------- Setting various parameter values depending on the preselection.
Settings can be made when the backlight is activated.
push-button - JOB Favourites > see 4.3.5 chapter
•-----------Pressing the push-button briefly: Loading Favourites
•-----------Press and hold the push-button (>2 s): Saving as a Favourite
•-----------Press and hold the push-button (>12 s): Deleting a Favourite
Push-button gas test / rinse hose package > see 5.1.1 chapter
Wire return > see 5.2.2 chapter
Potential and gas-free return of the wire electrode.
Wire inching push-button
Potential and gas-free inching of the wire electrode > see 5.2.1 chapter.
Signal light wire reserve sensor (ex works option) > see 5.5.2 chapter
Lights up when the welding wire is less than approx. 10% residual quantity.
Description 0
Display left / Lock function push-button
Switching the device display between various welding parameters. Signal lamps show
the selected parameter.
--------- Press for 3 s to put the machine into lock function > see 4.3.4 chapter.
Wire feed speed unit signal light
m/min ---- Parameter value is displayed in meters per minute.
ipm ------- Parameter value is displayed in inches per minute.
Switching between metric or imperial system via special parameters
"P29" > see 5.10 chapter.
Material thickness signal light
Indication of the selected material thickness.

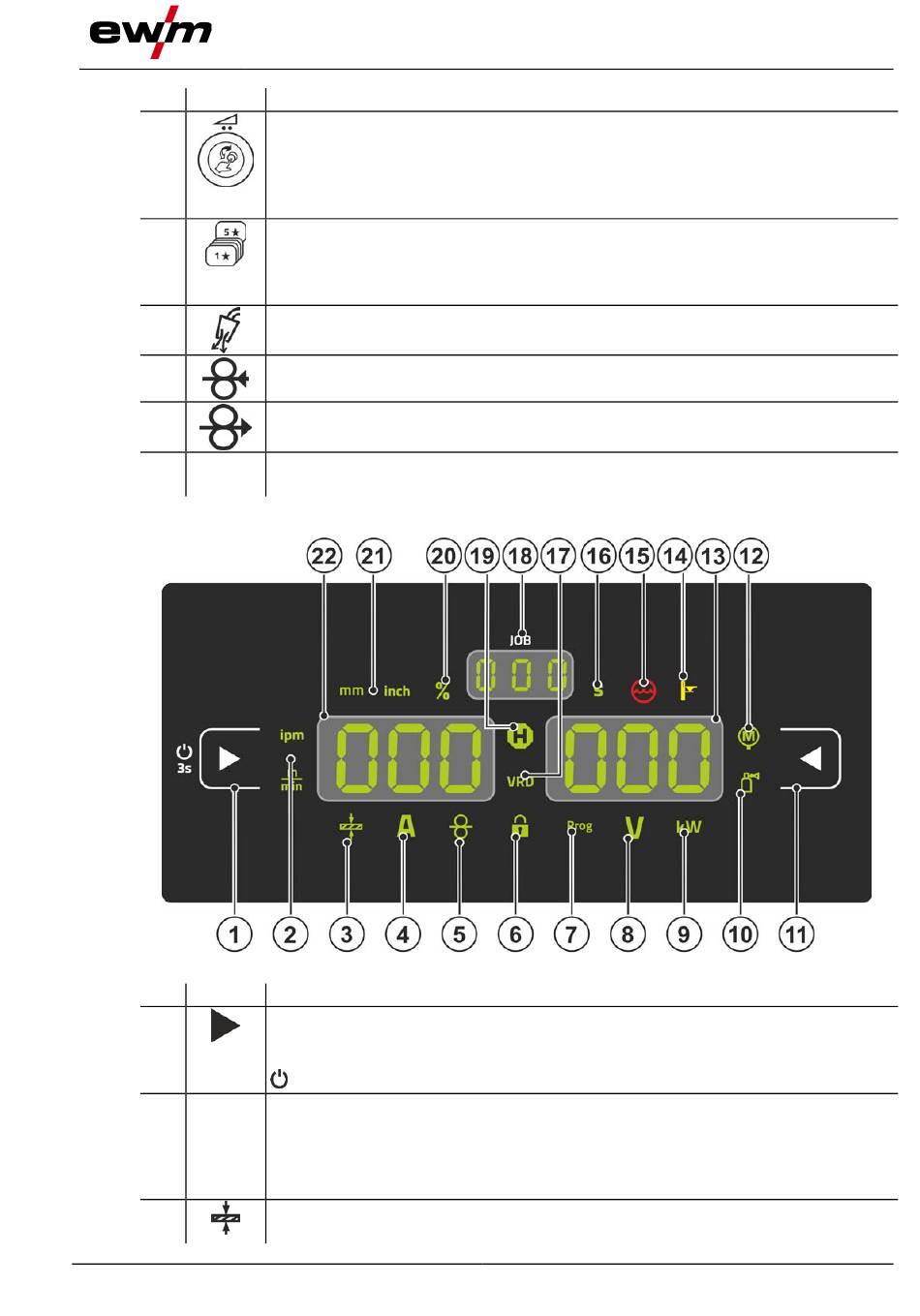

Figure 4-3
Overview of control sections
