4.2

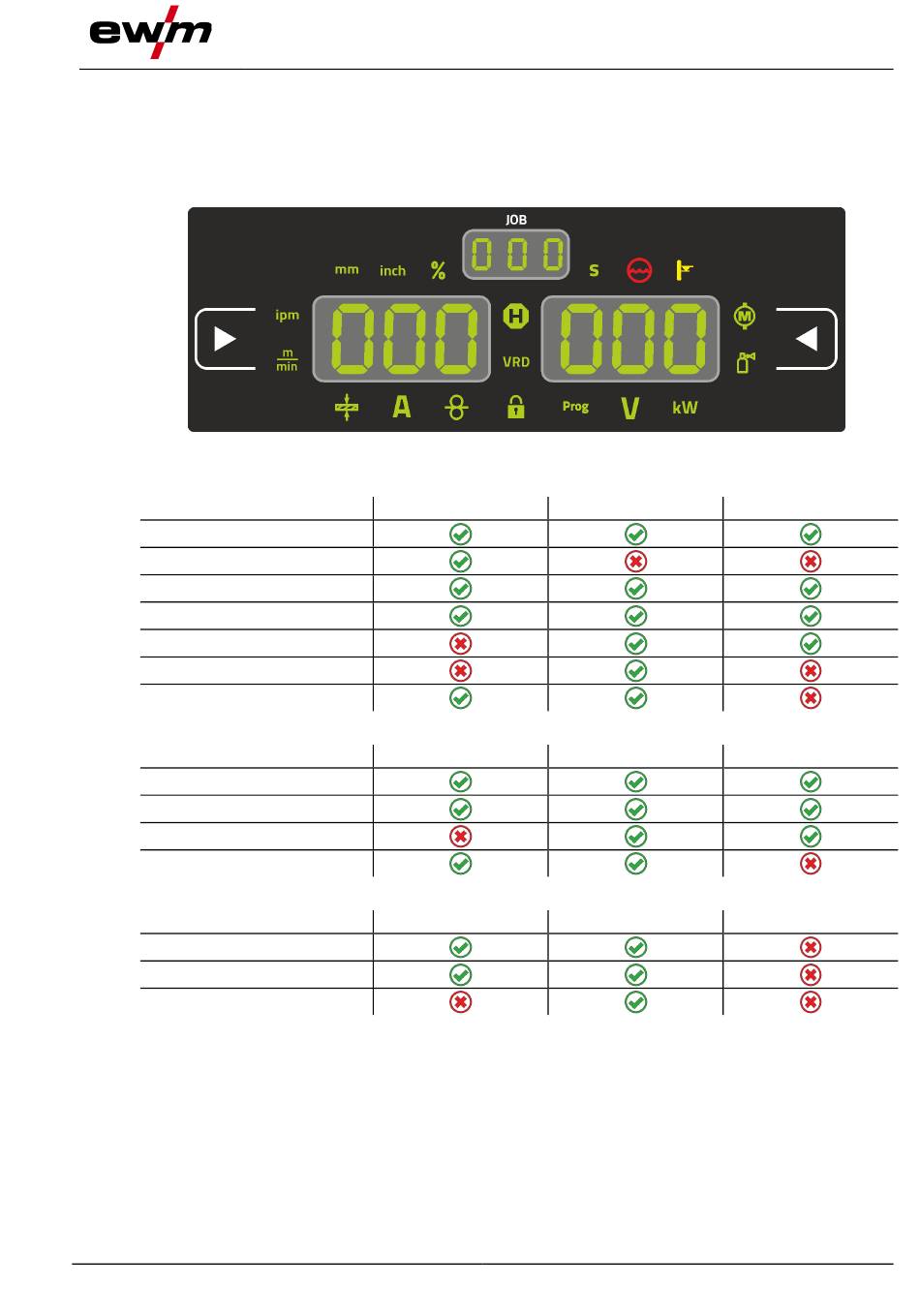

Welding data display

On the left and right of the parameter displays there are push-buttons for the selection of parameters.
They are used to select the welding parameters to be displayed and their values.
Each time one the button is clicked, the display proceeds to the next parameter (signal lights indicate the
selection). After reaching the last parameter, the system is restarted with the first one.
MIG/MAG
Parameter
Welding current
Material thickness
Wire feed speed
Welding voltage
Welding power
Motor current
Shielding gas
TIG
Parameter
Welding current
Welding voltage
Welding power
Shielding gas
MMA
Parameter
Welding current
Welding voltage
Welding power
When settings are changed (e.g. wire feed speed) the display immediately switches to nominal value set-
ting.
[1] Nominal values (before welding)
Actual values (during welding)
[2]
Hold values (after welding, display of mean values across entire welding process)
[3]
099-5TLPXQ-EW501
29.01.2021
Machine control – Operating elements
Figure 4-4
Nominal values
[1]
Nominal values [1]
Nominal values [1]
Welding data display
Actual values
[2]
Actual values [2]
Actual values [2]
Hold values
[3]
Hold values [3]
Hold values [3]
