5.2.8

Operating modes (functional sequences)

5.2.8.1

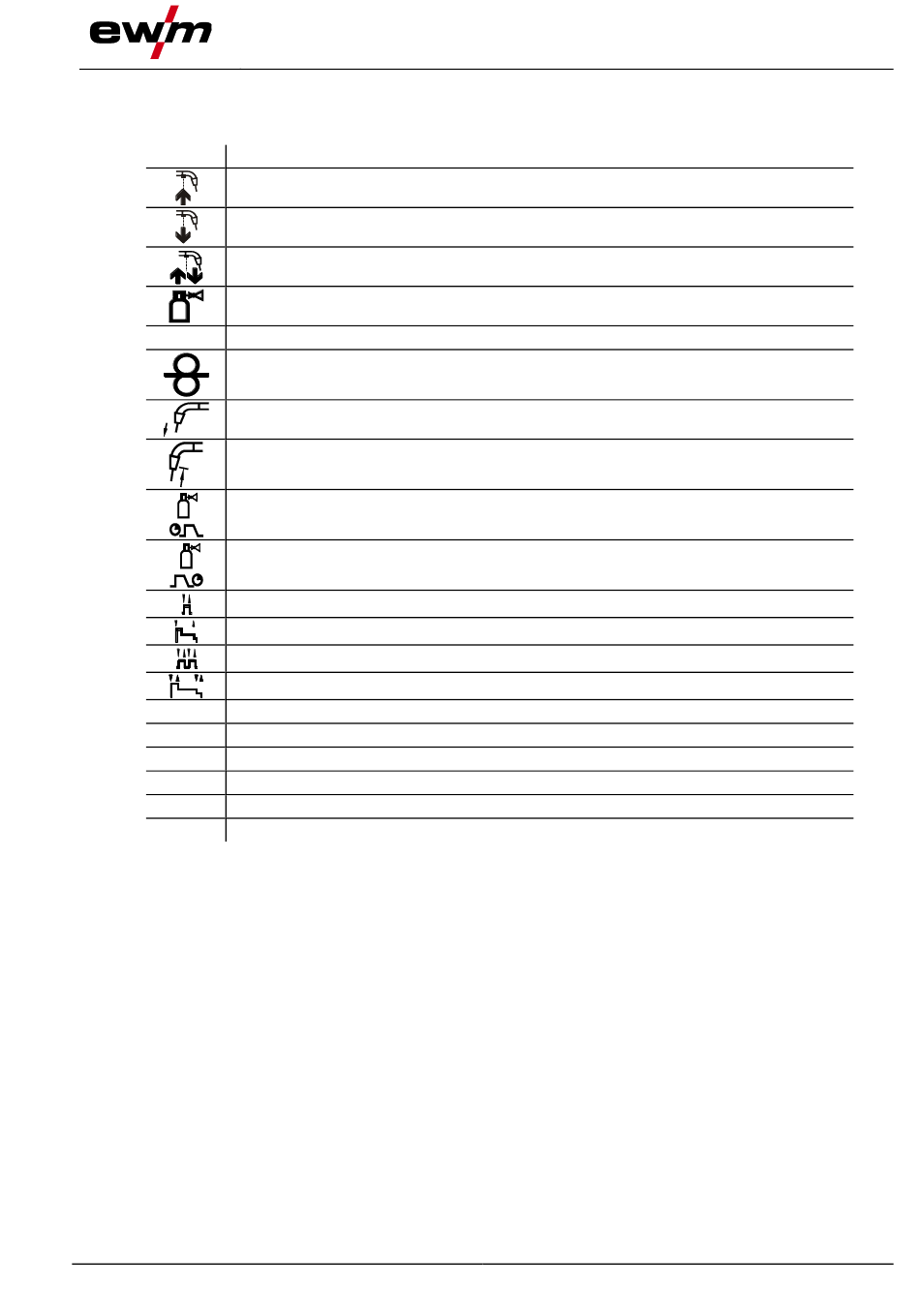

Explanation of signs and functions

Symbol Meaning
Press torch trigger
Release torch trigger
Tap torch trigger (press briefly and release)
Shielding gas flowing
I Welding output
Wire electrode is being conveyed
Wire creep
Wire burn-back
Gas pre-flows
Gas post-flows
Non-latched
Special, non-latched
Latched
Special, latched
t Time
P Ignition program
START
P Main program
A
P Reduced main program
B
P End program
END
t2 Spot time
5.2.8.2

Automatic cut-out

Once the fault periods have elapsed, the automatic cut-out stops the welding process when it has been
triggered by one of two states:
• During ignition
5 s after the start of the welding process, no welding current flows (ignition error).
• During welding
The arc is interrupted for more than 5 s (arc interruption).
099-5TLPXQ-EW501
29.01.2021
Functional characteristics
MIG/MAG welding
