INSTALLATION MANUAL
DOCUMENTATION

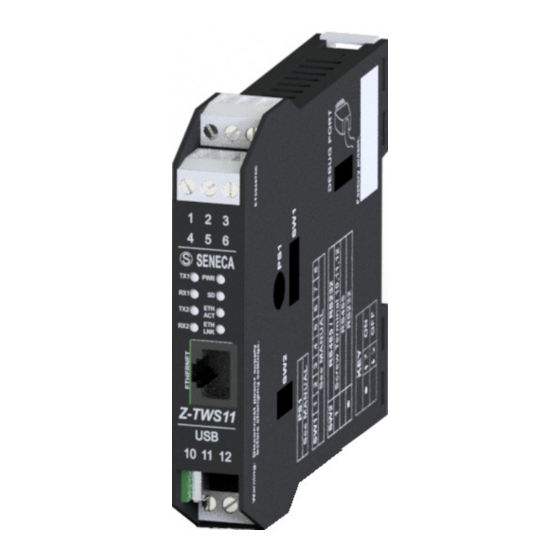

Multifunction and multiprotocol controller unit
Phone: +39.049.8705355- 8705355
Technical support:
Product Informations:
MI00367-3-E
Z-TWS11
Seneca srl
Headquarters: Via Austria 26
35127 - Z.I. - Padova - IT
Fax +39 049.8706287
www.seneca.it
support@seneca.it
sales@seneca.it
ENGLISH 1/7
ENGLISH
Z-PC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seneca Z-TWS11
Summary of Contents for Seneca Z-TWS11
- Page 1 Product Informations: sales@seneca.it This document is property of SENECA srl. Duplication and reproduction are forbidden, if not authorized. The content of the present documentation refers to products and technologies described in it. All technical data contained in the document may be modified without prior notice. Content of this documentation is subject to periodical revision.
- Page 2 • Integrated Straton PLC. • Insulation 1500 VA between power supply and other circuits • Easy power supply and serial communication wiring through Seneca IEC EN 60715 DIN rail bus • Removable terminals with section of 2.5 mm • LEDs signaling: power on, micro SD card access, Ethernet link and activity, RS485 Rx and Tx •...
- Page 3 4 TECHNICAL SPECIFICATIONS Analog inputs 2 channels: mA or VC configurable, resolution: 16 bit, inputs protection: 40V 25mA, Voltage input: 0 – 30 V / accuracy 0,1% of the full scale Current input: 0 – 20 mA / accuracy 0,1% of the full scale Communication ports RS485 COM2 IDC10 rear port (Baud rate max.115k)
- Page 4 DIN rail support. The figure shows the meaning of the terminal blocks and the position of the DIP- switch in the Seneca IEC EN 60715 DIN rail accessory. GNDSHLD: Shield to protect the connection cables against interference (recommended).
- Page 5 Connection of COM4 - RS485 serial port (SW2=OFF) Z-TWS11 has a serial port configurable through the SW2 Switch. If the switch SW2 is set to OFF position, then the RS485 serial port (COM4) is available to terminals 10-11-12.
- Page 6 SW1 KEY the credentials for access to the web server to: User= admin and password= admin. Turn off the Z-TWS11 module and set to ON all eight DIP switches SW1. Turn on the Z- TWS11 module and then wait 10 seconds.
- Page 7 10 FRONTAL PANEL / MODULE LAYOUT For the Z-TWS11 configuration, use the EASY SETUP software available for download, at: www.seneca.it/products/z-tws11 For further information on the product, refer to the USER MANUAL available for download, at: www.seneca.it/products/z-tws11 11 DECOMMISSIONING AND DISPOSAL Electrical and electronic waste disposal (applicable in the European Union and other countries with recycling).
