INSTALLATION MANUAL
Z-8AI

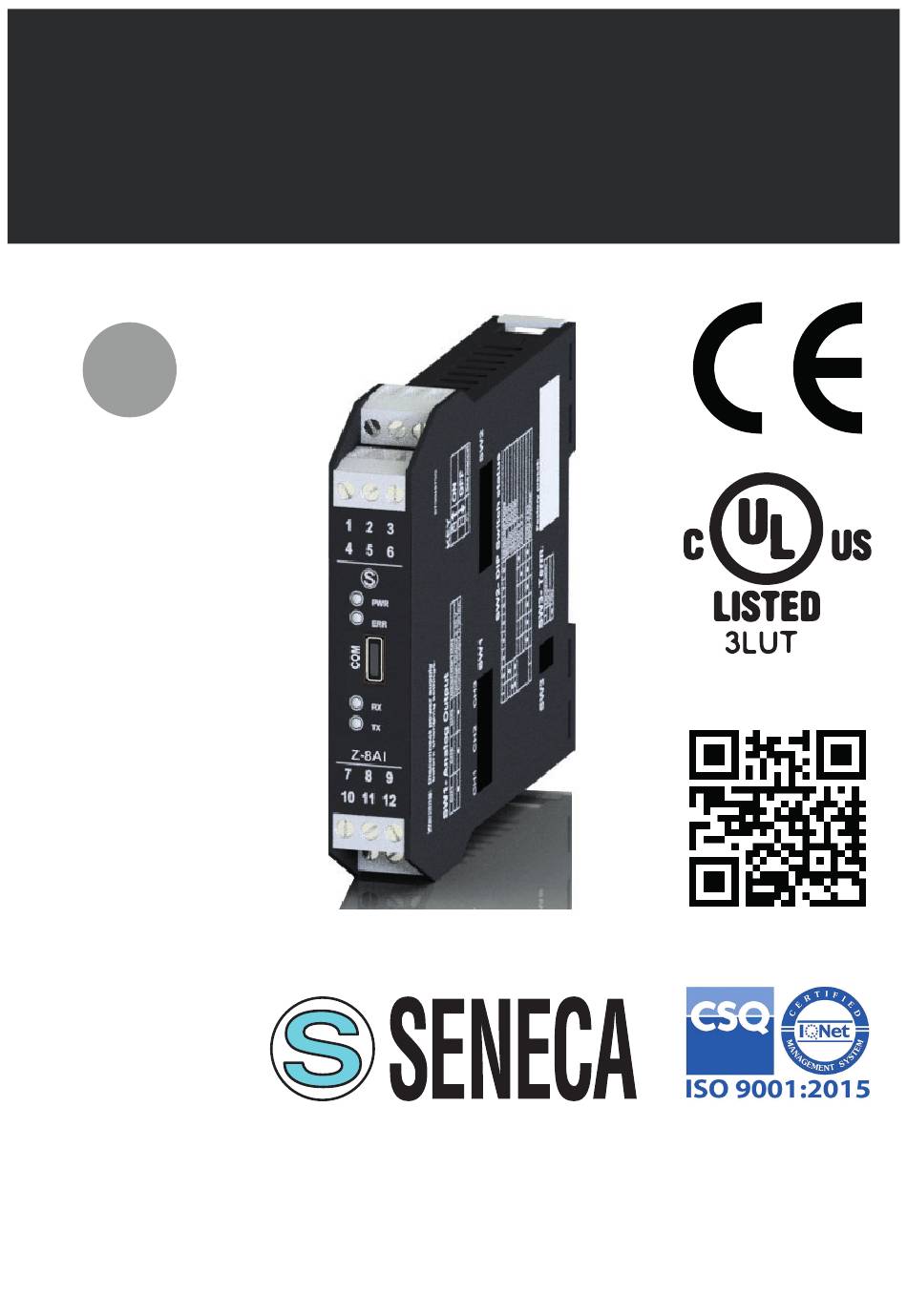

Module with 8 voltage-current ANALOGUE INPUTS
with Modbus protocol on RS485
EN
SENECA s.r.l.
Via Austria, 26 – 35127 – PADOVA – ITALY
Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287
For manuals in other languages and the confi guration software, visit www.seneca.it/products/z-8ai
MI00362-3-EN
1/8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seneca Z-8AI
Summary of Contents for Seneca Z-8AI
- Page 1 Module with 8 voltage-current ANALOGUE INPUTS with Modbus protocol on RS485 SENECA s.r.l. Via Austria, 26 – 35127 – PADOVA – ITALY Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287 For manuals in other languages and the confi guration software, visit www.seneca.it/products/z-8ai MI00362-3-EN...
-
Page 2: Module Layout
WARNING: The full content of this manual must be read before any operation. The module must only be used by qualifi ed electricians. Specifi c documentation is available at www.seneca.it/products/z-8ai The module must be repaired and damaged parts replaced by the Manufacturer. The product is sensitive to electro- static discharges. -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS EN61000-6-4 Electromagnetic emissions, industrial environment. EN61000-6-2 Electromagnetic immunity, industrial environment. EN61010-1 Safety STANDARDS Note UL: use in environments with pollution degree 2 or lower. The power supply unit must be class 2. mA / V WARNING mA / V the maximum working voltage between any Analog mA / V... -
Page 4: Installation Regulations
CONFIGURATION OF FACTORY SETTINGS All DIP-switches in OFF position Communication parameters of ModBUS protocol: 38400 8, N, 1 Address 1 Communication parameters of micro USB front port 2400 8, N, 1 Address 1 Channel input from 1 to 8: VOLTAGE ± 10 Vdc Numerical representation of the input measurement: ±... - Page 5 USB port, the bus will be inactive; it will reactivate automatically a few seconds after the last message exchanged on the USB port. EASY SETUP is the software to use for the confi guration. For more information, visit www.sene- ca.it/products/z-8ai Android APP PC software confi...
-
Page 6: Setting The Dip Switches
SETTING THE DIP-SWITCHES The position of the DIP-switches defi nes the Modbus communication parameters of the module: Address and Baud Rate The following table shows the Baud Rate and Address values according to the DIP-switch setting: DIP-Switch status SW1 POSITION SW1 POSITION POSITION BAUD... -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS Power supply and Modbus interface are available using the Seneca DIN rail bus, via the IDC10 rear connector, or the Z-PC-DINAL-17.5 accessory. Back connector (IDC 10) Power Suppl y AC / + RS485 GND The illustration shows the meanings of the various... -
Page 8: Contact Information
Product information commerciale@seneca.it This document is property of SENECA srl. Copies and reproduction are prohibited unless authorised. The content of this document corresponds to the described products and technologies. Stated data may be modifi ed or supplemented for technical and/or sales purposes.
