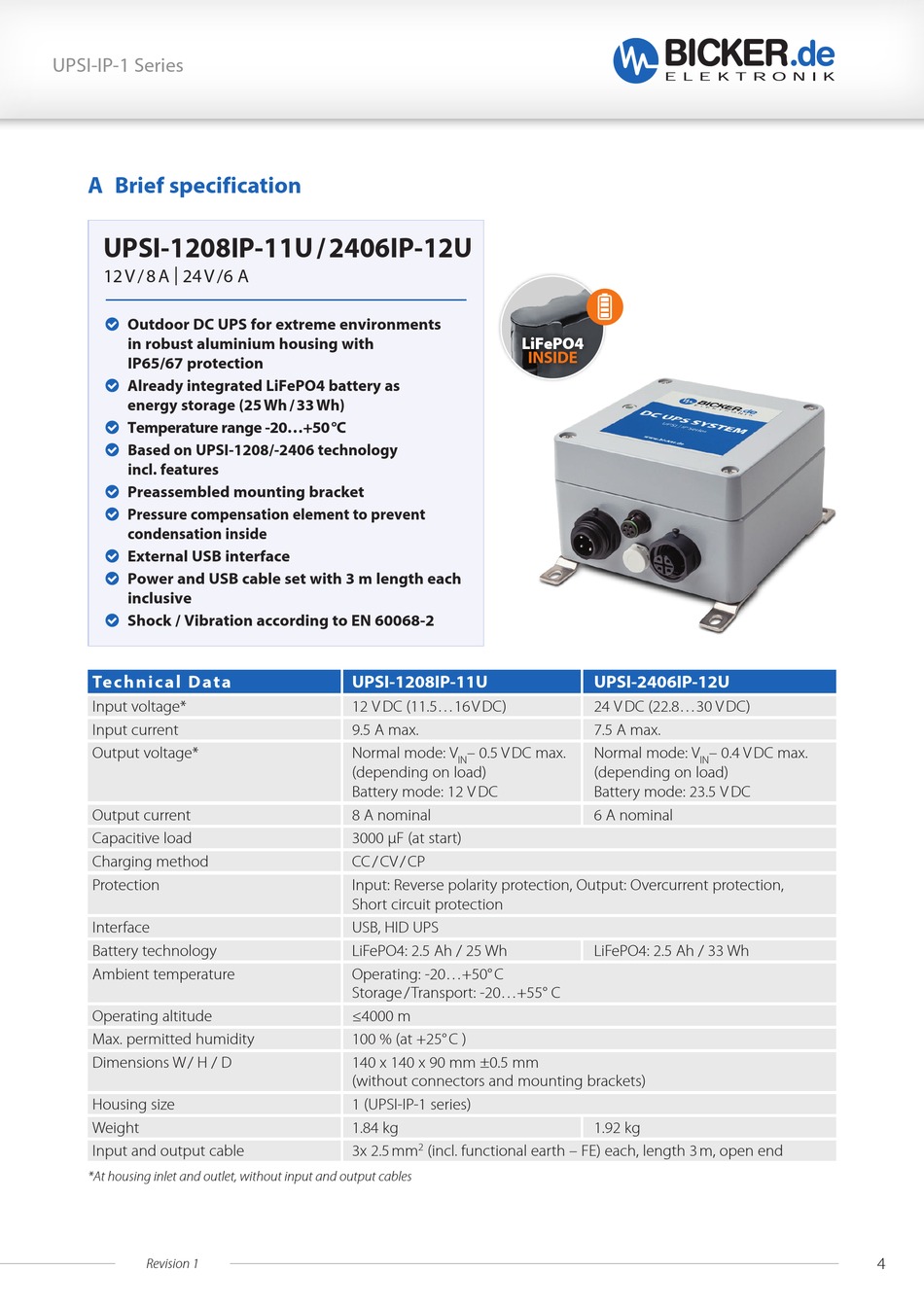

UPSI-IP-1 Series
A Brief specification
UPSI-1208IP-11U / 2406IP-12U
12 V / 8 A | 24 V / 6 A
 Outdoor DC UPS for extreme environments
in robust aluminium housing with
IP65/67 protection
 Already integrated LiFePO4 battery as
energy storage (25 Wh / 33 Wh)
Temperature range -20...+50 °C

Based on UPSI-1208/-2406 technology

incl. features
Preassembled mounting bracket

Pressure compensation element to prevent

condensation inside
External USB interface

Power and USB cable set with 3 m length each

inclusive
Shock / Vibration according to EN 60068-2

Te ch n i c a l Data
Input voltage*
Input current
Output voltage*
Output current
Capacitive load
Charging method
Protection
Interface
Battery technology
Ambient temperature
Operating altitude
Max. permitted humidity
Dimensions W / H / D
Housing size
Weight
Input and output cable
*At housing inlet and outlet, without input and output cables
Revision 1
LiFePO4
UPSI-1208IP-11U
12 V DC (11.5...16 V DC)
9.5 A max.
Normal mode: V – 0.5 V DC max.
IN
(depending on load)
Battery mode: 12 V DC
8 A nominal
3000 μF (at start)
CC / CV / CP
Input: Reverse polarity protection, Output: Overcurrent protection,
Short circuit protection
USB, HID UPS
LiFePO4: 2.5 Ah / 25 Wh
Operating: -20...+50° C
Storage / Transport: -20...+55° C
≤4000 m
100 % (at +25° C )
140 x 140 x 90 mm ±0.5 mm
(without connectors and mounting brackets)
1 (UPSI-IP-1 series)
1.84 kg
3x 2.5 mm 2 (incl. functional earth – FE) each, length 3 m, open end
INSIDE
UPSI-2406IP-12U
24 V DC (22.8...30 V DC)
7.5 A max.
Normal mode: V
IN
(depending on load)
Battery mode: 23.5 V DC
6 A nominal
LiFePO4: 2.5 Ah / 33 Wh
1.92 kg
– 0.4 V DC max.
4
