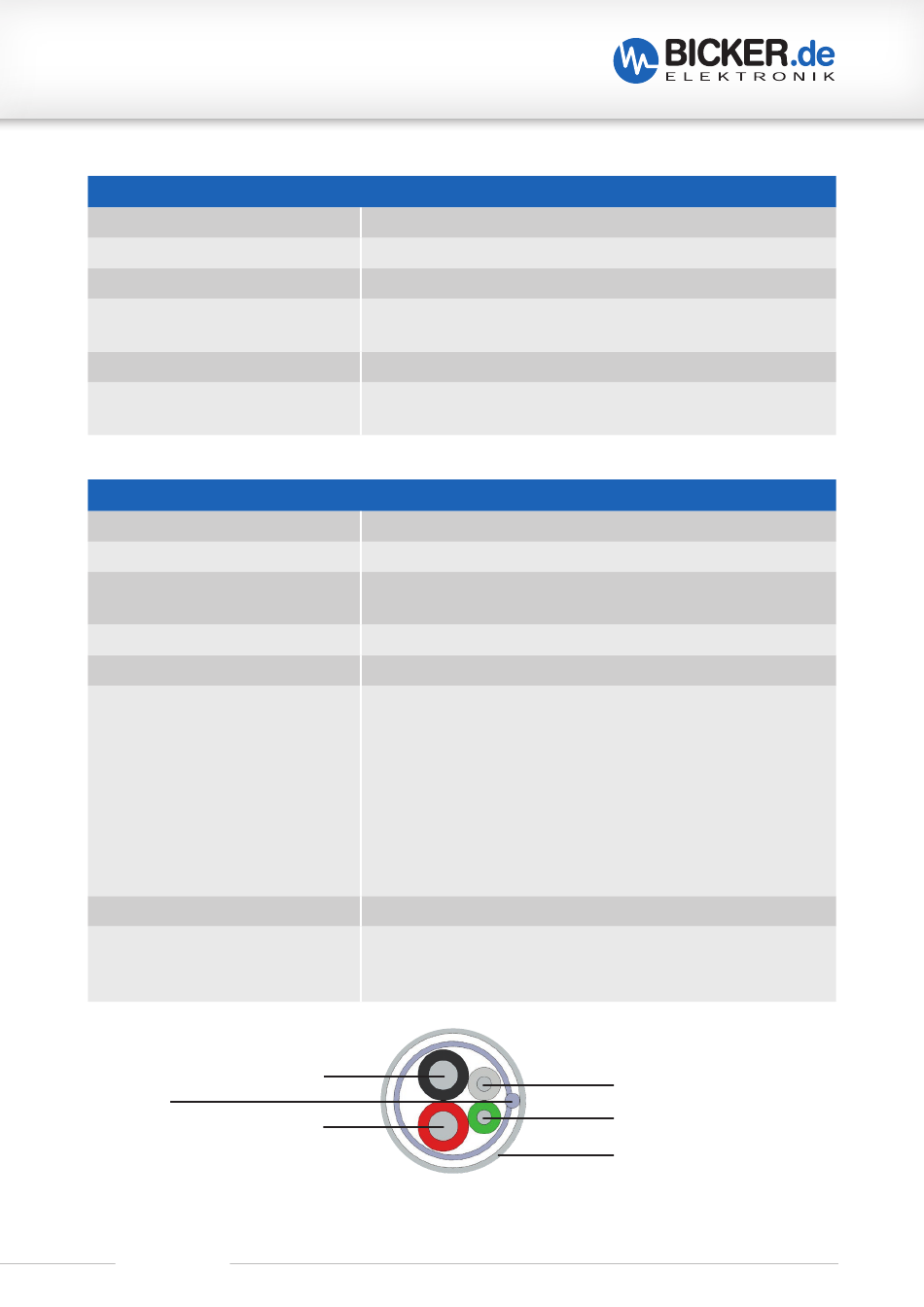

CONNECTION DATA – USB (HOUSING)
Connector type
Design
Anschluss-Verriegelung
Chassis-internal contact type:
Stranded wire to connectors
Mechanical service lifetime
Stranded wire size and cross section
internal
CONNECTION DATA – USB (CABLE)
Connection type
Design
Chassis-internal contact type:
Stranded wire to connectors
Mechanical service lifetime
Type of cable
Cable construction
Outside diameter cable
Stranded wire cross section
Braid / shielding
Revision 1
Flange socket
Socket (female), straight
Snap
Solder
>500 plug cycles
5x AWG24 (ca. 0.25 mm²)
Cable plug
Pin (male), straight
Solder
>500 plug cycles
Shielded USB 2.0 high speed data cable, UL 2725
Fine wire strands of tin-plated copper;
Conductor isolation stranded wire (Power):
SR-PVC, thickness 0.20 mm min;
Concutor isolation stranded wire (Data):
HD-PE, thickness 0.23mm min;
Outer sheath: PVC (UV resistent);
Shielding strip of aluminum, wrapped on all sides of all four Power/
Data stranded wires;
Shield braiding with wire between outer sheath and shielding strip
5.0 mm
2x Stranded wire (Power): AWG22 (app. 0.34 mm²)
2x Stranded wire (Data): AWG28 (app. 0.09 mm²)
1x Stranded wire (shielding braid): AWG26 (app. 0.14 mm²)
V–
V+
Data –
Data +
outer sheath
