UPSI-IP-1 Series
F General Data
F1 Assembly and installation advice
Installation and operation of this device is only allowed to be executed by a qualified
electrician! The application has to be separated from any power during the mounting process.
The connector cables have to be correctly locked with the device connections and may only be
screwed hand-tight (max. 0.5 Nm). Pay attention to correct polarity! Before commissioning, the
connections must be checked for correctness. The USB data cable is plugged to the USB device
connection using snap-in technology and has to lock with it accordingly.
The two functional earth strands (green / yellow) of the input and output lines are internally connected to both
housing parts, the four mounting brackets and the input and output GND (V
as PIN 3 and 5 of the USB connection.

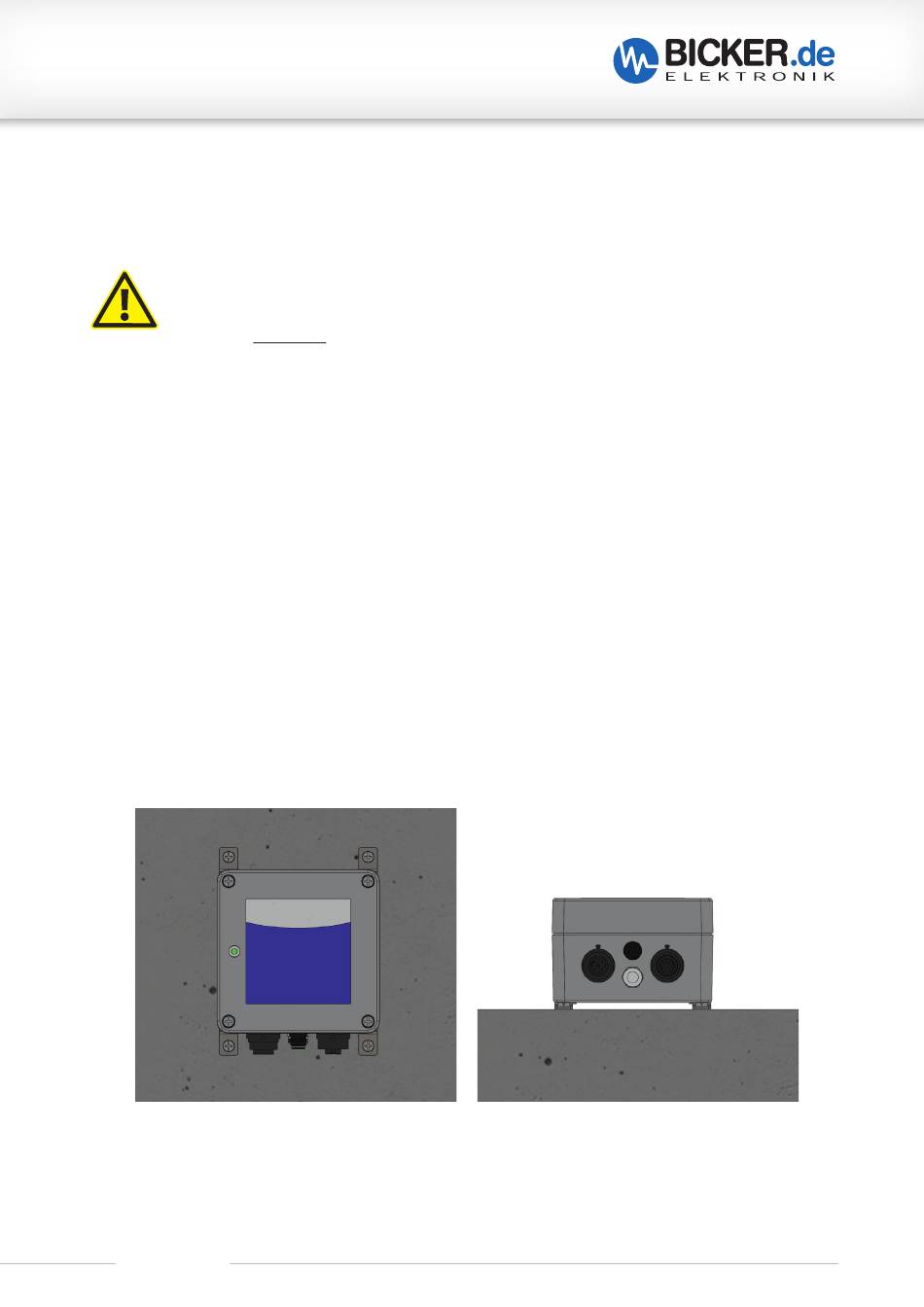

F2 Convection and installation position
It is recommended to mount the device vertically (on edge) or horizontally on a suitable wall or surface in
order to achieve the best possible convection. Another installation position should be avoided if possible, as
operation up to the highest ambient temperature can not be guaranteed. Although the device can basically be
operated without external air convection, care should still be taken to ensure that there is enough convection
around it so that the generated heat can be dissipated. Care should be taken not to install it in or at slim and
narrow places such as niches, corners, crevices or the like, as this can cause it to be heated by other sources or
devices and thus drastically reduce the service lifetime or errors and dangers can occur.
A distance of at least 100 mm (10 cm) in all directions from the housing wall to other, neighboring devices
should be maintained.
The devices comply with the IP protection class 65/67.
Revision 1
/ V
) of the UPS board as well
IN–
OUT–
