Steelcase Answer Beam Worksurface Manual page 8

®

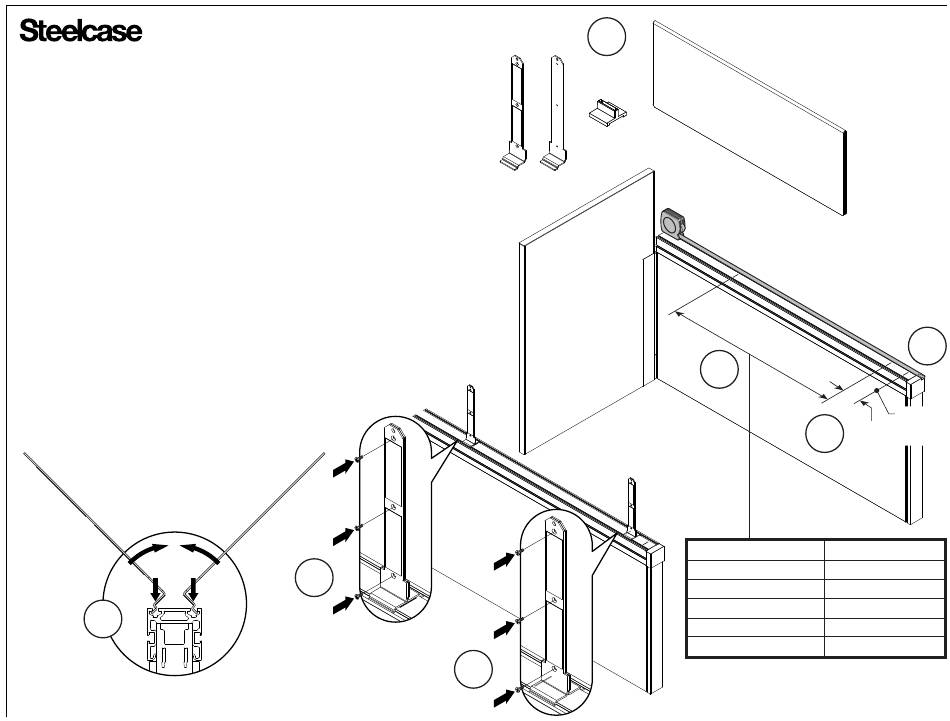

Phase 4 - Assembling a Screen to the Beam
1.
Inventory and stage all screens, decorative covers and screen stanchion
brackets.
2.
Determine the location of the end of the screen on the beam.
3.
Put a pencil line on the beam top cap at 5-1/2" from the end of the screen
location, and a second pencil line, per the charted dimension, from the first line.
NOTE: Two pair of stanchion brackets are required, with a pair consisting of one
bracket with a clearance hole and the other with a tapped hole.
4.
Align the inside surface of both stanchion brackets to the pencil lines and
swing stanchion brackets together. Secure with the three (3) 3/16" long flat head
bolts provided per stanchion bracket.
TIP: A spacer block between the two stanchion brackets
can be used as a positioning aid.
4
4
4
1
3
Screen Width (inches)
24
30
36
42
48
2
END OF
5-1/2"
SCREEN
3
LINE
Dimension (inches)
13
19
25
31
37
Page 8 of 12
78540 Rev A
