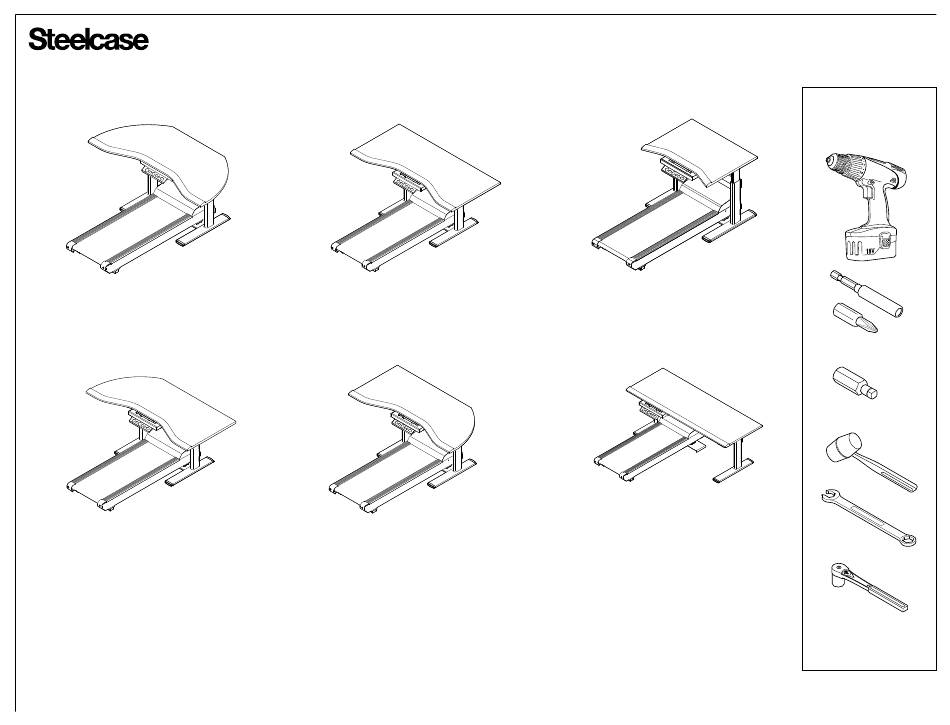

A7TG660606H
A7TG660632H
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2015 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
A7TR663232H
A7TG663206H
FitWork
Walkstation
™
Series 7 AdjusTable
A7TR383030H
A7TR782929H
Tools required:
#2 Phillips Bit
with Extension
#2 Square
Drive Bit
7/16"
10mm
Socket Wrench
Page 1 of 20
005720D Rev F
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase FitWork 7 Series
Summary of Contents for Steelcase FitWork 7 Series
- Page 1 A7TG663206H A7TR782929H 7/16" If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, 10mm Socket Wrench and the U.S.
-
Page 2: Top View
® Worksurface Assembly Once each lift column has been engaged, lightly tap each Note: A clean, abrasion free connection point with a rubber mallet 1/8-1/4 inch at a time, until surface will be necessary for completely seated. Do not completely install one lift column at a table assembly. - Page 3 ® Locate and install each attachment plate using 4mm hex head With the top still upside down on the floor, turn the base over fasteners provided. Tighten securely. (flipping is a 2 person job) and align the attachment plates to the pre-drilled holes in the top. Loosely install one phillips head fastener in each of the 4 corners of the attachment plate.
- Page 4 ® Remove four (4) screws on each foot. SCREWS Lower treadmill receiver onto legs and attach using four (4) screws on each leg. TREADMILL RECEIVER Page 4 of 20 005720D Rev F...
- Page 5 ® Route lifting column cables through the molded-in channels on Install control box in the predetermined the underside of the control box, and plug into ports 1 and 2. location, using pre-drilled holes. CONTROL BOX LIFTING COLUMN 1 CABLE NOT YET LIFTING COLUMN 2 CABLE POWER...
- Page 6 ® SLOT SHOULDER WASHER Locate pilot holes and place one (1) console mounting bracket assembly onto underside of worksurface. Attach bracket using three (3) screws (a). Slide console next to bracket and make sure threaded studs are inserted into slot (b). Slide other console mounting bracket next to console making sure holes in bracket are lined up with pilot holes on worksurface (c).
- Page 7 ® 5" Install the wire management cableway on the underside of the worksurface about 5" in front of the control box. Note: stretchers and cables not shown for clarity. WIRE MANAGER Connect the cables of each lift column. Route these cables in the wire management cableway.
- Page 8 ® CONTROL BOX CONTROLLER CABLE FROM CONSOLE Install the cable located on the back of the console into the control box as shown. Store extra cable length into wire manager. Plug the power cord into an outlet and check for binding. Then, lower to the bottom and unplug unit.
- Page 9 ® Carefully turn the table over (2 person operation). NOTE: Do NOT use either lift column as a brace when turning the table over as this may cause binding. The top must be lifted free, rotated and set down carefully. Install treadmill.
- Page 10 ® Locate back left of treadmill and plug in signal cable as indicated (a). Locate back center of console and plug in other end of signal cable as indicated (b). Plug the cord of the table and the treadmill into an outlet. Make sure treadmill is turned on (c). NOTE for (a) &...
- Page 11 ® Coordinating the Lifting Columns Prior to initial use of the height adjustment function you must "synchronize the system". Pull console forward. The installers who setup the worksurface may have already done so, but it's OK to repeat this function. Synchronize the System •...
- Page 12 Sit-to-Walkstation Worksurface Assembly ® PHILLIPS HEAD SCREW Repeat steps 1 through 6 on pages 2 and 3. With the top still upside down on the floor, turn the base over (flipping is a 2 person job) and align the attachment plates to the pre-drilled holes in the top. Loosely install one phillips head fastener in each of the 4 corners of the attachment plate.
- Page 13 ® Remove four (4) screws on one foot on the Lower treadmill receiver onto leg and side of the table where the treadmill will be attach using four (4) screws. installed. (left side installation shown). SIT-WALK TREADMILL RECEIVER SCREW SCREW Page 13 of 20 005720D Rev F...
- Page 14 ® Repeat steps 12 through 15 on pages 5, 6, & 7. Install the controller to the underside of the worksurface towards the middle of the worksurface as shown. Page 14 of 20 005720D Rev F...
- Page 15 ® Install the wire keepers for the control wire. Peel off paper backing and stick to worksurface. Place wire into each wire keeper. Repeat step 16 on page 8. WIRE KEEPER PAPER BACKING CONTROL WIRE Page 15 of 20 005720D Rev F...
- Page 16 ® Carefully turn the table over (2 person operation). NOTE: DO NOT use either lift column as a brace when turning the table over as this may cause binding. The top must be lifted free, rotated and set down carefully. Page 16 of 20 005720D Rev F...
- Page 17 ® Install treadmill. Align treadmill with unit as shown. Make sure the two (2) treadmill feet are inserted into the two (2) holes in the treadmill receiver. NOTE: The holes in the treadmill receiver are for the treadmill feet, not the treadmill wheels. Plug in cable from back of treadmill to back of console as shown on step 19 on page 10.
- Page 18 ® Coordinating the Lifting Columns Prior to initial use of the height adjustment function you must "synchronize the system". The installers who setup the worksurface may have already done so, but it's OK to Pull console forward. repeat this function. Synchronize the System •...
-
Page 19: Guidelines On Moving The Table
® Guidelines on Moving the Table When possible, the tables should be moved in a horizontal (flat) position. If the table must be moved vertically (i.e. standing on a pallet), care must be taken to ensure no side pressure is placed on any of the legs as it is tipped into position, during transport, and when tipped off the pallet at the FOOT new location. -
Page 20: Wiring Guide
® Wiring Guide When connecting cables as stated in step 15 on page 7, use this guide as a reference. FOOT Connect the cables from the Lift Columns to the cables provided. The other end should be connected to the Control GLIDES Box.
