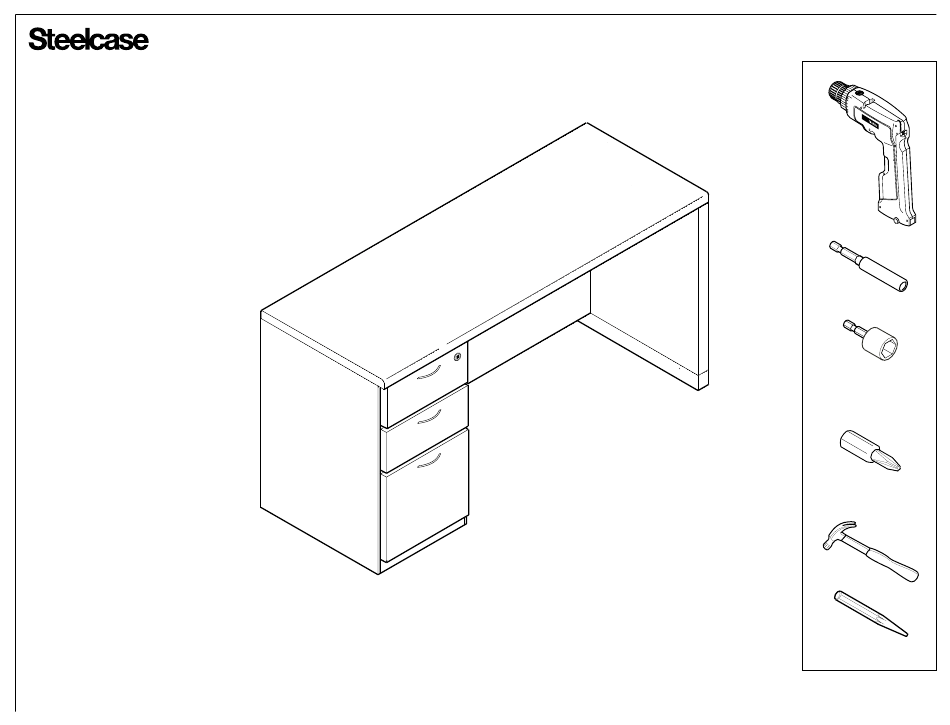

Avenir
™
KD Desk
®
3/8" HEX
SOCKET
#2 PHILLIPS BIT
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2013 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 6
U.S.A.
939503323 Rev B
Printed in U.S.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Avenir KD Desk
Summary of Contents for Steelcase Avenir KD Desk
- Page 1 SOCKET #2 PHILLIPS BIT If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
- Page 2 ® Panel Installation END PANEL Flip the worksurface over onto a clean, non-abrasive MODESTY PANEL surface. Position end panel on worksurface, Ensure end panel is flush at front and end. Align mounting holes to pre-drilled holes in worksurface and attach with hardware supplied .
- Page 3 Drawer Removal Push drawer rails back into pedestal. Pull drawer forward. Remove remaining drawers. Push on tab on each side of the TIP: Mark all drawers so they can be drawer rails. easily re-installed in their original positions. Remove drawer completely. Page 3 of 6 939503323 Rev B...
- Page 4 ® Pedestal Installation Flip the ped over onto the worksurface and align. It should be flush to the side of the worksurface and 1” from the front of the worksurface. Secure the pedestal to the worksurface with four (4) 1/4-14 x 1" wood tapping screws. 1”...
- Page 5 ® Pedestal Installation Attach the pedestal to the modesty panel. Note the distance between the back of the modesty panel and the back of the worksurface is 1-1/4”. Attach modesty panel to the worksurface. Page 5 of 6 939503323 Rev B...
- Page 6 ® Place Desk Upright Rotate desk upright. Be sure to rotate the modesty panel to the floor and then rotate into the upright position. IMPORTANT: DO NOT rotate desk towards the pedestal frame or tip desk on end to minimize twist in desk. NOTE: This will require two (2) people.
